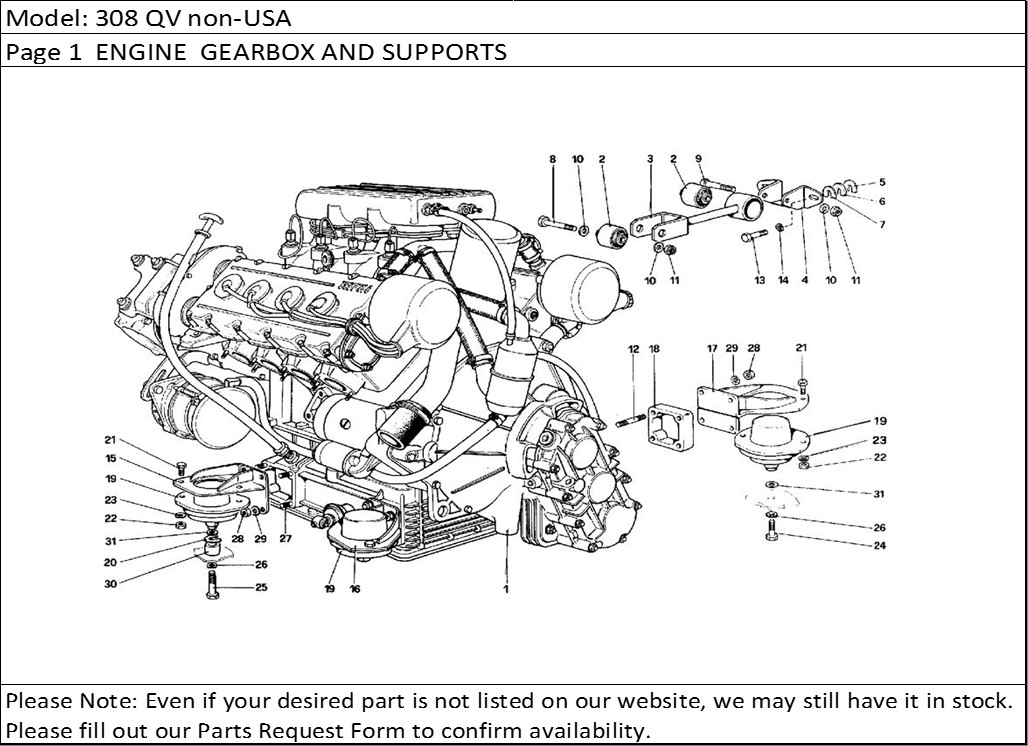

308 QV non-USA Page 1 ENGINE GEARBOX AND SUPPORTS
Product Description
308 QV non-USA Page 1 ENGINE GEARBOX AND SUPPORTS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | - | Propelling unit with gearbox and differentialSee table A for spare assembly units | 1 |
| 2 | 106418 | Buffer for link | 2 |
| 3 | 111888 | Reaction tie rod | 1 |
| 4 | 106469 | Tie rod support | 1 |
| 5 | 106470 | Shim 1mmPosible mounting | 1 |
| 6 | 106471 | Shim 2mmPossible mounting | 1 |
| 7 | 106472 | Shim | 2 |
| 8 | 15541321 | Bolt | 1 |
| 9 | 15541321 | Bolt | 1 |
| 10 | 13550521 | Washer | 2 |
| 11 | 16105111 | Nut | 2 |
| 12 | 13450021 | Rear Nut | 8 |
| 13 | 13830521 | Bolt | 2 |
| 14 | 12638621 | Washer | 2 |
| 15 | 107528 | Rear right support | 1 |
| 15 | 107529 | Front right support | 1 |
| 16 | 115712 | Front left support | 1 |
| 17 | 115713 | Rear left support | 1 |
| 18 | 107530 | Spacer for rear supports | 2 |
| 19 | 106034 | VIBRACHIOC front pad | 4 |
| 20 | 106029 | ShimPossible mounting | 1 |
| 21 | 16043421 | Bolt | 8 |
| 22 | 16100811 | Nut | 8 |
| 23 | 106852 | Washer | 8 |
| 24 | 106527 | Screw for rear pads | 2 |
| 25 | 105799 | screw for front pads | 2 |
| 26 | 106854 | Washer | 4 |
| 27 | 13449321 | Front stud | 8 |
| 28 | 12164711 | Nut | 16 |
| 29 | 106853 | Washer | 16 |
| 30 | 107424 | Spacer for front pads Up to 31 - 5 - 83 | 2 |
| 30 | 120978 | Spacer for front pads From 1 - 6 - 83 | 2 |
| 31 | 12646901 | Shim | 6 |
| 32 | 111794 | Spacer for rear pads | 2 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
