308 QV non-USA Page 3 CRANKSHAFT CONNECTING RODS AND PISTONS
Product Description

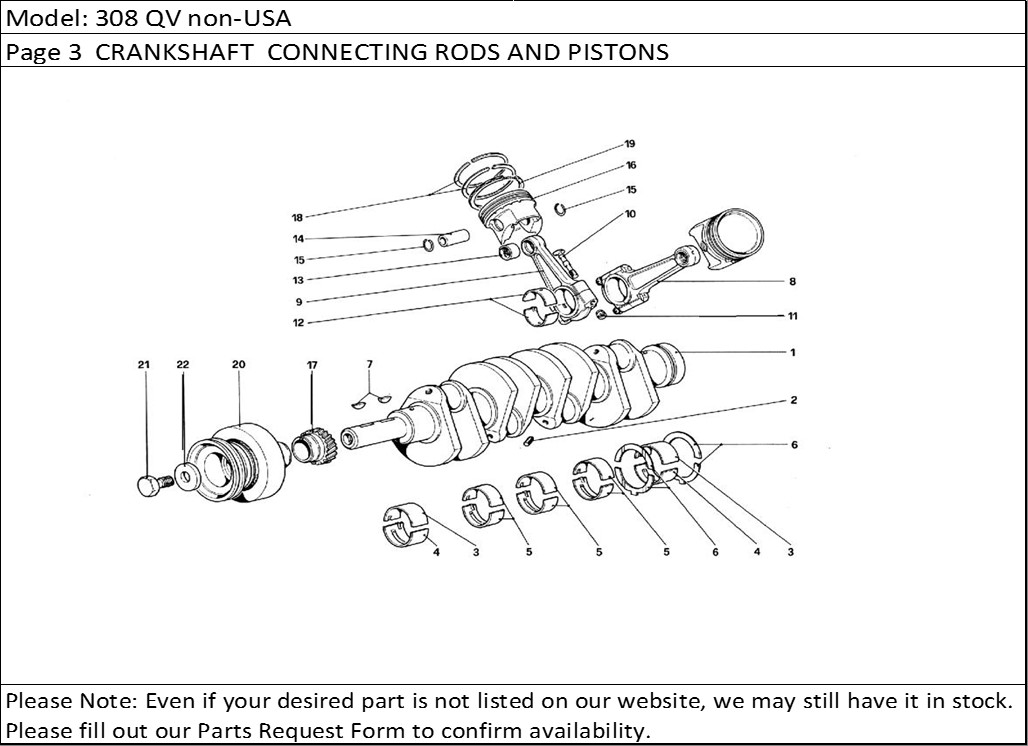

308 QV non-USA Page 3 CRANKSHAFT CONNECTING RODS AND PISTONS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 105623 | Crankshaft | 1 |
| 2 | 14326150 | Plug | 8 |
| 3 | 100120 | Upper half bearing2nd undersize 0,508 mm on F | 2 |
| 3 | 100119 | Upper half bearing1st undersize 0,254 mm on F | 2 |
| 4 | 100122 | Lower half bearing | 2 |
| 4 | 100123 | Lower half bearing1st undersize 0,254 mm on F | 2 |
| 4 | 100124 | Lower half bearing2nd undersize 0,508 mm on F | 2 |
| 5 | 104025 | Half bearing, central and intermediate2nd undersize 0,508 mm on F | 6 |
| 5 | 104024 | Half bearing, central and intermediate1st undersize 0,254 mm on F | 6 |
| 5 | 104023 | Half bearing, central and intermediateHalf bearing, upper and lower | 6 |
| 6 | 100146 | ShimFor rear support | 2 |
| 6 | 100147 | Shim2nd oversize 0,25 mm | 2 |
| 6 | 113984 | Shim1st oversize 0,217 mm | 2 |
| 7 | 10206020 | Tongue | 2 |
| 8 | 109738 | Connecting rod, complete | 8 |
| 9 | 109688 | Connecting rod and capWith assembly n.109738 | 8 |
| 10 | 100156 | Bolt securing con. rod | 16 |
| 11 | 104011 | Nut for con. rod bolt | 16 |
| 12 | 100152 | Con. rod half bearing2nd undersize 0,508 mm on F | 16 |
| 12 | 100151 | Con. rod half bearing1st undersize 0,254 mm on F | 16 |
| 12 | 100150 | Con. rod half bearing | 16 |
| 13 | 107100 | Bush for gudgeon pinOn exhaustion n. 100155 | 8 |
| 14 | 119537 | Gudgeon pinFor Mahle piston | 8 |
| 14 | 104487 | Gudgeon pin for Borgo piston | 8 |
| 15 | 100174 | Ring for gudgeon pin | 16 |
| 16 | 119533 | Piston with ring (Mahle) | 8 |
| 16 | 123712 | Piston with ring (Borgo) | 8 |
| 17 | 117655 | Driving sprocket for timing system | 1 |
| 18 | 119539 | Set of piston ringsFor Mahle piston | 1 |
| 18 | 119534 | AC conical seal ring (1st - 2nd groove)With complete set n. 119539 | 16 |
| 18 | 123710 | AC conical seal ring (1st - 2nd groove)With complete set n. 123714 | 16 |
| 19 | 119535 | ROF scraper ring with spring (3td groove)With complete set n.119539 | 8 |
| 19 | 123711 | ROF scraper ring with spring (3td groove)With complete set n. 123714 | 8 |
| 19 | 123714 | Set of piston ringsFor Borgo piston | 1 |
| 20 | 122869 | Torsion damper with pulleyWith Sankyo compressor | 1 |
| 20 | 105160 | Torsion damper and pulleyAssembly with single belt | 1 |
| 21 | 100476 | Screw | 1 |
| 22 | 102755 | Washer | 1 |
