308 QV non-USA Page 7 TIMING SYSTEM TAPPETS
Product Description
308 QV non-USA Page 7 TIMING SYSTEM TAPPETS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

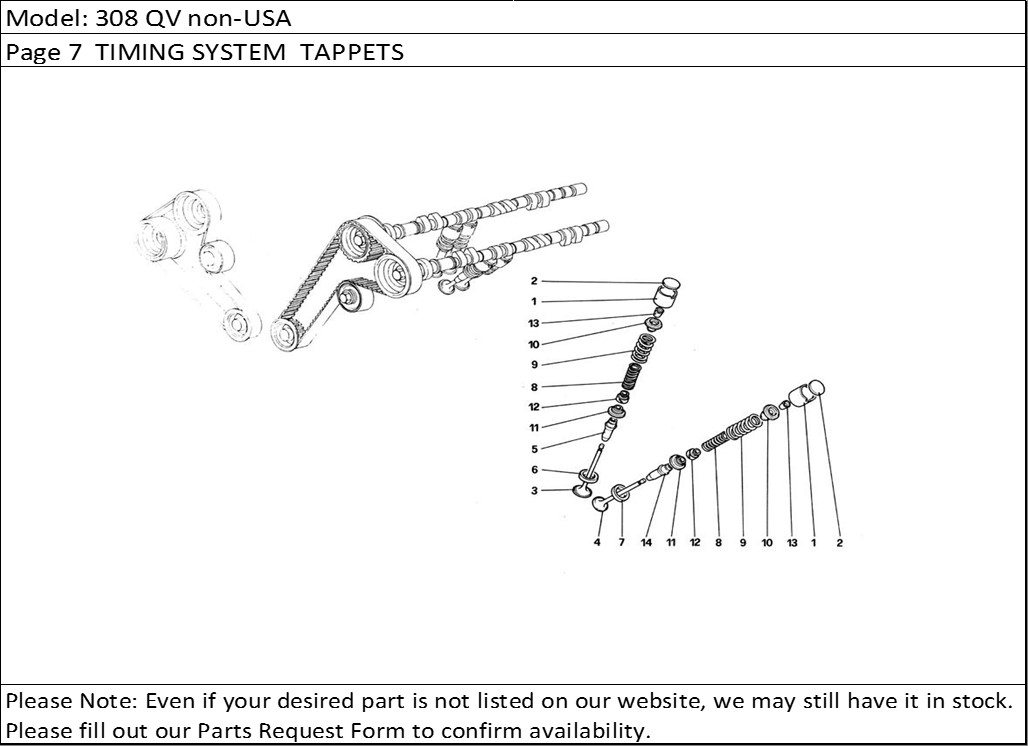

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 117562 | Tappet for valve control | 32 |
| 2 | 117576 | Shim for valve adjustingThickness 3,60 mm | 32 |
| 2 | 117580 | Shim for valve adjustingThickness 3,80 mm | 32 |
| 2 | 117579 | Shim for valve adjustingThickness 3,75 mm | 32 |
| 2 | 117569 | Shim for valve adjustingThickness 3,25 mm | 32 |
| 2 | 117570 | Shim for valve adjustingThickness 3,30 mm | 32 |
| 2 | 117571 | Shim for valve adjustingThickness 3,35 mm | 32 |
| 2 | 117572 | Shim for valve adjustingThickness 3,40 mm | 32 |
| 2 | 117575 | Shim for valve adjustingThickness 3,55 mm | 32 |
| 2 | 117593 | Shim for valve adjustingThickness 4,45 mm | 32 |
| 2 | 117577 | Shim for valve adjustingThickness 3,65 mm | 32 |
| 2 | 117589 | Shim for valve adjustingThickness 4,25 mm | 32 |
| 2 | 117590 | Shim for valve adjustingThickness 4,30 mm | 32 |
| 2 | 117573 | Shim for valve adjustingThickness 3,45 mm | 32 |
| 2 | 117596 | Shim for valve adjustingThickness 4,60 mm | 32 |
| 2 | 117595 | Shim for valve adjustingThickness 4,55 mm | 32 |
| 2 | 117588 | Shim for valve adjustingThickness 4,20 mm | 32 |
| 2 | 117574 | Shim for valve adjustingThickness 3,50 mm | 32 |
| 2 | 117586 | Shim for valve adjustingThickness 4,10 mm | 32 |
| 2 | 117585 | Shim for valve adjustingThickness 4,05 mm | 32 |
| 2 | 117587 | Shim for valve adjustingThickness 4,15 mm | 32 |
| 2 | 117594 | Shim for valve adjustingThickness 4,50 mm | 32 |
| 2 | 117591 | Shim for valve adjustingThickness 4,35 mm | 32 |
| 2 | 117592 | Shim for valve adjustingThickness 4,40 mm | 32 |
| 2 | 117582 | Shim for valve adjustingThickness 3,90 mm | 32 |
| 2 | 117578 | Shim for valve adjustingThickness 3,70 mm | 32 |
| 2 | 117581 | Shim for valve adjustingThickness 3,85 mm | 32 |
| 2 | 117583 | Shim for valve adjustingThickness 3,95 mm | 32 |
| 2 | 117584 | Shim for valve adjustingThickness 4,00 mm | 32 |
| 3 | 117363 | Intake valve | 16 |
| 4 | 117364 | Exhaust valve | 16 |
| 5 | 117564 | Intake valve guideOversized of 0,2 mm | 16 |
| 5 | 117563 | Intake valve guide | 16 |
| 6 | 111294 | Intake valve seatOn exhaustion use no. 125768 | 16 |
| 7 | 119171 | Exhaust valve seat | 16 |
| 8 | 117558 | Inner spring for valve return | 32 |
| 9 | 117559 | Outer spring for valve return | 32 |
| 10 | 117567 | Upper cup for retaining spring | 32 |
| 11 | 117568 | Lower cup for retaining spring | 32 |
| 12 | 119051 | Oil retainer on valve guide | 32 |
| 13 | 117283 | Keeper | 64 |
| 14 | 117566 | Exhaust valve guideOversized of 0,2 mm | 16 |
| 14 | 117565 | Exhaust valve guide | 16 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
