308 QV non-USA Page 8 TIMING SYSTEM CONTROLS
Product Description

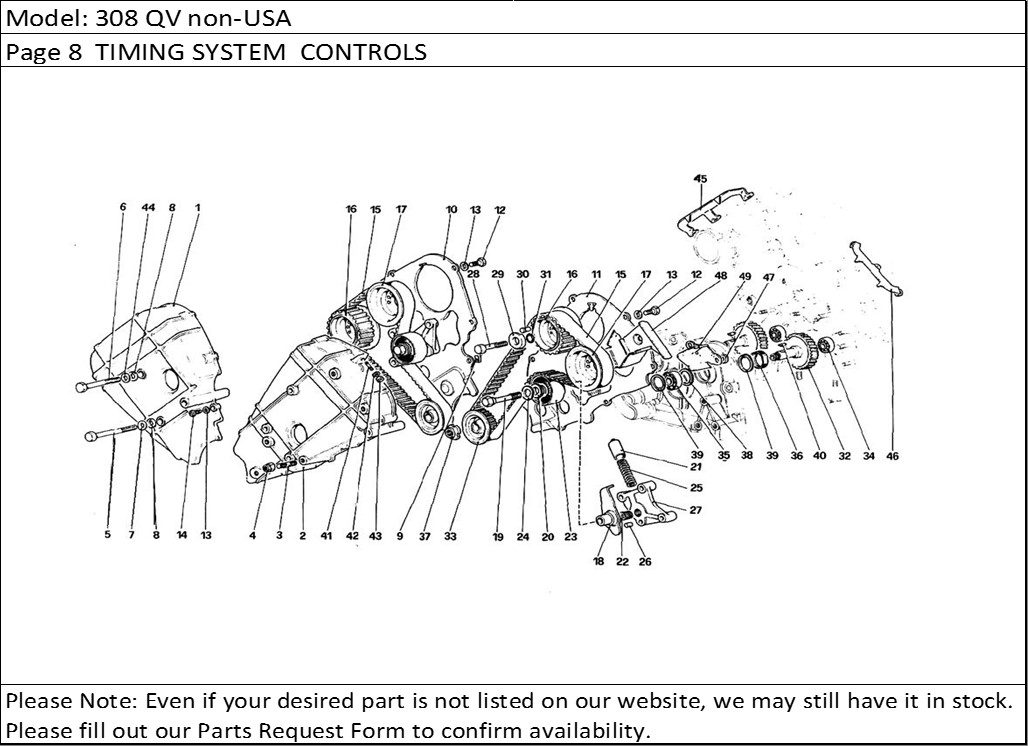

308 QV non-USA Page 8 TIMING SYSTEM CONTROLS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 117350 | Right coverAssembly with single belt | 1 |
| 1 | 121653 | Right coverAssembly with two individual belt | 1 |
| 2 | 123697 | Left coverWith assembly no. 124681 (For Sankyo compressor) | 1 |
| 2 | 117351 | Left coverWith assembly no. 117438 (For ASPERA compressor) | 1 |
| 2 | 117438 | Left cover, complete | 1 |
| 2 | 124681 | Left cover, complete | 1 |
| 3 | 13546221 | Stud | 1 |
| 4 | 13598021 | Nut | 1 |
| 5 | 111668 | ScrewFor cover no. 117350 | 2 |
| 5 | 121660 | ScrewFor cover no. 121653 | 2 |
| 6 | 109013 | Screw | 1 |
| 7 | 12638601 | WasherWith two individual belts q = 2 | 3 |
| 8 | 106853 | Washer | 3 |
| 9 | 60793500 | Spring clipUp to engine no. 2187 | 1 |
| 10 | 117628 | Protection right beltUp to engine no. 2187 | 1 |
| 11 | 117627 | Protection left beltUp to engine no. 2187 | 1 |
| 12 | 10977711 | Screw | 12 |
| 13 | 12601171 | Washer | 13 |
| 14 | 15688502 | Screw | 1 |
| 15 | 111334 | Timing belt | 2 |
| 16 | 113097 | Driver gear | 2 |
| 17 | 113098 | Driver gear | 2 |
| 18 | 117256 | Belt stretcher plate | 2 |
| 19 | 111458 | Screw | 2 |
| 20 | 111460 | Spacer | 2 |
| 21 | 102819 | Pin | 2 |
| 22 | 13524670 | Heli - coil | 2 |
| 23 | 105206 | Belt idler ring | 2 |
| 24 | 102824 | Washer | 2 |
| 25 | 104148 | Spring | 2 |
| 26 | 125712 | Dowel pin | 2 |
| 27 | 118152 | Support for right belt stretcher | 1 |
| 27 | 118153 | Support for left belt stretcher | 1 |
| 28 | 16326431 | Screw | 4 |
| 29 | 117274 | Washer | 4 |
| 30 | 106203 | Dowel pin | 4 |
| 31 | 114808 | Sealing ring | 4 |
| 32 | 117656 | Drive gear for distributing shaftsFor crankcase no. 117598 | 2 |
| 32 | 121272 | Drive gear for distributing shaftsFor crankcase no. 121286 | 2 |
| 33 | 121273 | Driving pulleyFor crankcase no. 121286 | 2 |
| 33 | 112018 | Driving pulleyFor crankcase no. 117598 | 2 |
| 34 | 121275 | Bearing for crankcase dia. 37 mmFor crankcase no. 121286 | 2 |
| 34 | 104918 | Bearing for crankcase dia. 32 mmFor crankcase no. 117598 | 2 |
| 35 | 121274 | Bearing (dia. 44 mm) on front coverFor crankcase no. 121386 | 2 |
| 35 | 112019 | Bearing (dia. 40 mm) on front coverFor crankcase no. 117598 | 2 |
| 36 | 117276 | Oil retainingFor crankcase no.117598 | 2 |
| 36 | 121276 | Oil retainingfor crankcase no. 121286 | 2 |
| 37 | 104019 | Lock nut | 2 |
| 38 | 121279 | WasherFor crankcase no. 121286 | 2 |
| 38 | 104915 | WasherFor crankcase no. 117598 | 2 |
| 39 | 11059975 | SeegerFor crankcase no. 117598 | 4 |
| 39 | 121277 | SeegerFor crankcase no. 121286 | 4 |
| 40 | 10206320 | Tongue | 2 |
| 41 | 11500121 | StudFor cover 123697 use no. 10902011 | 1 |
| 42 | 12644421 | WasherFor cover 123697 use no. 12601271 | 1 |
| 43 | 12574211 | Nut | 1 |
| 44 | 105391 | WasherAssembly with 2 individual belts | 1 |
| 45 | 125109 | Timing reference plate right cylinder headFrom engine no. 2188 | 1 |
| 46 | 125110 | Timing reference plate left cylinder headFrom engine no. 2188 | 1 |
| 47 | 124946 | SpacerFor p. no. 125109 - 125110 | 4 |
| 48 | 125114 | Protection plate for right beltFrom engine no. 2188 | 1 |
| 49 | 125115 | Protection plate for left beltFrom engine no. 2188 | 1 |
