308 QV non-USA Page 9 FUEL PUMP AND PIPES
Product Description

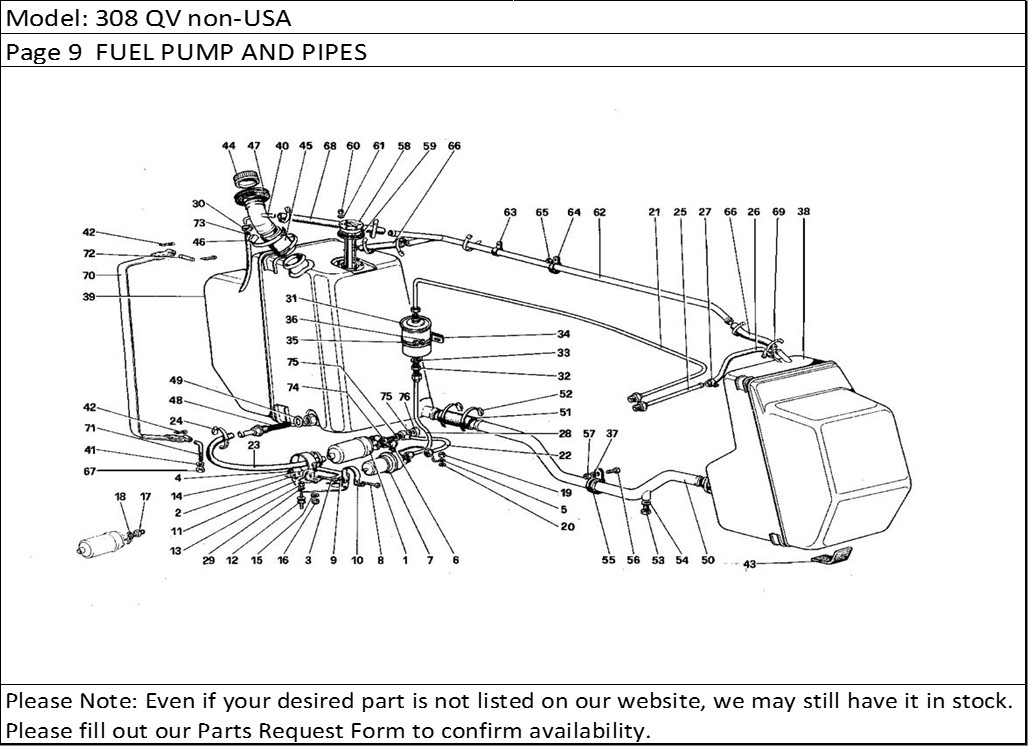

308 QV non-USA Page 9 FUEL PUMP AND PIPES
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 113976 | Fuel pumpUp to car no. 49601 | 1 |
| 1 | 121727 | Fuel pumpFrom car no.49603 | 1 |
| 2 | 113673 | Pump strap | 1 |
| 3 | 10377311 | Screw | 1 |
| 4 | 14089311 | Nut | 1 |
| 5 | 115153 | Earth cable | 1 |
| 6 | 107003 | Rubber boot | 2 |
| 7 | 113978 | Accumulator | 1 |
| 8 | 10376111 | Screw | 1 |
| 9 | 14089311 | Nut | 1 |
| 10 | 113674 | Strap | 1 |
| 11 | 115513 | Suppoert for pump and accumulator | 1 |
| 12 | 102947 | Pad | 3 |
| 13 | 12574211 | Nut | 5 |
| 14 | 10902121 | Screw | 4 |
| 15 | 10519421 | Washer | 2 |
| 16 | 12574211 | Nut | 4 |
| 17 | 109797 | Fitting With pump no.113976 | 1 |
| 18 | 113910 | GasketWith pump no.113976 | 1 |
| 19 | 15896211 | Nut | 1 |
| 20 | 10571570 | Washer | 1 |
| 21 | 118610 | Pipe, filter to metering adviceOn exhaustion no. 116571 | 1 |
| 22 | 115532 | Pipe, pump to accumulatorWith pump no. 113976 | 1 |
| 22 | 119305 | Pipe, pump to accumulatorWith pump no. 121 727 | 1 |
| 23 | 119281 | Pipe, filter to pump | 1 |
| 24 | 12179590 | Strap | 2 |
| 25 | 118580 | Return pipe | 1 |
| 26 | 116767 | Pipe | 1 |
| 27 | 12179490 | Strap | 2 |
| 28 | 119278 | Pipe, accumulator to filter | 1 |
| 29 | 10519401 | Washer | 1 |
| 30 | 101296 | Strap | 1 |
| 31 | 115738 | Fuel filter | 1 |
| 31 | 178647 | Fuel FilterUse on Exhaustion of 115738 | 2 |
| 32 | 109797 | Union | 1 |
| 33 | 113910 | Gasket | 1 |
| 34 | 115140 | Bracket for filter | 1 |
| 35 | 12574521 | Nut | 1 |
| 36 | 13550401 | Washer | 1 |
| 37 | 12643701 | Washer | 1 |
| 38 | 114605 | R.H. tank | 1 |
| 39 | 121318 | L.H. tankUp to 1 - 5 -84 | 1 |
| 39 | 119015 | L.H. tankUp to 30 - 4 - 84 | 1 |
| 40 | 109321 | Fuel filter | 1 |
| 41 | 13605711 | SpacerPossible fitting | 1 |
| 42 | 10796401 | Split pin | 6 |
| 43 | 107889 | Shim for tank | 10 |
| 44 | 113401 | Fuel filler plug | 1 |
| 45 | 114282 | SleeveOn exhaustion use no. 117618 | 1 |
| 46 | 12174790 | Strap | 2 |
| 47 | 101465 | Gasket | 1 |
| 48 | 116870 | Filter | 1 |
| 49 | 117884 | Gasket | 1 |
| 50 | 115482 | Pipe, tanks connection | 1 |
| 51 | 114277 | Sleeve | 2 |
| 52 | 12173890 | Strap | 4 |
| 53 | 10300771 | Drain plug | 1 |
| 54 | 10278650 | Gasket | 1 |
| 55 | 106195 | Strap for pipe | 1 |
| 56 | 10902121 | Screw | 1 |
| 57 | 12574211 | Nut | 1 |
| 58 | 108664 | Level gauge control | 1 |
| 59 | 101462 | Gasket | 1 |
| 60 | 10794011 | Nut | 6 |
| 61 | 106848 | Washer | 6 |
| 62 | 108521 | Breather pipe | 1 |
| 63 | 10450490 | Strap | 1 |
| 64 | 10441590 | Strap | 3 |
| 65 | 12574211 | Nut | 3 |
| 66 | 109353 | Pipe | 2 |
| 67 | 16104111 | Nut | 2 |
| 68 | 109354 | Pipe | 1 |
| 69 | 12179590 | Strap | 6 |
| 70 | 106667 | Vertical band for tanks | 2 |
| 71 | 12311271 | Tie rod | 2 |
| 72 | 103447 | Pin | 2 |
| 73 | 106666 | Pipe | 1 |
| 74 | 120098 | Non return valveWith pump no. 121727 | 1 |
| 75 | 11270160 | GasketWith pump no. 121727 | 2 |
| 76 | 10183217 | PlugWith pump no. 121728 | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
