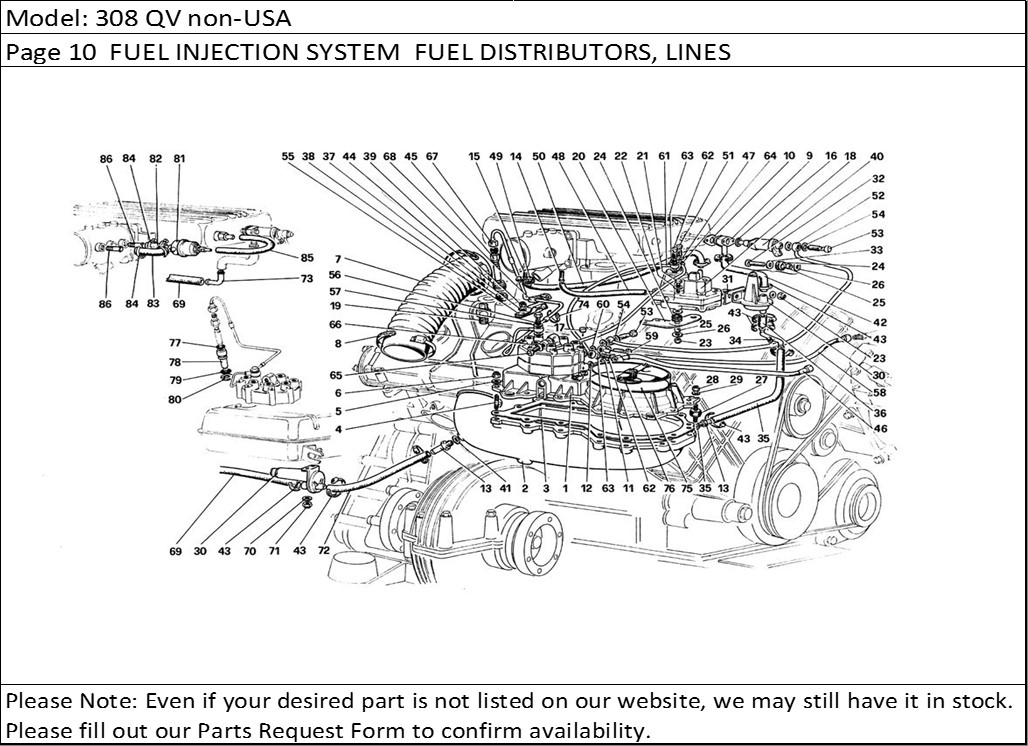

308 QV non-USA Page 10 FUEL INJECTION SYSTEM FUEL DISTRIBUTORS, LINES
Product Description
308 QV non-USA Page 10 FUEL INJECTION SYSTEM FUEL DISTRIBUTORS, LINES
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 115329 | Metering device | 1 |
| 2 | 120361 | Support for metering device, completeFrom chassis no. 44159 GS - 43961 GD | 1 |
| 2 | 115219 | Support for metering deviceWith unit no. 118070 | 1 |
| 2 | 120261 | Support for metering deviceWith assembly no. 120361 | 1 |
| 2 | 118070 | Support for metering device, completeTo chassis no. 44157 GS - 53959 GD | 1 |
| 3 | 115011 | Gasket | 1 |
| 4 | 13541121 | Stud | 15 |
| 5 | 12601271 | Washer | 15 |
| 6 | 12574211 | Nut | 15 |
| 7 | 118310 | Pipe from supportThrottle valve body | 1 |
| 8 | 12174990 | Clamp | 2 |
| 9 | 115004 | Union | 1 |
| 10 | 115005 | Gasket | 1 |
| 11 | 115498 | Union with filter | 1 |
| 12 | 11270160 | Gasket | 1 |
| 13 | 116860 | Threaded union | 1 |
| 14 | 113637 | Threaded union | 1 |
| 15 | 113652 | Threaded union | 1 |
| 16 | 103039 | Sealing ring | 1 |
| 16 | 116757 | Fuel recovery pipe | 1 |
| 17 | 115650 | Inviolability cap | 1 |
| 18 | 119825 | Warm up regulatorFrom engine no. 728 and for CH | 1 |
| 18 | 118585 | Warm up regulatorTo engine no. 727, CH excluded | 1 |
| 19 | 113980 | Time thermal switchFor CH use no. 118790 | 1 |
| 20 | 118291 | Support | 1 |
| 21 | 10903821 | Screw | 2 |
| 22 | 12604271 | Washer | 2 |
| 23 | 12574211 | Nut | 1 |
| 24 | 103549 | Grommet | 1 |
| 25 | 103550 | Spacer | 1 |
| 26 | 12643701 | Washer | 1 |
| 27 | 102947 | Vibration damping support | 3 |
| 28 | 12575411 | Nut | 3 |
| 29 | 12601271 | Washer | 3 |
| 29 | 12640601 | Washer | 1 |
| 30 | 113974 | Additional air valveFor CH use no. 120222 | 1 |
| 31 | 118292 | SupportTo chassis no. 44157 GS - 43959 GD | 1 |
| 32 | 10902621 | ScrewTo chassis no. 44157 GS - 43959 GD | 1 |
| 33 | 12601271 | WasherTo chassis no. 44157 GS - 43959 GD | 2 |
| 34 | 116307 | PipeTo chassis no. 44157 GS - 43959 GD | 1 |
| 35 | 116306 | PipeTo chassis no. 44157 GS - 43959 GD | 1 |
| 36 | 115407 | PipeTo chassis no. 44157 GS - 43959 GD | 1 |
| 37 | 11197771 | Washer | 1 |
| 38 | 114661 | GrommetOn exhaustion use no. 113570 | 8 |
| 39 | 12575411 | Nut | 1 |
| 40 | 115739 | Auxiliary starting assembly | 1 |
| 41 | 10280060 | Gasket | 1 |
| 42 | 115226 | Pipe | 1 |
| 43 | 12179590 | Clamp | 6 |
| 44 | 114660 | Bush | 8 |
| 45 | 113975 | Injector | 8 |
| 46 | 117885 | Pipe from fuel tank | 1 |
| 47 | 10260160 | Gasket | 2 |
| 48 | 115002 | Pipe | 1 |
| 49 | 12179190 | Clamp | 2 |
| 50 | 118293 | Pipe | 1 |
| 51 | 113670 | Pipe union | 1 |
| 52 | 115753 | Pipe | 1 |
| 53 | 113664 | Pipe union | 2 |
| 54 | 14330260 | Washer | 4 |
| 55 | 115417 | Bracket for clamp | 1 |
| 56 | 113670 | Pipe union | 8 |
| 57 | 10260160 | Gasket | 16 |
| 58 | 118393 | Return pipeOn exhaustion use no. 117787 | 1 |
| 59 | 111644 | Union | 1 |
| 60 | 113910 | Gasket | 2 |
| 61 | 118398 | Return pipe from regulator | 1 |
| 62 | 113664 | Union | 2 |
| 63 | 14330260 | Gasket | 4 |
| 64 | 115507 | Delivery pipe to regulator | 1 |
| 65 | 113664 | Union | 1 |
| 66 | 14330260 | Gasket | 1 |
| 67 | 118594 | Pipe from metering device to cylinder 5 | 1 |
| 67 | 118596 | Pipe from metering device to cylinder 7 | 1 |
| 67 | 118597 | Pipe from metering device to cylinder 8 | 1 |
| 67 | 118590 | Pipe from metering device to cylinder 1 | 1 |
| 67 | 118595 | Pipe from metering device to cylinder 6 | 1 |
| 67 | 118593 | Pipe from metering device to cylinder 4 | 1 |
| 67 | 118592 | Pipe from metering device to cylinder 3 | 1 |
| 67 | 118591 | Pipe from metering device to cylinder 2 | 1 |
| 68 | 115418 | Support clamp4 pipes | 1 |
| 68 | 113896 | Support clamp3 pipes | 1 |
| 68 | 115595 | Support clamp4 pipes | 1 |
| 68 | 117279 | Support clamp | 2 |
| 69 | 120801 | Pipe | 1 |
| 70 | 12601271 | WasherFrom chassis no. 44159 GS - 43961 GD | 2 |
| 71 | 12574211 | NutFrom chassis no. 44159 GS - 43961 GD | 2 |
| 72 | 117548 | PipeFrom chassis no. 44159 GS - 43961 GD | 1 |
| 73 | 120188 | Union 90?From chassis no. 44159 GS - 43961 GD | 1 |
| 74 | 110381 | Clamp | 2 |
| 74 | 111193 | Clamp | 2 |
| 75 | 120812 | Air sensor plate | 1 |
| 76 | 120809 | WasherOnly for intake manifolds no. 123203 - 123204 | 1 |
| 77 | 113570 | Sealing ring | 8 |
| 78 | 113309 | Bush | 8 |
| 79 | 101031 | Sealing ring | 8 |
| 80 | 103226 | Seeger ringFor CH version only | 8 |
| 81 | 117646 | Valve for by - pass | 1 |
| 82 | 115230 | Pipe | 1 |
| 83 | 115227 | Pipe | 1 |
| 84 | 12179590 | Washer | 4 |
| 85 | 115149 | Pipe | 1 |
| 86 | 112030 | Fitting | 1 |
