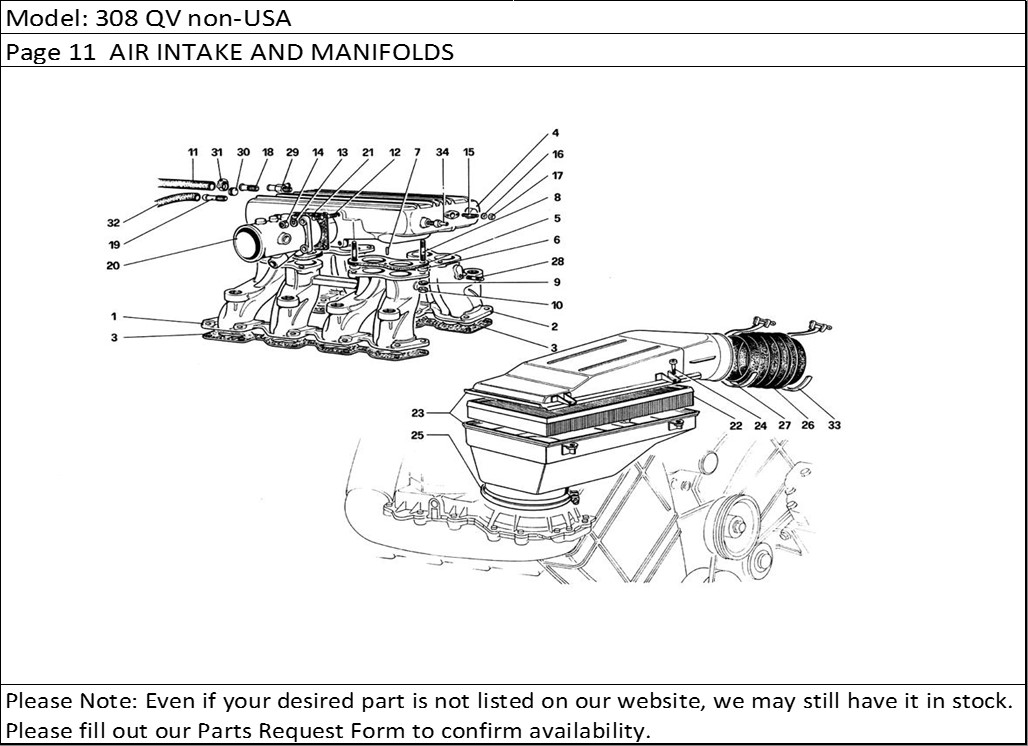

308 QV non-USA Page 11 AIR INTAKE AND MANIFOLDS
Product Description
308 QV non-USA Page 11 AIR INTAKE AND MANIFOLDS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 117499 | Intake manifold, rightFrom engine no.1847 use no. 123203 | 1 |
| 2 | 117500 | intake manifold, leftFrom engine no.1847 use no. 123204 | 1 |
| 3 | 117262 | Gasket | 2 |
| 4 | 118621 | Body for air delivery to manifoldsWith assembly no. 118739 | 1 |
| 4 | 118739 | Body, air delivery to manifolds, completeCH excluded | 1 |
| 4 | 120596 | Body, air delivery to manifolds, completeCH only | 1 |
| 5 | 114983 | Gasket | 4 |
| 6 | 114984 | Spacer | 8 |
| 7 | 10331111 | Centering dowel | 4 |
| 8 | 13543521 | Stud | 8 |
| 9 | 11198071 | Washer | 8 |
| 10 | 16100811 | Nut | 8 |
| 11 | 120232 | Rubber hose for servoBrake depression | 1 |
| 12 | 13541121 | Stud | 4 |
| 13 | 12601271 | Washer | 4 |
| 14 | 12574211 | Nut | 4 |
| 15 | 13541621 | Stud | 2 |
| 16 | 12601271 | Washer | 2 |
| 17 | 12574211 | Nut | 2 |
| 18 | 103870 | Nipple for intake servoBrake depression | 1 |
| 19 | 113652 | Nipple for depression on the central ignition station | 1 |
| 20 | 120590 | Throttle bodyWith assembly no. 120589 | 1 |
| 20 | 118361 | Throttle bodyWith assembly no. 118458 | 1 |
| 20 | 120589 | Complete throttle bodyCH only | 1 |
| 20 | 118458 | Complete throttle bodyCH excluded | 1 |
| 21 | 115038 | Gasket | 1 |
| 22 | 118006 | Cartridge | 1 |
| 23 | 118313 | Air inlet | 1 |
| 24 | 14305426 | Screw | 4 |
| 25 | 114996 | Clamp | 1 |
| 26 | 114019 | Sleeve | 1 |
| 27 | 10300190 | Clamp | 1 |
| 28 | 11500021 | Stud | 1 |
| 29 | 119465 | Nipple for blow by | 1 |
| 30 | 10269750 | Cap | 1 |
| 31 | 12179590 | Clamp | 1 |
| 32 | 115665 | Vacuum hose to digiplex | 1 |
| 33 | 10301890 | Clamp | 1 |
| 34 | 117286 | UnionCH only | 1 |
