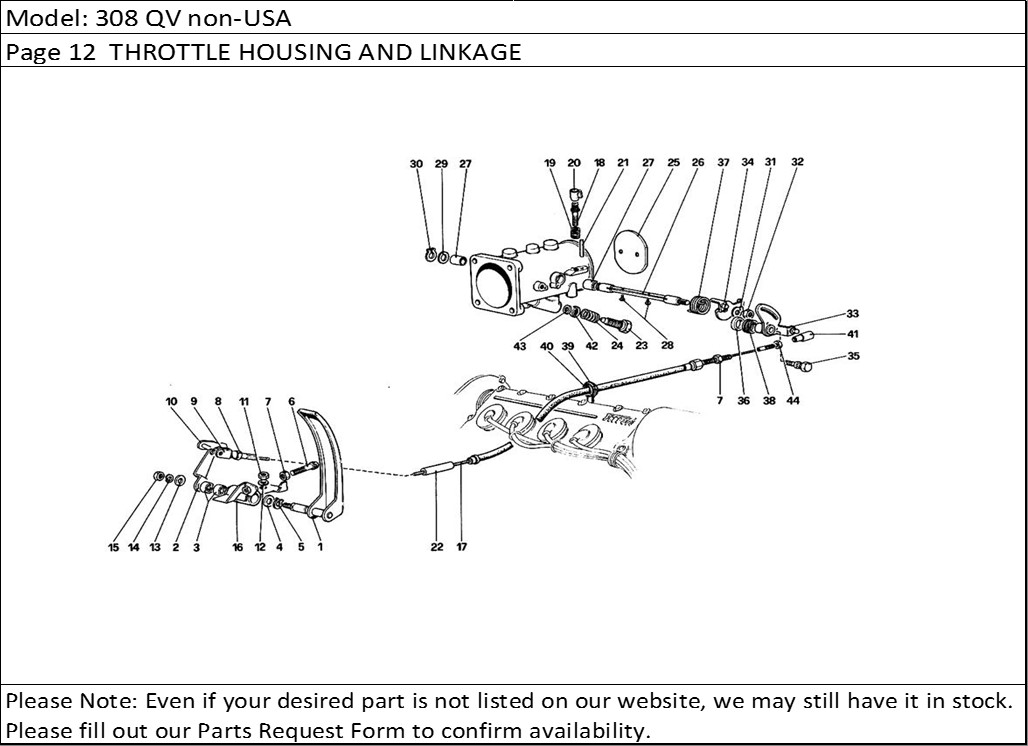

308 QV non-USA Page 12 THROTTLE HOUSING AND LINKAGE
Product Description
308 QV non-USA Page 12 THROTTLE HOUSING AND LINKAGE
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 115393 | Accelerator pedal | 1 |
| 2 | 115399 | Lever | 1 |
| 4 | 108576 | Shim | 1 |
| 5 | 11066076 | Seeger | 1 |
| 6 | 105232 | Adjusting screw | 1 |
| 7 | 16102311 | Nut | 2 |
| 8 | 10725911 | Locknut | 1 |
| 9 | 100655 | Fork | 1 |
| 10 | 100656 | Pin with strap | 1 |
| 11 | 16100811 | Nut | 2 |
| 12 | 1106852 | Washer | 2 |
| 13 | 10519601 | Spacer | 1 |
| 14 | 106852 | Washer | 1 |
| 15 | 16100811 | Nut | 1 |
| 16 | 115396 | Support for accelerator pedal | 1 |
| 17 | 120260 | Control cable for accelerator | 1 |
| 18 | 114366 | Adjust screw for throttle control lever | 1 |
| 19 | 107824 | Spring | 1 |
| 20 | 111182 | Inviolability cap | 1 |
| 21 | 114367 | Pin for cap | 1 |
| 22 | 120027 | Cable protectionFor RHD use no. 120499 | 1 |
| 23 | 113556 | Air adjusting screwFor CH use no. 119308 | 1 |
| 24 | 113571 | Spring | 1 |
| 25 | 114851 | Throttle | 1 |
| 26 | 114852 | Throttle spindle | 1 |
| 27 | 107443 | Bush | 2 |
| 28 | 115361 | Screw | 2 |
| 29 | 13550401 | Washer | 1 |
| 30 | 11065976 | Seeger | 1 |
| 31 | 113566 | Lock washer | 1 |
| 32 | 16102321 | Nut | 1 |
| 33 | 118296 | Throttle control lever | 1 |
| 34 | 115590 | Throttle adjust lever | 1 |
| 35 | 114863 | Lever pin | 1 |
| 36 | 114986 | Spacing washer | 1 |
| 37 | 115573 | Spring | 1 |
| 38 | 118294 | Spring | 1 |
| 39 | 118809 | Support plate for cable | 1 |
| 40 | 10396580 | Fair - lead | 1 |
| 41 | 105617 | Ball ring | 1 |
| 42 | 115204 | PlateCH only | 1 |
| 43 | 114919 | GrommetCH only | 1 |
| 44 | 15896411 | Nut | 1 |
