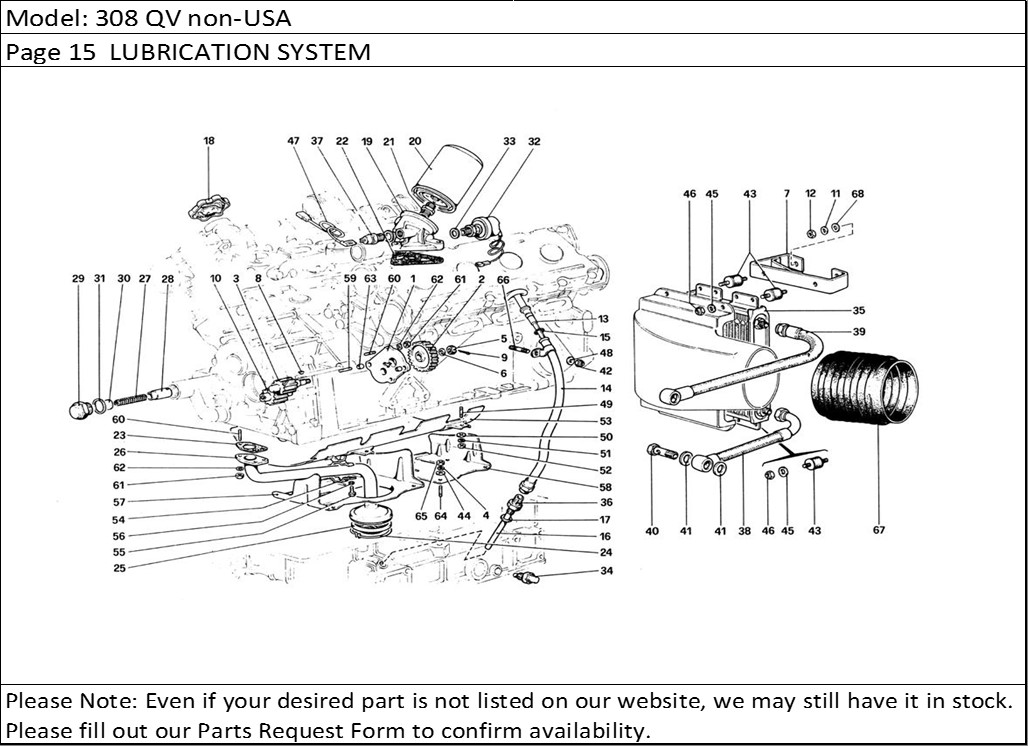

308 QV non-USA Page 15 LUBRICATION SYSTEM
Product Description
308 QV non-USA Page 15 LUBRICATION SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 109300 | Cover for oil pump | 1 |
| 2 | 117659 | Control gear | 1 |
| 4 | 106849 | Spring washer | 8 |
| 5 | 102900 | Nut | 1 |
| 6 | 11198570 | Washer | 1 |
| 7 | 114735 | Radiator support | 1 |
| 8 | 10205620 | Tongue | 1 |
| 9 | 10734301 | Split pin | 1 |
| 10 | 109308 | Driven gear | 1 |
| 11 | 10516671 | Washer | 2 |
| 12 | 16100811 | Nut | 2 |
| 13 | 105657 | Oil level rod | 1 |
| 14 | 120001 | Hose for level rod | 1 |
| 15 | 100317 | Sealing ring | 1 |
| 16 | 107868 | Pipe | 1 |
| 17 | 10259960 | Gasket | 1 |
| 18 | 103936 | Cap | 1 |
| 19 | 115655 | Filter base | 1 |
| 20 | 111782 | Oil cartridge | 1 |
| 21 | 100327 | Union | 1 |
| 22 | 106179 | Gasket | 1 |
| 23 | 103942 | Gasket | 1 |
| 24 | 103944 | Sealing ring | 1 |
| 25 | 100332 | Filter | 1 |
| 26 | 105998 | Suction pipe | 1 |
| 27 | 106900 | Spring for pressure adjusting valve | 1 |
| 28 | 106236 | Piston | 1 |
| 29 | 106237 | Plug | 1 |
| 30 | 106238 | Spacer | 1 |
| 31 | 10264660 | Gasket | 1 |
| 32 | 122592 | Transmitter | 1 |
| 33 | 10259960 | Gasket | 1 |
| 34 | 107576 | Thermistor | 1 |
| 35 | 106965 | Oil radiator | 1 |
| 36 | 102668 | Union | 1 |
| 37 | 110664 | Switch for oil pressure warning light | 1 |
| 38 | 114920 | Hose from cooler to crankcase | 1 |
| 39 | 110931 | Hose from cooler to filter support | 1 |
| 40 | 102302 | Union | 2 |
| 41 | 10279560 | Gasket | 2 |
| 42 | 12574211 | Selflocking nut | 1 |
| 43 | 102947 | Vibration damping support | 3 |
| 44 | 12638101 | Washer | 8 |
| 45 | 12643701 | Washer | 3 |
| 46 | 102741 | Nut | 3 |
| 47 | 112388 | Switch cable | 1 |
| 48 | 12644421 | Washer | 1 |
| 49 | 13516521 | Stud on crankcase | 4 |
| 50 | 10519601 | Washer | 4 |
| 51 | 10516671 | Split washer | 4 |
| 52 | 16102311 | Nut | 4 |
| 53 | 103929 | Upper protection plate | 1 |
| 54 | 103933 | Fixing bracket | 1 |
| 55 | 10977710 | Bolt | 2 |
| 56 | 11195471 | Washer | 2 |
| 57 | 107073 | Front lower bulkhead | 1 |
| 58 | 107074 | Rear lower bulkhead | 1 |
| 59 | 13541121 | Long stud | 2 |
| 60 | 13540821 | Short stud | 2 |
| 61 | 15896211 | Nut | 7 |
| 62 | 11197771 | Washer | 7 |
| 63 | 102725 | Dowel | 2 |
| 64 | 13539021 | Stud for protection | 8 |
| 65 | 15896411 | Nut | 8 |
| 66 | 11500121 | StudFor cover 123697 use no. 10902011 | 1 |
| 67 | 107533 | Bellows | 1 |
| 68 | 10280060 | Washer | 2 |
