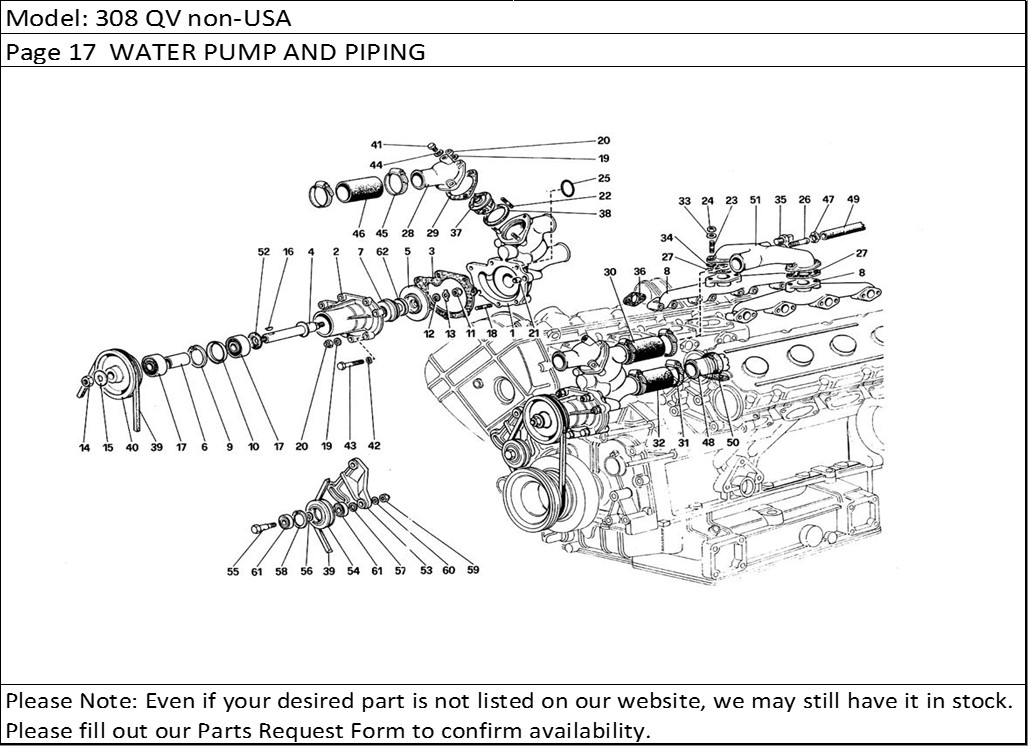

308 QV non-USA Page 17 WATER PUMP AND PIPING
Product Description
308 QV non-USA Page 17 WATER PUMP AND PIPING
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| - | 121255 | Water pump, complete (front)Up to engine no. 961 | 1 |
| - | 121255 | Water pump, completeFrom engine no. 962 to engine 1380 | 1 |
| - | 121255 | Water pump, completeFrom engine no. 1381 | 1 |
| - | 121255 | Water pump, complete (front)From engine no.1381 | 1 |
| - | 121255 | Water pump, complete (front)From engine no. 962 to engine 1381 | 1 |
| - | 121255 | Water pump, completeUp to engine no. 961 | 1 |
| - | 121255 | Water pump body, complete | 1 |
| 1 | 121255 | Water pump bodyWith assembly no. 115471 | 1 |
| 2 | 121255 | Pump coverWith assembly no. 121255 | 1 |
| 2 | 121255 | Pump coverWith assembly no. 116173 | 1 |
| 2 | 121255 | Pump coverWith assembly no. 121264 | 1 |
| 3 | 103952 | Gasket | 1 |
| 4 | 103795 | Spindle for pulleyFor water pump no. 115472 and 121265 | 1 |
| 4 | 121253 | Spindle for pulleyFor water pump no/121290 | 1 |
| 5 | 121254 | ImpellerFor water pump no. 121290 | 1 |
| 5 | 103806 | ImpellerFor water pump no.115472 | 1 |
| 6 | 116157 | Spacer | 1 |
| 7 | 120948 | Sealing ringFor water pump no. 121290 | 1 |
| 7 | 100433 | Sealing ringFor water pump no. 115472 and 121265 | 1 |
| 8 | 116967 | Manifold of output water to the hears | 2 |
| 9 | 11060076 | Seeger ring | 1 |
| 10 | 116158 | Washer | 1 |
| 11 | 100436 | Cap nut | 1 |
| 12 | 10730301 | Washer | 1 |
| 13 | 100434 | Plate | 1 |
| 14 | 16101521 | Nut | 1 |
| 15 | 11198671 | Conic washer | 1 |
| 16 | 10205820 | Tongue | 1 |
| 17 | 116159 | Bearing | 2 |
| 18 | 11500721 | Stud | 3 |
| 19 | 12601271 | Corrugated washer | 6 |
| 20 | 12574211 | Nut | 6 |
| 21 | 102704 | Dowel | 2 |
| 22 | 11500421 | Stud | 3 |
| 23 | 13516821 | Stud | 4 |
| 24 | 16100811 | Nut | 4 |
| 25 | 105196 | Sealing ring | 1 |
| 26 | 106241 | Union | 1 |
| 27 | 111481 | Gasket | 1 |
| 28 | 105165 | Water outlet union | 1 |
| 29 | 105189 | Gasket | 1 |
| 30 | 121258 | Sleeve | 1 |
| 31 | 12177090 | Clamp | 4 |
| 32 | 121259 | Sleeve | 1 |
| 33 | 11198071 | Washer | 4 |
| 34 | 103039 | Sealing ring | 4 |
| 35 | 104628 | Thermistor | 1 |
| 36 | 111480 | Gasket | 8 |
| 37 | 109671 | Thermostat | 1 |
| 38 | 105192 | Gasket | 1 |
| 39 | 107971 | Control belt for pump and altenatorSingle belt | 1 |
| 39 | 121655 | Control belt for water pump2 individual belts | 1 |
| 40 | 121654 | Pulley2 individual belts | 1 |
| 40 | 105166 | PulleySingle belt | 1 |
| 41 | 16042940 | Screw | 1 |
| 42 | 12601371 | Washer | 4 |
| 43 | 16044421 | Fixing screw for pump | 4 |
| 44 | 10260060 | Gasket | 1 |
| 45 | 12177090 | Clamp | 2 |
| 46 | 105190 | Sleeve | 1 |
| 47 | 12179490 | Clamp | 2 |
| 48 | 115136 | Tube | 1 |
| 49 | 122218 | Breather pipe | 1 |
| 50 | 107002 | Clamp for pipe | 1 |
| 51 | 116968 | Joint piping to manifolds of output water | 1 |
| 52 | 121263 | GasketFor cover no.121262 | 1 |
| 53 | 121658 | Support2 individual belts | 1 |
| 54 | 121659 | Pulley2 individual belts | 1 |
| 55 | 105048 | Pin2 individual belts | 1 |
| 56 | 107841 | Spacer2 individual belts | 1 |
| 57 | 107842 | Spacer2 individual belts | 1 |
| 58 | 11059076 | Seeger2 individual belts | 1 |
| 59 | 16105121 | Nut2 individual belts | 1 |
| 60 | 103025 | Washer2 individual belts | 1 |
| 61 | 105038 | Bearing2 individual belts | 2 |
| 62 | 121553 | Backplate for ringFor pump no. 121290 | 1 |
