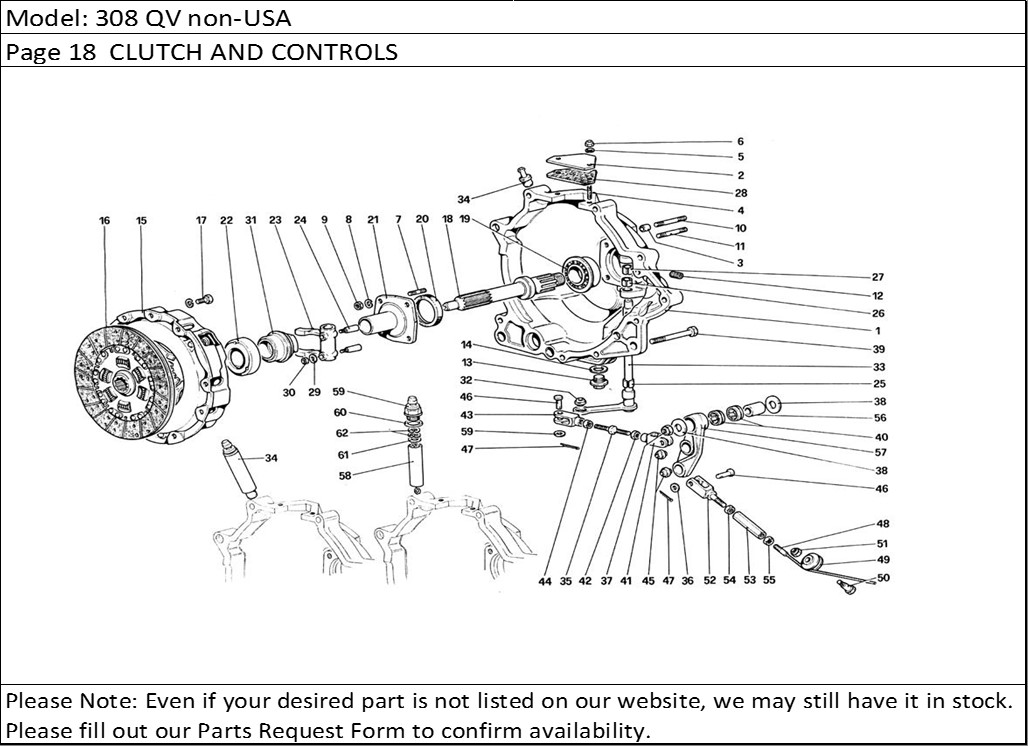

308 QV non-USA Page 18 CLUTCH AND CONTROLS
Product Description
308 QV non-USA Page 18 CLUTCH AND CONTROLS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| - | 127752 | Clutch housing, completeFrom car no. 56087 | 1 |
| - | 116801 | Clutch housing, completeUp to car no. 56085 | 1 |
| 1 | 116377 | Clutch housingWith assembly no.116801 | 1 |
| 1 | 126025 | Clutch housingWith assembly no.127752 | 1 |
| 2 | 109404 | Inspection cover | 1 |
| 3 | 102704 | Centering dowel | 4 |
| 4 | 13539021 | Stud | 2 |
| 5 | 12601171 | Washer | 2 |
| 6 | 15896411 | Nut | 2 |
| 7 | 13516521 | Stud | 4 |
| 8 | 106852 | Washer | 4 |
| 9 | 16102311 | Nut | 4 |
| 10 | 13517621 | Stud | 2 |
| 11 | 13517521 | Stud | 8 |
| 12 | 14326150 | Cap | 1 |
| 13 | 14326540 | Oil drain plug | 1 |
| 14 | 10279560 | Gasket | 1 |
| 15 | 121562 | Pressure plate | 1 |
| 16 | 121478 | Clutch 9 1/2 inchNot for spare | 1 |
| 16 | 120482 | Clutch disc | 1 |
| 17 | 13825821 | Bolt | 6 |
| 18 | 109400 | Clutch shaftOn exhaustion use no. 125532 | 1 |
| 19 | 103042 | Bearing | 1 |
| 20 | 110314 | Oil retainer | 1 |
| 21 | 105136 | Flange with sleeve | 1 |
| 22 | 100849 | Thrust bearing | 1 |
| 23 | 108428 | Clutch control leverWith assembly no. 116327 | 1 |
| 24 | 108429 | Pin | 2 |
| 25 | 103226 | Outer bushing | 1 |
| 26 | 103227 | Inner bushing | 1 |
| 27 | 106500 | Inner bushing | 1 |
| 28 | 109405 | Gasket for cover | 1 |
| 29 | 108430 | Washer | 2 |
| 30 | 12574121 | Nut | 2 |
| 31 | 116326 | Bushing for bearing | 1 |
| 32 | 100860 | Ball joint | 1 |
| 33 | 116327 | Lever and control shaft | 1 |
| 34 | 115463 | Union for breather pipeUp to car no. | 1 |
| 34 | 126036 | Union for breather pipeFrom car no. to car no.56085 | 1 |
| 35 | 116329 | Tie rod | 1 |
| 36 | 12639701 | Washer | 3 |
| 37 | 16105121 | Nut | 1 |
| 38 | 108939 | Spacer for lever | 2 |
| 39 | 15541121 | Screw | 1 |
| 40 | 103223 | Roller cage | 2 |
| 41 | 100855 | Fork, LH thread | 1 |
| 42 | 100862 | Nut, LH thread | 1 |
| 43 | 103238 | Fork | 1 |
| 44 | 100861 | Lock nut | 2 |
| 45 | 100860 | Ball joint | 2 |
| 46 | 103218 | Pin | 3 |
| 47 | 10734201 | Split pin | 3 |
| 48 | 106745 | Clutch control cable | 1 |
| 49 | 105665 | Sheave | 1 |
| 50 | 10902621 | Bolt | 1 |
| 51 | 12575411 | Nut | 1 |
| 52 | 106579 | Fork | 1 |
| 53 | 10091011 | Adjusting sleeve | 1 |
| 54 | 10725911 | Lock nut | 1 |
| 55 | 10727311 | Lock nut (LH thread) | 1 |
| 56 | 107437 | Bushing for lever | 1 |
| 57 | 116472 | Clutch control lever | 1 |
| 58 | 126044 | PipeFrom car no. 56087 | 1 |
| 59 | 126046 | Plug for breather pipeFrom car no. 56088 | 1 |
| 60 | 10263460 | GasketFrom car no. 56087 | 1 |
| 61 | 117311 | SpacerOn exhaustion use no. 12605201, from car no. 56087 | 1 |
| 62 | 12604571 | WasherFrom car no. 56087 | 2 |
