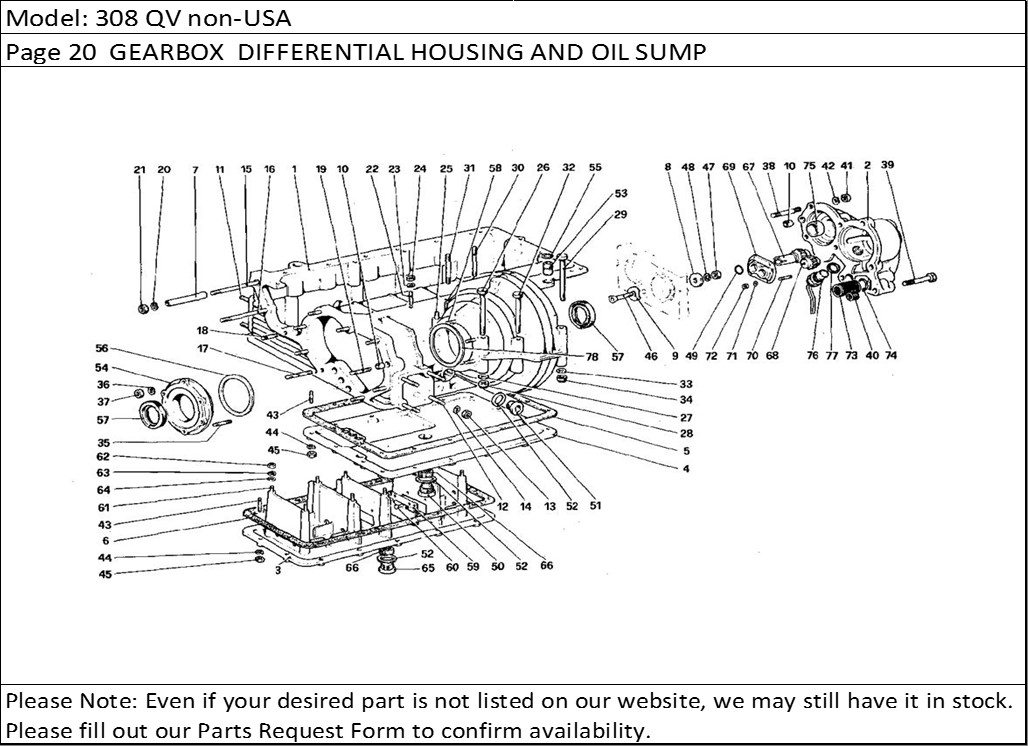

308 QV non-USA Page 20 GEARBOX DIFFERENTIAL HOUSING AND OIL SUMP
Product Description
308 QV non-USA Page 20 GEARBOX DIFFERENTIAL HOUSING AND OIL SUMP
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| - | 120592 | Transmission, completeFor CH use no. 118044 | 1 |
| - | 115179 | Complete gearbox | 1 |
| 1 | 118341 | Gearbox differential and oil sumpWith assembly no. 115179 | 1 |
| 2 | 113073 | Rear coverWith assembly no. 115179 | 1 |
| 3 | 107875 | Oil sump cover, complete | 1 |
| 3 | 104192 | Oil sump coverWith assembly no. 107875 | 1 |
| 4 | 115353 | Lower cover | 1 |
| 5 | 104196 | Gasket | 1 |
| 6 | 104197 | Gasket | 1 |
| 7 | 104033 | Centering dowel | 1 |
| 8 | 104198 | Washer | 1 |
| 9 | 104199 | Washer | 1 |
| 10 | 102704 | Centering dowel | 2 |
| 11 | 13449321 | Stud for front pads | 8 |
| 12 | 13450021 | Stud for rear pads | 8 |
| 13 | 12164711 | Nut | 16 |
| 14 | 106853 | Washer | 16 |
| 15 | 13952821 | Stud | 1 |
| 16 | 13952621 | Stud | 1 |
| 17 | 13517421 | Stud | 1 |
| 18 | 13517221 | Stud | 8 |
| 19 | 13517321 | Stud | 1 |
| 20 | 11194071 | Washer | 12 |
| 21 | 16100811 | Nut | 12 |
| 22 | 108966 | Stud for crankcase | 4 |
| 23 | 11194071 | Washer | 4 |
| 24 | 16100811 | Nut | 4 |
| 25 | 13450421 | Stud | 2 |
| 26 | 15972021 | Bolt | 2 |
| 27 | 12638601 | Washer | 4 |
| 28 | 12574511 | Selflocking nut | 4 |
| 29 | 104189 | Bolt | 1 |
| 30 | 13518021 | Stud | 2 |
| 31 | 13517821 | Stud | 1 |
| 32 | 107711 | Bolt | 1 |
| 33 | 10519601 | Washer | 5 |
| 34 | 16104111 | Selflocking nut | 5 |
| 35 | 12429721 | Stud | 5 |
| 36 | 12601371 | Spring washer | 6 |
| 37 | 16104111 | Nut | 6 |
| 38 | 13517221 | Stud | 5 |
| 39 | 16044121 | Screw | 2 |
| 39 | 16044221 | Screw for cover and propelling unit earth | 1 |
| 40 | 13525770 | Heli - coil | 3 |
| 41 | 16100811 | Nut | 5 |
| 42 | 11198071 | Washer | 8 |
| 43 | 13541121 | Stud | 30 |
| 44 | 11197771 | Washer | 30 |
| 45 | 15896211 | Nut | 30 |
| 46 | 104218 | Screw | 1 |
| 47 | 16100811 | Nut | 1 |
| 48 | 106852 | Washer | 1 |
| 49 | 101032 | Sealing ring | 1 |
| 50 | 104280 | Plug | 1 |
| 51 | 10275001 | Plug | 1 |
| 52 | 10263460 | Gasket | 3 |
| 53 | 103838 | Dowel | 1 |
| 54 | 108226 | Differential side codeWith assembly no. 115179 | 1 |
| 55 | 103839 | Ring | 1 |
| 56 | 103422 | Spacer for LH bearing (eventual use)Thickness mm 2,40 | 1 |
| 56 | 103425 | Spacer for LH bearing (eventual use)Thickness mm 3,00 | 1 |
| 56 | 103424 | Spacer for LH bearing (eventual use)Thickness mm 2,80 | 1 |
| 56 | 109145 | Spacer for LH bearing (eventual use)Thickness mm 4,30 | 1 |
| 56 | 103423 | Spacer for LH bearing (eventual use)Thickness mm 2,60 | 1 |
| 56 | 103426 | Spacer for LH bearing (eventual use)Thickness mm 3,20 | 1 |
| 57 | 125078 | Sealing ringOn exhaustion no. 108157 | 1 |
| 58 | 13543421 | Stud | 1 |
| 59 | 107589 | Vertical protection | 2 |
| 60 | 100033 | Rivet | 4 |
| 61 | 13539021 | Stud for lower | 8 |
| 62 | 15896411 | Nut | 8 |
| 63 | 106849 | Spring washer | 8 |
| 64 | 12638101 | Washer | 8 |
| 65 | 10275040 | Plug | 1 |
| 66 | 112254 | Heli - coil | 2 |
| 67 | 116953 | Oil pump drive gear | 1 |
| 68 | 113082 | Oil pump driven gear | 1 |
| 69 | 113086 | Oil pump cover | 1 |
| 70 | 11000921 | Stud | 4 |
| 71 | 12601171 | Washer | 4 |
| 72 | 15896411 | Nut | 4 |
| 73 | 115538 | Oil pump filter | 1 |
| 74 | 101034 | Sealing ring | 1 |
| 75 | 113088 | Seat | 1 |
| 76 | 116987 | Pulse generator | 1 |
| 77 | 10263460 | Gasket | 1 |
| 78 | 103424 | Space for RH bearing | 1 |
