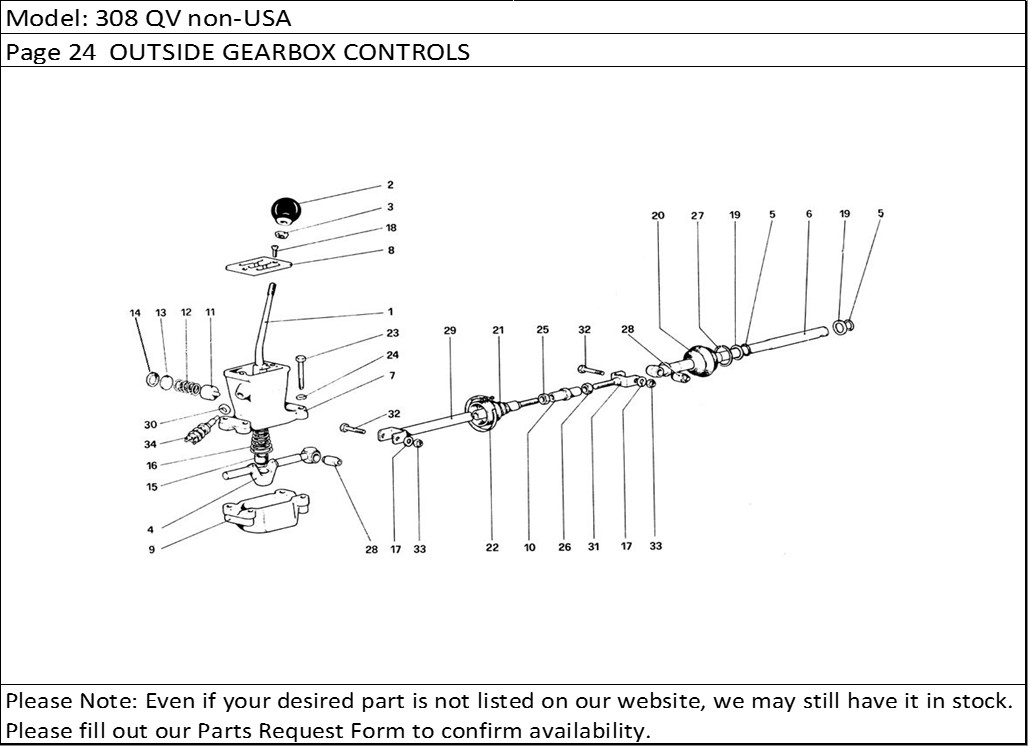

308 QV non-USA Page 24 OUTSIDE GEARBOX CONTROLS
Product Description
308 QV non-USA Page 24 OUTSIDE GEARBOX CONTROLS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 116738 | Gearbox leverFor GD use no. 116739 | 1 |
| 2 | 103301 | Knob for gearshift lever | 1 |
| 3 | 108010 | Locknut | 1 |
| 4 | 111445 | Pin with joint seatFor GD use no. 111446 | 1 |
| 5 | 115372 | Sealing ring | 2 |
| 6 | 109767 | Shaft for control lever | 1 |
| 7 | 105438 | Gearbox casingWith unit no. 108848 | 1 |
| 7 | 108848 | Gearbox casing complete | 1 |
| 8 | 106433 | Speed selector | 1 |
| 9 | 104315 | Lower coverWith unit no. 108848 | 1 |
| 10 | 103321 | Tie rod | 1 |
| 11 | 108824 | Lever push rod | 1 |
| 12 | 103318 | Spring | 1 |
| 13 | 103319 | Disc for spring | 1 |
| 14 | 103326 | Seeger ring | 1 |
| 15 | 108214 | Ball joint seat | 1 |
| 16 | 115340 | Spring | 1 |
| 17 | 10519601 | Washer | 2 |
| 18 | 101619 | Screw | 2 |
| 19 | 108247 | Thrust washer | 2 |
| 20 | 106168 | Bellows | 1 |
| 21 | 106687 | Bellows | 1 |
| 22 | 10291490 | Clamp | 1 |
| 23 | 16136621 | Screw | 4 |
| 24 | 12601371 | Corrugated washer | 4 |
| 25 | 10791221 | Locknut (threaded insert, right) | 1 |
| 26 | 10791921 | Locknut (threaded insert, left) | 1 |
| 27 | 104244 | Sealing ring | 1 |
| 28 | 106814 | Silentblock | 2 |
| 29 | 108087 | Control rod | 1 |
| 30 | 12601571 | Washer | 1 |
| 31 | 106820 | Fork | 1 |
| 32 | 107830 | Bolt | 2 |
| 33 | 101309 | Selflocking nut | 2 |
| 34 | 104320 | Reserve switch | 1 |
