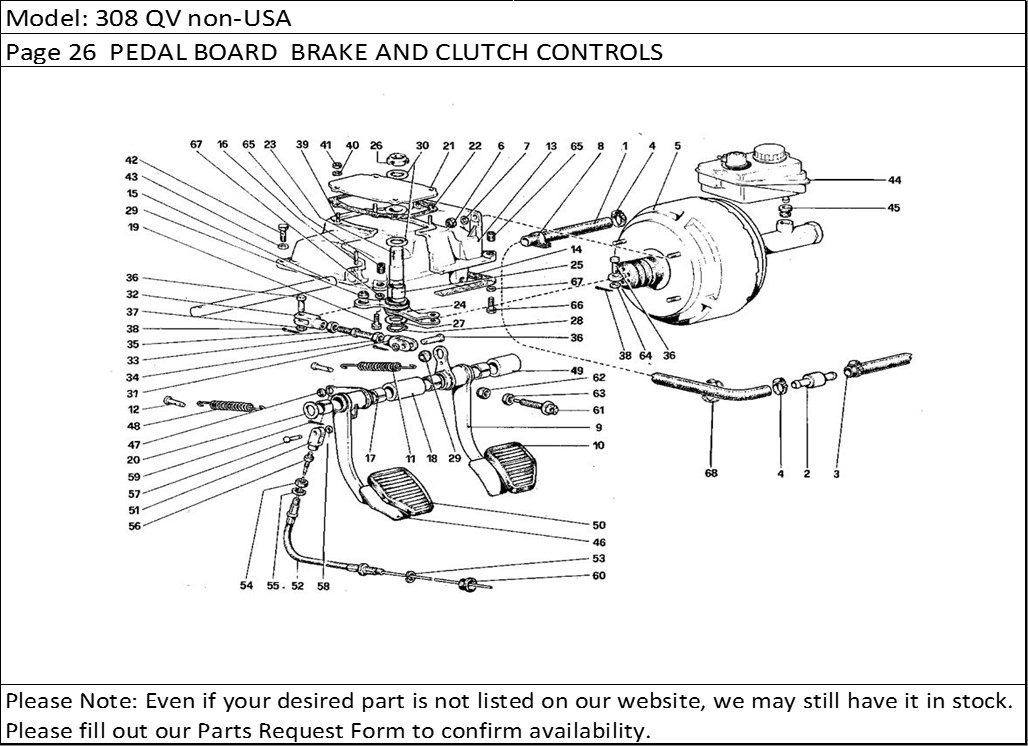

308 QV non-USA Page 26 PEDAL BOARD BRAKE AND CLUTCH CONTROLS
Product Description
308 QV non-USA Page 26 PEDAL BOARD BRAKE AND CLUTCH CONTROLS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 120233 | Pipe, vacuum servo to check valve | 1 |
| 2 | 101538 | Check valve | 1 |
| 4 | 12179590 | Strap | 4 |
| 5 | 111338 | Vacuum servoOn exhaustion use no. 24514 | 1 |
| 6 | 16104411 | Nut | 4 |
| 7 | 12601371 | Washer | 4 |
| 8 | 10418900 | Strap | 1 |
| 9 | 108533 | Brake pedal | 1 |
| 10 | 106950 | Cover for brake pedal | 1 |
| 11 | 104895 | Return spring for brake pedal | 1 |
| 12 | 104896 | Pin | 2 |
| 13 | 106187 | Pedals supportWith assembly no. 108022 | 1 |
| 13 | 108022 | Pedals support, complete | 1 |
| 14 | 104899 | Gasket | 1 |
| 15 | 104900 | Pin | 1 |
| 16 | 104901 | Pin | 1 |
| 17 | 103163 | Bushing | 4 |
| 18 | 104902 | Spacer | 1 |
| 19 | 16043621 | Screw, fixing pedals | 1 |
| 20 | 106083 | Washer | 1 |
| 21 | 104904 | Cover | 1 |
| 22 | 104905 | Gasket | 1 |
| 23 | 106081 | Pin | 1 |
| 24 | 108313 | Vacuum servo lever | 1 |
| 25 | 100787 | Bushing | 1 |
| 26 | 106082 | Ring nut | 1 |
| 27 | 108382 | Spacer | 1 |
| 28 | 11066875 | Seeger ring | 1 |
| 29 | 100424 | Ball joint | 2 |
| 30 | 106084 | Washer | 2 |
| 31 | 104910 | Fork (L.H. thread) | 1 |
| 32 | 104911 | Fork | 1 |
| 33 | 104912 | Adjusting screw | 1 |
| 34 | 103157 | Nut (L.H. thread)On exhaustion use no. 11690911 | 1 |
| 35 | 103160 | Nut right threadOn exhaustion use no. 10788711 | 1 |
| 36 | 10033411 | Pin | 3 |
| 37 | 103167 | Washer | 2 |
| 38 | 10796301 | Split pin | 3 |
| 39 | 11500021 | Stud | 4 |
| 40 | 12601271 | Corrugated washer | 4 |
| 41 | 15896211 | Nut | 4 |
| 42 | 16139021 | Bolt | 2 |
| 43 | 12601471 | Corrugated washer | 2 |
| 44 | 108802 | Brake fluid reservoirTo chassis no. | 1 |
| 44 | 119566 | Brake fluid reservoirFrom chassis no. | 1 |
| 45 | 106625 | Sealing ring | 2 |
| 46 | 116324 | Clutch pedalFor GD use no. 116513 | 1 |
| 47 | 100423 | Ball joint | 1 |
| 48 | 117374 | Return spring for clutch pedal | 1 |
| 49 | 104903 | Spacer | 1 |
| 50 | 106949 | Cover for pedal | 1 |
| 51 | 103238 | Fork | 1 |
| 52 | 106745 | Clutch control cable | 1 |
| 53 | 12601671 | Spring washer | 1 |
| 54 | 16103611 | Nut | 1 |
| 55 | 12601571 | Spring washer | 1 |
| 56 | 100861 | Lock nut | 1 |
| 57 | 103218 | Pin | 1 |
| 58 | 12639701 | Washer | 1 |
| 59 | 10734221 | Split pin | 1 |
| 60 | 105369 | Fair lead | 3 |
| 61 | 101663 | Switch for stop lights | 1 |
| 62 | 101662 | Nut | 1 |
| 63 | 10791211 | Nut | 1 |
