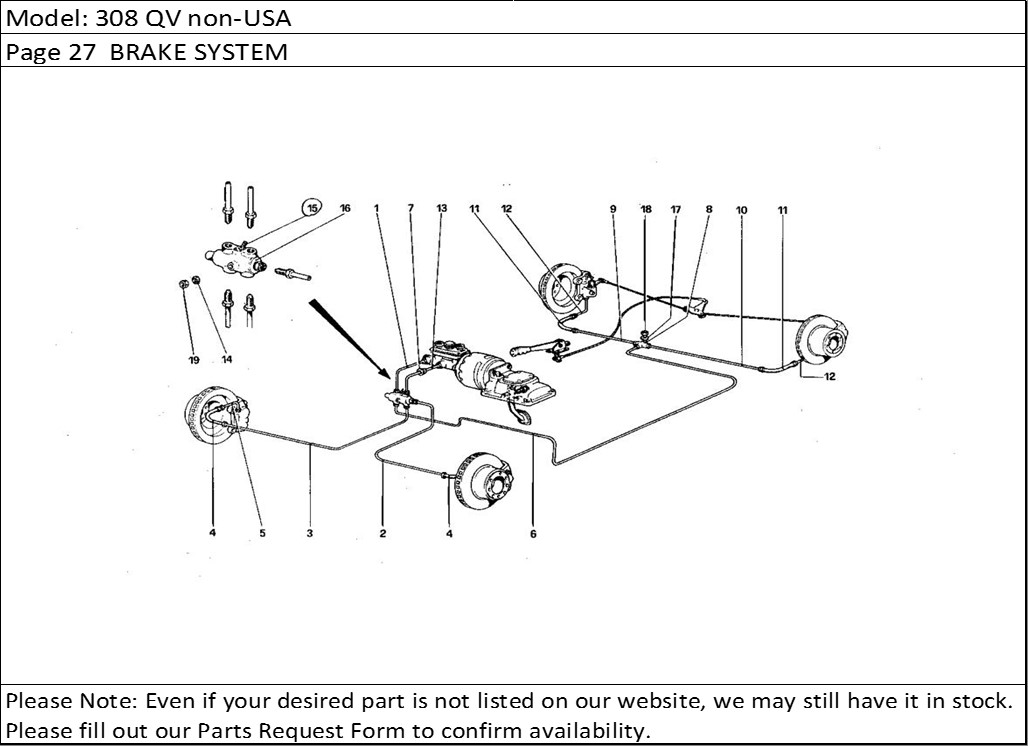

308 QV non-USA Page 27 BRAKE SYSTEM
Product Description
308 QV non-USA Page 27 BRAKE SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 101407 | Pipe from brake booster to indicatorof rear circuit | 1 |
| 2 | 105850 | Pipe from indicator to left front hoseFor RHD use no. 107366 | 1 |
| 3 | 104469 | Pipe from indicator to right front hoseFor RHD use no. 107366 | 1 |
| 4 | 116439 | Front circuit hose | 2 |
| 5 | 106671 | Pipe from hose to caliper | 2 |
| 6 | 117344 | Pipe from valve to 3-way fittingFor RHD use no. 113023 | 1 |
| 7 | 105369 | Fair-lead | 1 |
| 8 | 101394 | 3-way fitting | 1 |
| 9 | 104470 | Pipe from 3-way union to right hose | 1 |
| 10 | 106672 | Pipe from 3-way union to left hose | 1 |
| 11 | 116491 | Rear hose | 2 |
| 12 | 101401 | Pipe from hose to rear caliper | 1 |
| 13 | 105278 | Pipe from brake booster to indicatorFor RHD use no. 105855 | 1 |
| 14 | 106850 | Washer | 1 |
| 15 | 108955 | Electric Indicator | 1 |
| 16 | 108803 | Brake failure indicatorOn exhaustion use no. 127757 | 1 |
| 17 | 12639701 | Washer | 1 |
| 18 | 12574211 | Nut | 1 |
| 19 | 15896211 | Nut | 1 |
