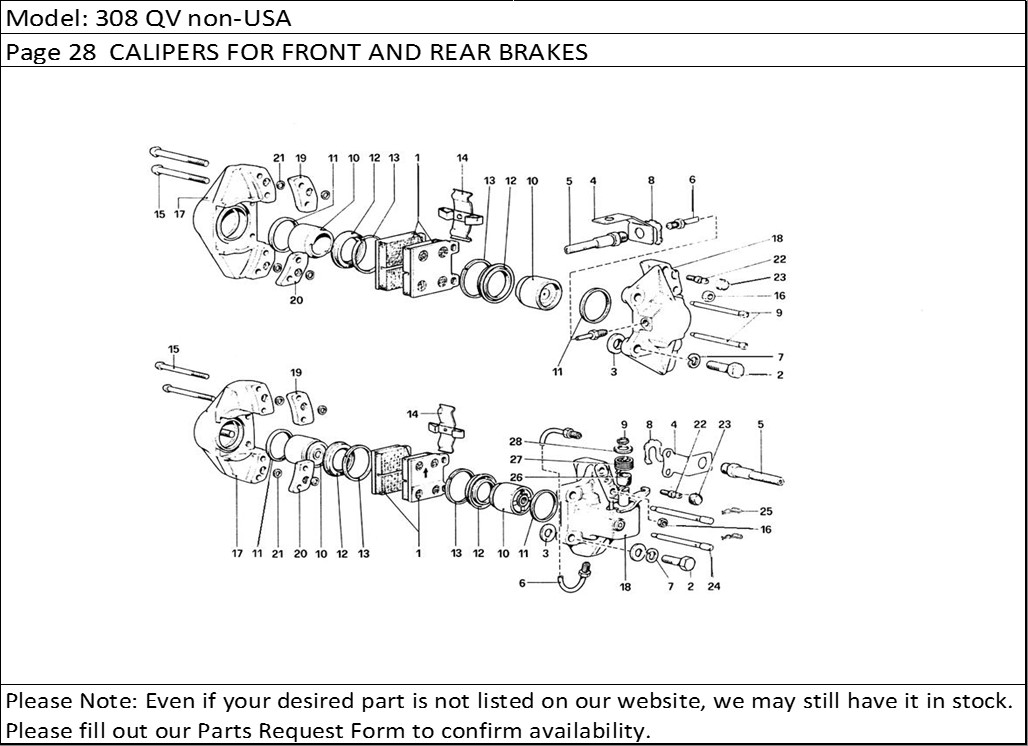

308 QV non-USA Page 28 CALIPERS FOR FRONT AND REAR BRAKES
Product Description
308 QV non-USA Page 28 CALIPERS FOR FRONT AND REAR BRAKES
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| - | 106360 | Right rear caliper unit with padsFERODO I/D 332 | 1 |
| - | 106357 | Right front caliper unit with pads FERODO I/D332 | 1 |
| - | 106359 | Left rear caliper unit with padsFERODO I/D 333 | 1 |
| - | 106358 | Left front caliper unit with pads FERODO I/D 332 | 1 |
| 1 | 108133 | Set of front pads FERODO I/D 332 | 1 |
| 1 | 111785 | Set of rear padsFERODO I/D 334 | 1 |
| 1 | 144897 | Set of front pads FERODO I/D 332 | 1 |
| 2 | 104598 | Bolt, fixing front caliper | 1 |
| 2 | 104455 | Bolt fixing rear calipers | 4 |
| 3 | 108918 | Shim, thickness 0,2mmPossible fitting | 4 |
| 3 | 108922 | Ditto, thickness 0,7 mm.Possible fitting | 4 |
| 3 | 108919 | Ditto, thickness 0,3 mm.Possible fitting | 4 |
| 3 | 108920 | Ditto, thickness 0,5 mm.Possible fitting | 4 |
| 3 | 108921 | Ditto, thickness 0,6 mm.Possible fitting | 4 |
| 3 | 108924 | Ditto, thickness 1 mm.Possible fitting | 4 |
| 3 | 108923 | Ditto, thickness 0,8 mm.Possible fitting | 4 |
| 4 | 116490 | Bracket for hoseValid for rear brake caliper | 2 |
| 4 | 116396 | Bracket for hoseValid for front brake caliper | 2 |
| 5 | 116491 | HoseValid for rear brake caliper | 2 |
| 5 | 116489 | HoseValid for front brake caliper | 2 |
| 6 | 106671 | Piping, hose to calipersValid for front brake caliper | 2 |
| 6 | 101401 | Piping, hose to calipersValid for rear brake caliper | 2 |
| 7 | 106854 | Spring washerValid for front brake caliper | 4 |
| 7 | 10571911 | Spring washerValid for rear brake caliper | 4 |
| 8 | 116374 | Clip for hoseValid for front brake caliper | 4 |
| 8 | 116374 | Clip for hoseValid for rear brake caliper | 4 |
| 9 | - | Stop ringAre not available as spare parts, but are supplied with assembly nos. 106360 and 106359 | 2 |
| 9 | - | Pin for padsWith kit no 108133 | 2 |
| 10 | - | Brake cylinderNot available as spare parts, but are supplied with assembly nos. 106357 and 106358 | 4 |
| 10 | - | Brake cylinderAre not available as spare parts, but are supplied with assembly nos. 106360 and 106360 | 4 |
| 11 | - | Sealing ringWith assembly no 95651535 | 4 |
| 11 | 95691536 | Set of sealing rings for 1 caliperValid for rear brake caliper | 1 |
| 11 | - | Sealing ringWith assembly no. 95691536 | 4 |
| 11 | 95691535 | Set of sealing rings for 1 caliperValid for front brake caliper | 1 |
| 12 | - | Dust protection ringWith assembly no. 95691537 | 4 |
| 12 | - | Dust protection ringWith assembly no. 95651535 | 4 |
| 13 | - | Stop ringNot available as spare parts, but are supplied with assembly nos. 106357 and 106358 | 4 |
| 13 | - | Stop ringAre not available as spare parts, but are supplied with assembly nos. 106360 and 106359 | 4 |
| 14 | - | Pad pressure springWith kit no.111785 | 2 |
| 14 | - | Pad pressure springWith kit no 108133 | 2 |
| 15 | - | BoltNot available as spare parts, but are supplied with assembly nos. 106357 and 106358 | 4 |
| 15 | - | BoltAre not available as spare parts, but are supplied with assembly nos. 106360 and 106359 | 4 |
| 16 | - | NutAre not available as spare parts, but are supplied with assembly nos. 106360 and 106360 | 4 |
| 16 | - | NutNot available as spare parts, but are supplied with assembly nos. 106357 and 106359 | 4 |
| 17 | - | Cylinder body, outsideAre not available as spare parts, but are supplied with assembly nos. 106360 and 106361 | 2 |
| 17 | - | Cylinder body, outsideNot available as spare parts, but are supplied with assembly nos. 106357 and 106360 | 2 |
| 18 | - | Cylinder body, insideNot available as spare parts, but are supplied with assembly nos. 106357 and 106361 | 2 |
| 18 | - | Cylinder body, insideAre not available as spare parts, but are supplied with assembly nos. 106360 and 106362 | 2 |
| 19 | - | Upper spacerNot available as spare parts, but are supplied with assembly nos. 106357 and 106362 | 2 |
| 19 | - | Upper spacerAre not available as spare parts, but are supplied with assembly nos. 106360 and 106363 | 2 |
| 20 | - | Lower spacerAre not available as spare parts, but are supplied with assembly nos. 106360 and 106364 | 2 |
| 20 | - | Lower spacerNot available as spare parts, but are supplied with assembly nos. 106357 and 106363 | 2 |
| 21 | - | Sealing ring on spacerNot available as spare parts, but are supplied with assembly nos. 106357 and 106364 | 8 |
| 21 | - | Sealing ring on spacersAre not available as spare parts, but are supplied with assembly nos. 106360 and 106365 | 8 |
| 22 | - | BleederNot available as spare parts, but are supplied with assembly nos. 106357 and 106365 | 2 |
| 22 | - | BleederAre not available as spare parts, but are supplied with assembly nos. 106360 and 106366 | 2 |
| 23 | - | Bleeder capAre not available as spare parts, but are supplied with assembly nos. 106360 and 106367 | 2 |
| 23 | - | Bleeder cap | 2 |
| 24 | - | Pin for padsWith kit no.111785 | 4 |
| 25 | - | Clamp for pinAre not available as spare parts, but are supplied with assembly nos. 106360 and 106367 | 4 |
| 26 | - | BushingAre not available as spare parts, but are supplied with assembly nos. 106360 and 106368 | 2 |
| 27 | - | SpringAre not available as spare parts, but are supplied with assembly nos. 106360 and 106369 | 2 |
| 28 | - | WasherAre not available as spare parts, but are supplied with assembly nos. 106360 and 106370 | 2 |
