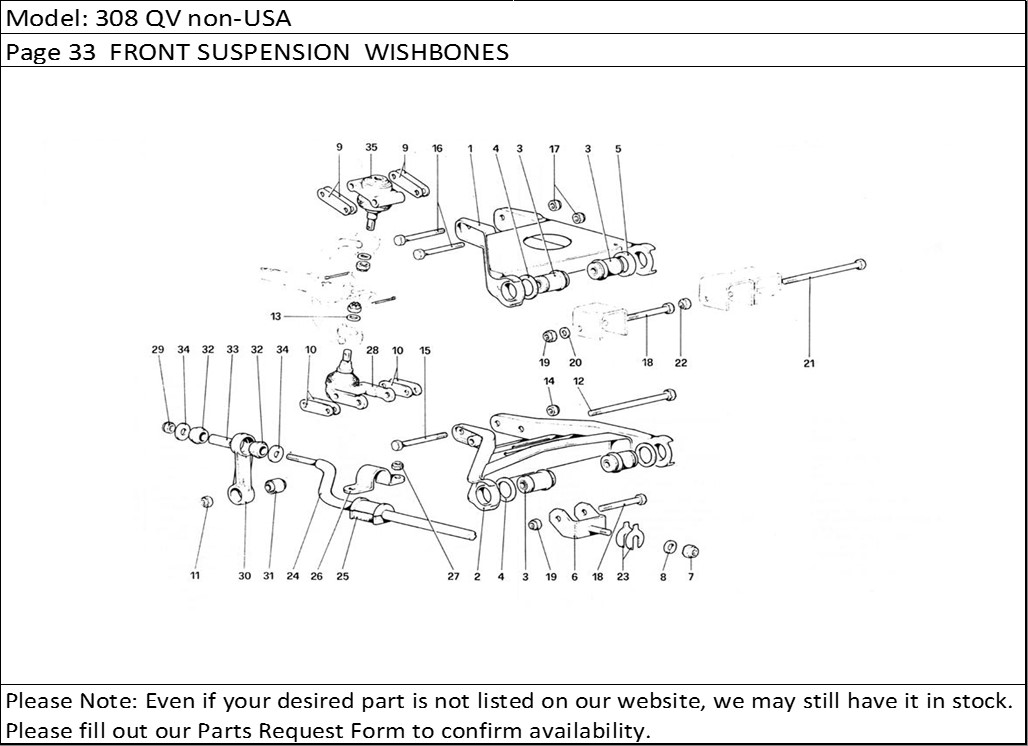

308 QV non-USA Page 33 FRONT SUSPENSION WISHBONES
Product Description
308 QV non-USA Page 33 FRONT SUSPENSION WISHBONES
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 104392 | Upper lever, right | 1 |
| 1 | 104393 | Upper lever, left | 1 |
| 2 | 104401 | Lower lever, right | 1 |
| 3 | 104398 | Flandblock for lever | 8 |
| 4 | 104399 | Spacer washer | 6 |
| 5 | 104400 | Spacer for rear upper wishbones | 2 |
| 6 | 104409 | Lower fork | 4 |
| 7 | 12575821 | Nut | 4 |
| 8 | 101041 | Washer | 4 |
| 9 | 103256 | Upper adjusting plate | 8 |
| 10 | 101022 | Lower adjusting plate | 8 |
| 11 | 16105121 | Nut | 2 |
| 12 | 107886 | Bolt | 2 |
| 13 | 101445 | Washer | 2 |
| 14 | 12574521 | Nut | 2 |
| 15 | 15971621 | Bolt | 2 |
| 16 | 15971421 | Bolt | 4 |
| 17 | 12574521 | Nut | 4 |
| 18 | 106419 | Bolt | 6 |
| 19 | 16105121 | Nut | 6 |
| 20 | 106426 | Washer for upper wishbone | 2 |
| 21 | 105901 | Bolt | 2 |
| 22 | 16105121 | Nut | 2 |
| 23 | 107418 | Ditto thickness 1,5 mm.Possible fitting | 8 |
| 23 | 107025 | Shim for lower fork, thickness 1 mmPossible fitting | 8 |
| 23 | 107419 | Ditto thickness 2 mm.Possible fitting | 8 |
| 23 | 107420 | Ditto thickness 2,5 mm.Possible fitting | 8 |
| 23 | 107421 | Ditto thickness 3 mm.Possible fitting | 8 |
| 23 | 107422 | Ditto thickness 3,25 mm.Possible fitting | 8 |
| 24 | 105053 | Stabilizer rodOn exhaustion use no. 125111 | 1 |
| 25 | 108746 | Pad for rod | 2 |
| 26 | 106577 | Retainer for stabilizer brod | 2 |
| 27 | 12575621 | Nut | 4 |
| 28 | 114462 | Lower ball joint | 2 |
| 29 | 16105121 | Nut | 2 |
| 30 | 108431 | Rod link | 2 |
| 31 | 100773 | Silentblok for link | 2 |
| 32 | 100984 | Grommet for stabilizer rod | 4 |
| 33 | 108998 | Spacer tube | 2 |
| 34 | 105334 | Washer | 4 |
| 35 | 116280 | Upper ball joint | 2 |
