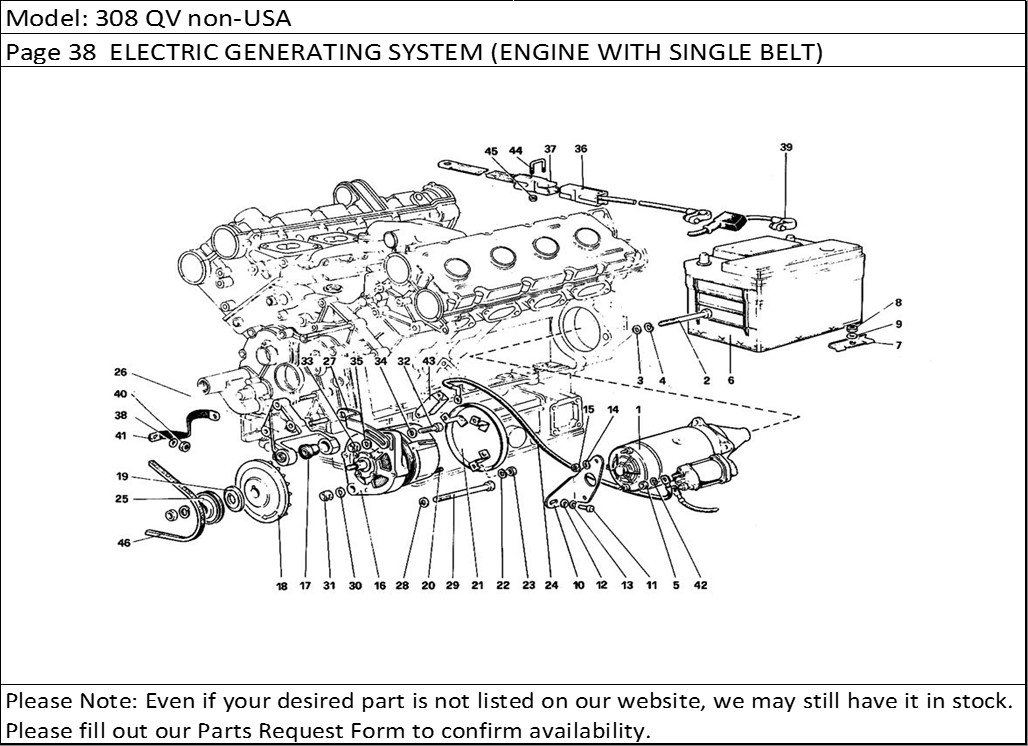

308 QV non-USA Page 38 ELECTRIC GENERATING SYSTEM (ENGINE WITH SINGLE BELT)
Product Description
308 QV non-USA Page 38 ELECTRIC GENERATING SYSTEM (ENGINE WITH SINGLE BELT)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 106966 | Starter motor | 1 |
| 1 | 120967 | Starter motor (In alternative) | 1 |
| 3 | 11198071 | Washer | 3 |
| 4 | 10519621 | Washer | 3 |
| 5 | 16100811 | Nut Only for 106966 | 1 |
| 6 | 118060 | Battery 12V 66AH 300AOnly Tropic no. 111354 | 1 |
| 7 | 106525 | Bracket | 1 |
| 8 | 16100811 | Nut | 1 |
| 9 | 106852 | Washer | 1 |
| 10 | 107129 | Support bracket Only for 106966 | 1 |
| 11 | 15970721 | Bolt Only for 136966 | 1 |
| 12 | 105391 | Washer Only for 106966 | 1 |
| 13 | 106853 | Washer Only for 106966 | 1 |
| 14 | 106850 | Washer Only for 196966 | 2 |
| 15 | 15896211 | Nut Only for 106966 | 2 |
| 16 | 117967 | Alternator BOSCH 80A | 1 |
| 17 | 117969 | Elastic bush | 2 |
| 18 | 117968 | Fan | 1 |
| 19 | 114305 | Washer | 1 |
| 20 | 11499921 | Stud | 3 |
| 21 | 117978 | Protection plate | 1 |
| 22 | 106850 | Washer | 3 |
| 23 | 15896221 | Nut | 3 |
| 24 | 118078 | Generator connecting cables | 1 |
| 25 | 117938 | PulleyAssembly with single belt | 1 |
| 26 | 117924 | Support for alternator | 1 |
| 27 | 117937 | Plate for regulation | 1 |
| 28 | 13550421 | Washer | 1 |
| 29 | 15972221 | Bolt | 1 |
| 30 | 12601471 | Washer | 1 |
| 31 | 117702 | Nut | 1 |
| 32 | 11343821 | Screw | 1 |
| 33 | 117702 | Nut | 1 |
| 34 | 13550421 | Washer | 1 |
| 35 | 105391 | Washer | 1 |
| 36 | 115660 | Cable from battery to battery switch | 1 |
| 37 | 115667 | Copper braid from battery terminal to earth - chassis | 1 |
| 38 | 10615671 | Washer | 1 |
| 39 | 120082 | Cable from battery to starter | 1 |
| 40 | 16100821 | Nut | 1 |
| 41 | 115668 | Earth cabls for engine | 1 |
| 42 | 10516670 | Washer Only for 136966 | 1 |
| 43 | 107396 | Voltage regulator | 1 |
| 44 | 116591 | Fixing plate | 1 |
| 45 | 12574011 | Nut | 1 |
| 46 | 107971 | Control belt for pump and alternator | 1 |
