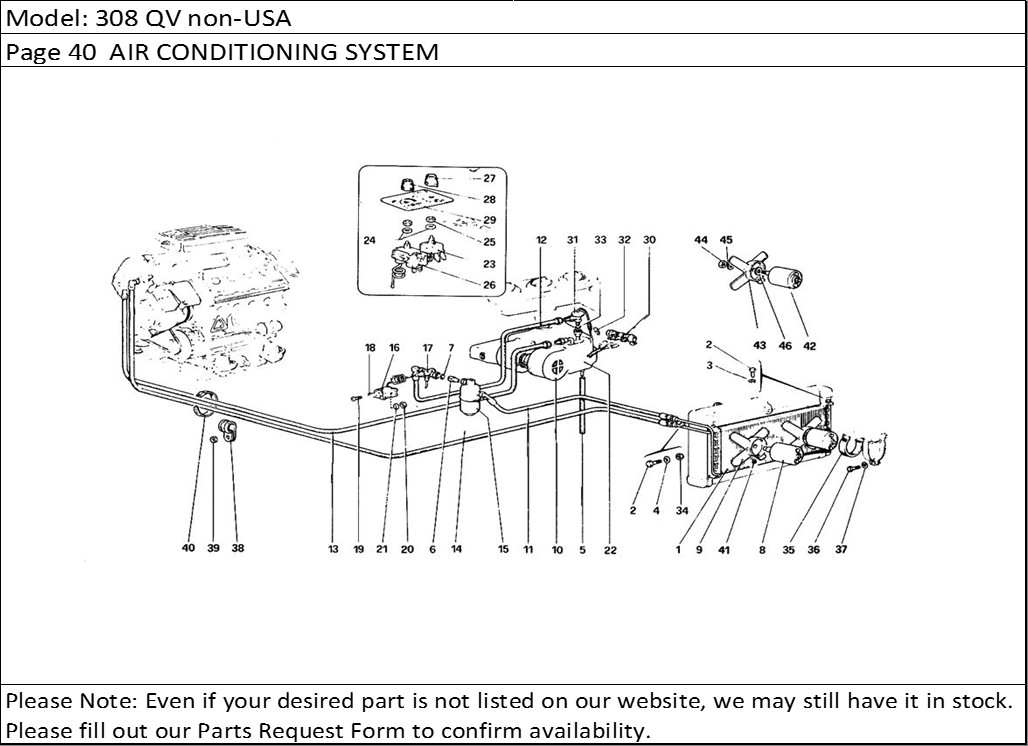

308 QV non-USA Page 40 AIR CONDITIONING SYSTEM
Product Description
308 QV non-USA Page 40 AIR CONDITIONING SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 106697 | Condenser | 1 |
| 2 | 10902121 | Screw | 5 |
| 4 | 12643701 | Washer | 1 |
| 5 | 106710 | Condensate drainage pipe | 1 |
| 6 | 107402 | Union for receiver/drier | 1 |
| 7 | 103039 | Sealing ring | 1 |
| 8 | 119447 | Fan motorOn exhaustion no. 109825 | 2 |
| 9 | 122957 | 4 blade fanIn alternative no. 119488 | 2 |
| 10 | 109039 | Fan assembly | 1 |
| 11 | 109322 | Pipe F 3/8 inch, condenser to receiver/drierFor GD use no. 112117 | 1 |
| 12 | 109867 | Pipe F 3/8 inch, condenser to evaporatorFor GD use no. 112118 | 1 |
| 13 | 110964 | Pipe F 5/8 inch, evaporator to compressorTo chassis no. | 1 |
| 13 | 121119 | Pipe F 5/8 inch evaporator to compressorFor GD up to | 1 |
| 13 | 109868 | Pipe F 5/8 inch, evaporator to compressorFor GS up to | 1 |
| 14 | 110367 | PipeF 1/2 inch, compressor to condenser | 1 |
| 15 | 106647 | Receiver/drier | 1 |
| 16 | 107213 | Max. pressure switch | 1 |
| 17 | 106646 | Union for pressure switch | 1 |
| 18 | 106498 | Support for pressure switch | 1 |
| 19 | 110105 | Screw | 3 |
| 20 | 15896211 | Nut | 2 |
| 21 | 12601278 | Washer | 2 |
| 22 | 109818 | Evaporator unit, completeWith assembly no. 6C183605 | 1 |
| 22 | 112121 | Evaporator unit, completeWith assembly no. 60361003 | 1 |
| 22 | 60361003 | A.C. assembly with conveyorFor GD | 1 |
| 22 | 60183605 | A.C. assembly with conveyorFor GS | 1 |
| 23 | 101990 | Switch | 1 |
| 24 | 107144 | Washer | 2 |
| 25 | 105911 | Nut | 1 |
| 26 | 109819 | Thermostat, calibrated | 1 |
| 27 | 105908 | Knob for switch | 1 |
| 28 | 105907 | Knob for thermostat | 1 |
| 29 | 109820 | Plate, controls index | 1 |
| 30 | 107142 | Resistance far switch | 1 |
| 31 | 106644 | Expansion valve | 1 |
| 32 | 105905 | Strap tor bulb | 1 |
| 33 | 107216 | OR ring for valve | 1 |
| 34 | 12574211 | Nut | 1 |
| 35 | 111872 | Gasket for motor | 2 |
| 36 | 112012 | Screw | 2 |
| 37 | 106850 | Washer | 2 |
| 38 | 10441990 | ClampPipe clamp no. 110367 | 2 |
| 39 | 12574211 | Nut | 1 |
| 40 | 103755 | Clamp | 1 |
| 41 | 13709610 | DowelFor 4 - blade fan n. 122957 | 2 |
| 41 | 13804531 | DowelFor 4 - blade fan n. 119428 | 2 |
| 42 | 109826 | Fan motorUp to exhaustion | 2 |
| 43 | 109147 | 4 - blade fanFor fan motor no. 109825 | 2 |
| 44 | 109481 | NutFor fan motor no. 109826 | 2 |
| 45 | 109483 | WasherFor fan motor no. 109826 | 2 |
| 46 | 109482 | Washer For fan motor no. 109826 | 2 |
