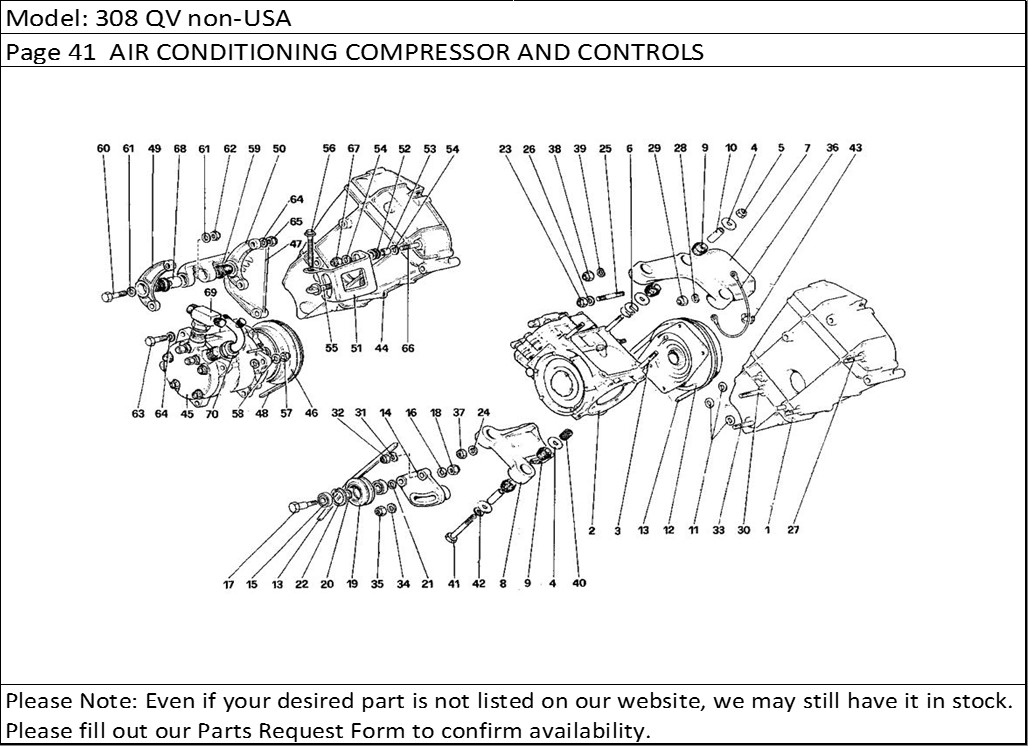

308 QV non-USA Page 41 AIR CONDITIONING COMPRESSOR AND CONTROLS
Product Description
308 QV non-USA Page 41 AIR CONDITIONING COMPRESSOR AND CONTROLS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 117438 | Left cover, completeValid for ASPERA Frigo HG 700AP | 1 |
| 2 | 115776 | Compressor (ASPERA HG 700 AP)Valid for ASPERA Frigo HG 700AP | 1 |
| 3 | 105044 | StudValid for ASPERA Frigo HG 700AP | 3 |
| 4 | 108051 | Sheared washerValid for ASPERA Frigo HG 700AP | 10 |
| 5 | 12574511 | Selflocking nutValid for ASPERA Frigo HG 700AP | 3 |
| 6 | 105039 | WasherValid for ASPERA Frigo HG 700AP - Possible fitting | 6 |
| 7 | 111539 | Upper supportValid for ASPERA Frigo HG 700AP | 1 |
| 8 | 108056 | Lower supportValid for ASPERA Frigo HG 700AP | 1 |
| 9 | 107335 | Rubber supportValid for ASPERA Frigo HG 700AP | 10 |
| 10 | 108052 | Spacer tubeValid for ASPERA Frigo HG 700AP | 5 |
| 11 | 107835 | Washer between cover and lower supportValid for ASPERA Frigo HG 700AP | 3 |
| 12 | 105148 | Joint, anticlockwise rotationValid for ASPERA Frigo HG 700AP | 1 |
| 13 | 105046 | Control belt for compressorValid for ASPERA Frigo HG 700AP | 1 |
| 14 | 105051 | SupportValid for ASPERA Frigo HG 700AP | 1 |
| 15 | 105038 | BearingValid for ASPERA Frigo HG 700AP | 2 |
| 16 | 103025 | WasherValid for ASPERA Frigo HG 700AP | 1 |
| 17 | 105048 | Pin for supportValid for ASPERA Frigo HG 700AP | 1 |
| 18 | 16105121 | Selflocking nutValid for ASPERA Frigo HG 700AP | 1 |
| 19 | 121405 | Pulley for belt stretcherValid for ASPERA Frigo HG 700AP | 1 |
| 20 | 107841 | Inner spacerValid for ASPERA Frigo HG 700AP | 1 |
| 21 | 107842 | SpacerValid for ASPERA Frigo HG 700AP | 1 |
| 22 | 11059075 | Seeger ringValid for ASPERA Frigo HG 700AP | 1 |
| 23 | 12574511 | Selflocking nutValid for ASPERA Frigo HG 700AP | 1 |
| 24 | 107993 | WasherValid for ASPERA Frigo HG 700AP | 2 |
| 25 | 13546621 | Stud fixing upper support to coverValid for ASPERA Frigo HG 700AP | 1 |
| 26 | 12601471 | WasherValid for ASPERA Frigo HG 700AP | 1 |
| 27 | 13543621 | Stud for upper supportValid for ASPERA Frigo HG 700AP | 1 |
| 28 | 12601371 | WasherValid for ASPERA Frigo HG 700AP | 1 |
| 29 | 16104111 | Selflocking nutValid for ASPERA Frigo HG 700AP | 1 |
| 30 | 13449921 | StudValid for ASPERA Frigo HG 700AP | 1 |
| 31 | 12601471 | WasherValid for ASPERA Frigo HG 700AP | 1 |
| 32 | 12574511 | Self locking nutValid for ASPERA Frigo HG 700AP | 1 |
| 33 | 13517421 | Stud for belt stretcherValid for ASPERA Frigo HG 700AP | 1 |
| 34 | 13550321 | WasherValid for ASPERA Frigo HG 700AP | 1 |
| 35 | 16104111 | Selflocking nutValid for ASPERA Frigo HG 700AP | 1 |
| 36 | 108043 | Earth cableValid for ASPERA Frigo HG 700AP | 1 |
| 37 | 12575621 | Selflocking nutValid for ASPERA Frigo HG 700AP | 1 |
| 38 | 12575621 | Selflocking nutValid for ASPERA Frigo HG 700AP | 1 |
| 39 | 107993 | WasherValid for ASPERA Frigo HG 700AP | 1 |
| 40 | 13526070 | Heli coilValid for ASPERA Frigo HG 700AP | 2 |
| 41 | 11288031 | BoltValid for ASPERA Frigo HG 700AP | 2 |
| 42 | 106853 | WasherValid for ASPERA Frigo HG 700AP | 2 |
| 43 | 110381 | ClampValid for ASPERA Frigo HG 700AP | 3 |
| 44 | 124681 | Left, cover completeValid for Sankyo SD 507 | 1 |
| 45 | 121966 | Compressor Sankyo SD507Valid for Sankyo SD 507 | 1 |
| 46 | 122422 | Electro - magnetic clutchValid for Sankyo SD 507 | 1 |
| 47 | 123698 | SupportValid for Sankyo SD 507 | 1 |
| 48 | 124108 | Control belt for compressorValid for Sankyo SD 507 | 1 |
| 49 | 123699 | BracketValid for Sankyo SD 507 | 1 |
| 50 | 123703 | BracketValid for Sankyo SD 507 | 1 |
| 51 | 123704 | BracketValid for Sankyo SD 507 | 1 |
| 52 | 123701 | InsulationValid for Sankyo SD 507 | 2 |
| 53 | 123702 | BushValid for Sankyo SD 507 | 2 |
| 54 | 108283 | WasherValid for Sankyo SD 507 | 4 |
| 55 | 123188 | PinValid for Sankyo SD 507 | 1 |
| 56 | 15214221 | ScrewValid for Sankyo SD 507 | 1 |
| 57 | 16104111 | NutValid for Sankyo SD 507 | 1 |
| 58 | 11496621 | WasherValid for Sankyo SD 507 | 2 |
| 59 | 117969 | Elastic bushValid for Sankyo SD 507 | 2 |
| 60 | 11343821 | ScrewValid for Sankyo SD 507 | 2 |
| 61 | 12642421 | WasherValid for Sankyo SD 507 | 4 |
| 62 | 12575611 | NutValid for Sankyo SD 507 | 2 |
| 63 | 11307021 | ScrewValid for Sankyo SD 507 | 2 |
| 64 | 14496621 | WasherValid for Sankyo SD 507 | 12 |
| 65 | 12574511 | NutValid for Sankyo SD 507 | 4 |
| 66 | 123707 | SpacerValid for Sankyo SD 507 | 1 |
| 66 | 13449521 | StudValid for Sankyo SD 507 | 1 |
| 67 | 12574511 | NutValid for Sankyo SD 507 | 2 |
| 69 | 124333 | Exhaust unionValid for Sankyo SD 507 | 1 |
| 70 | 124335 | Inlet unionValid for Sankyo SD 507 | 1 |
