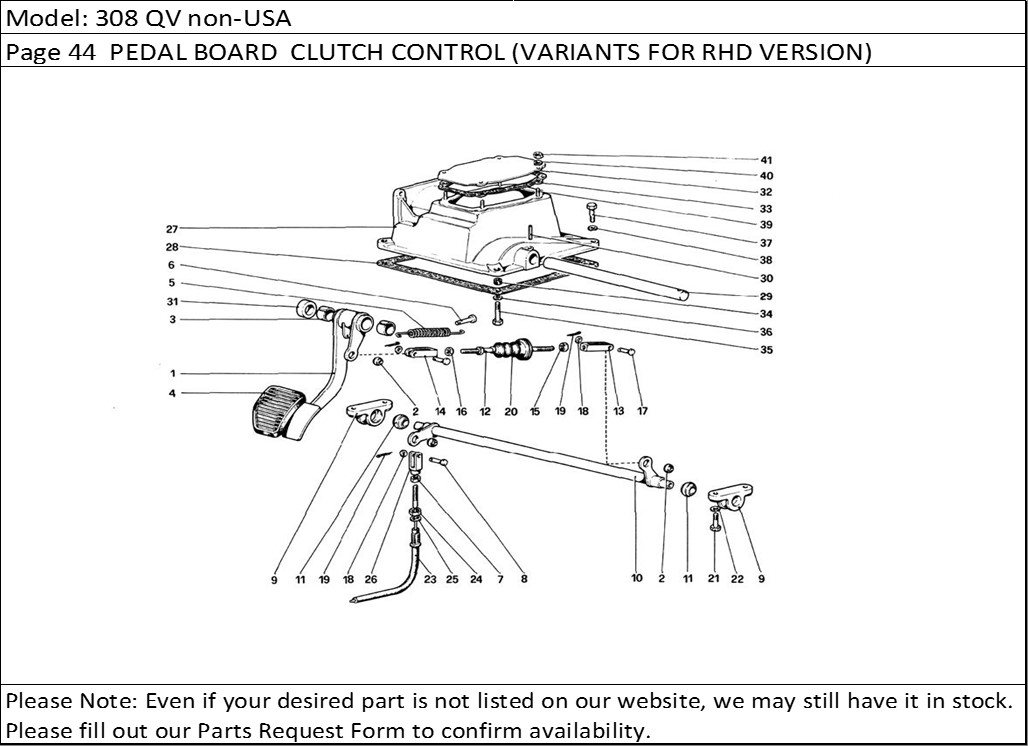

308 QV non-USA Page 44 PEDAL BOARD CLUTCH CONTROL (VARIANTS FOR RHD VERSION)
Product Description
308 QV non-USA Page 44 PEDAL BOARD CLUTCH CONTROL (VARIANTS FOR RHD VERSION)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 116513 | Clutch pedal | 1 |
| 2 | 100423 | Ball joint | 3 |
| 4 | 106949 | Pedal cover | 1 |
| 5 | 117374 | Return spring | 1 |
| 6 | 104896 | Pin | 1 |
| 7 | 100861 | Lockout | 1 |
| 8 | 103218 | Pin | 1 |
| 9 | 106070 | Support | 2 |
| 10 | 106751 | Return camshaft | 1 |
| 11 | 106102 | Ball joint | 2 |
| 12 | 108343 | Tie rod | 1 |
| 13 | 106901 | Fork, left thread | 1 |
| 14 | 106594 | Fork, tight thread | 1 |
| 15 | 16102911 | Nut, left thread | 1 |
| 16 | 16102311 | Nut, right thread | 1 |
| 17 | 10004910 | Pin | 2 |
| 18 | 12639701 | Washer | 3 |
| 19 | 10734201 | Split pin | 3 |
| 20 | 106120 | Bellows | 1 |
| 21 | 16135921 | Bolt | 4 |
| 22 | 12601371 | Washer | 4 |
| 23 | 108342 | Clutch control cable | 1 |
| 24 | 16103611 | Nut | 1 |
| 25 | 12601571 | Washer | 1 |
| 26 | 103575 | Fork | 1 |
| 27 | 106069 | Pedal supponWith assembly no. 107878 | 1 |
| 27 | 107878 | Pedal support, complete | 1 |
| 28 | 106109 | Gaskel | 1 |
| 29 | 104900 | Pin | 1 |
| 30 | 104901 | Plug | 1 |
| 31 | 106110 | Spacer | 1 |
| 32 | 104904 | CoverCar with A.C. excluded | 1 |
| 32 | 112116 | CoverFor car with A.C. | 1 |
| 33 | 104905 | Gaskel | 1 |
| 34 | 106510 | Heli - coil | 2 |
| 35 | 16043621 | Bolt | 2 |
| 36 | 106852 | Washer | 2 |
| 37 | 16139021 | Bolt | 2 |
| 38 | 12601471 | Washer | 2 |
| 39 | 11500021 | Stud | 4 |
| 40 | 106850 | Washer | 4 |
| 41 | 15896211 | Nut | 4 |
