308 QV non-USA Page 101 BODY SHELL OUTER ELEMENTS
Product Description

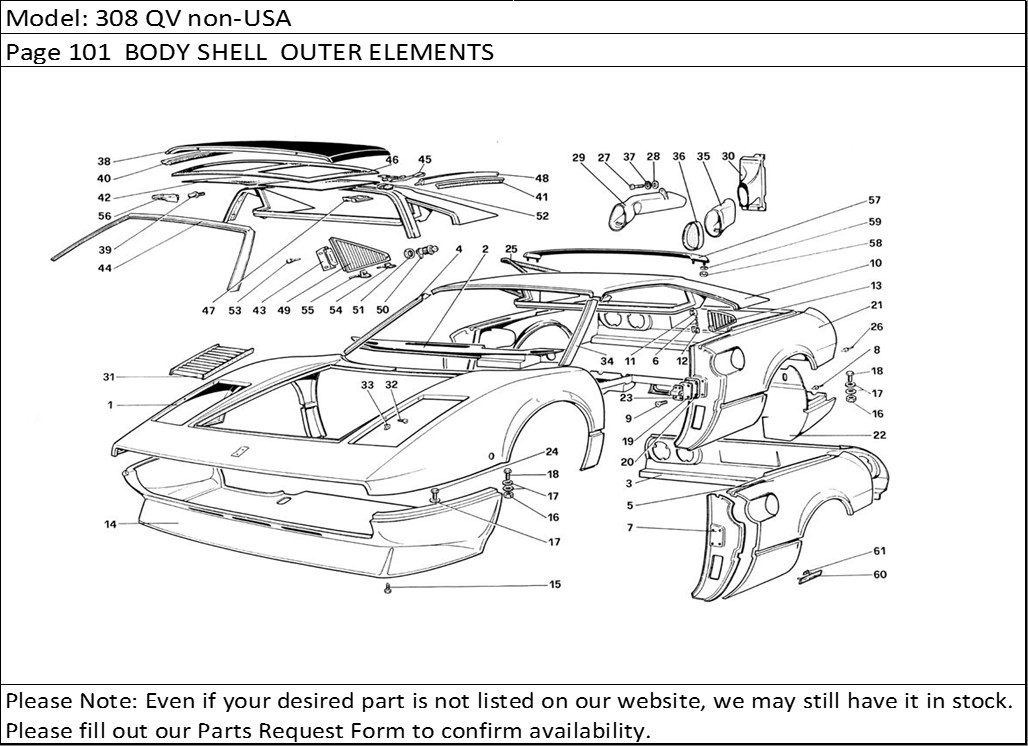

308 QV non-USA Page 101 BODY SHELL OUTER ELEMENTS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 61146100 | Front covering | 1 |
| 2 | 61013800 | Panel LHD | 1 |
| 3 | 61109600 | Covering number plate seat | 1 |
| 4 | 61141100 | Covering for Ril post GTB | 1 |
| 5 | 60359205 | L.H. rear fender GTB | 1 |
| 5 | 60359007 | L.H. rear fender GTS | 1 |
| 5 | 60358900 | R.H. rear fender GTS | 1 |
| 5 | 60359106 | R.H. rear fender GTB | 1 |
| 6 | 60042108 | Hinge pin GTB | 2 |
| 7 | 60216801 | R.H. pillar for fender LHD | 1 |
| 7 | 60891000 | R.H. pillar for fender RHD | 1 |
| 7 | 60216900 | L.H. pillar for fender LHD | 1 |
| 7 | 60891100 | L.H. pillar for fender RHD | 1 |
| 8 | 60159001 | Rivet | 20 |
| 9 | 20287504 | Screw | 8 |
| 10 | 60214806 | Roof covering GTB | 1 |
| 11 | 60040805 | Upper hinge GTB | 1 |
| 12 | 60040706 | Lower hinge GTB | 1 |
| 13 | 60370004 | R.H. grill GTB | 1 |
| 13 | 60337409 | L.H. grill GTB | 1 |
| 14 | 61182900 | Covering front lower - big | 1 |
| 14 | 61183000 | Covering front lower - standard | 1 |
| 15 | 15903801 | Screw for standard covering | 6 |
| 15 | 15645501 | Screw for big covering | 6 |
| 16 | 12574121 | Nut | 22 |
| 17 | 12638101 | Washer | 49 |
| 18 | 10977721 | Screw | 18 |
| 19 | 60163003 | Spacer | 2 |
| 20 | 60602400 | Gasket | 2 |
| 21 | 61109500 | Rear covering GTB - LHD | 1 |
| 21 | 61150400 | Rear covering GTB - RHD | 1 |
| 21 | 61147600 | Rear covering GTS - LHD | 1 |
| 21 | 61151900 | Rear covering GTS - RHD | 1 |
| 22 | 60978600 | Covering rear lower | 1 |
| 23 | 20019204 | L.H. lock striker | 1 |
| 23 | 20019105 | R.H. lock striker | 1 |
| 24 | 10978021 | Screw | 4 |
| 25 | 60528300 | Gasket | 2 |
| 26 | 60225901 | Rivet | 30 |
| 27 | 10902121 | Screw | 2 |
| 28 | 12643721 | Washer | 2 |
| 29 | 61299600 | R.H. air ductCH only | 1 |
| 29 | 60978500 | R.H. air ductCH excluded | 1 |
| 30 | 60222304 | L.H. rear air duct | 1 |
| 31 | 60024205 | L.H. headlamp grill | 1 |
| 31 | 60024106 | R.H. headlamp grill | 1 |
| 32 | 60644100 | Screw | 8 |
| 33 | 60679600 | Clip | 8 |
| 34 | 61141200 | Covering for L.H, post GTB | 1 |
| 35 | 60373602 | L.H. front air duct | 1 |
| 36 | 60200409 | L.H. grillD only | 1 |
| 36 | 60200300 | R.H. grillD Only | 1 |
| 37 | 106850 | Washer | 2 |
| 38 | 61128700 | Sun roof GTS | 1 |
| 39 | 60189008 | Fixing pin front roof GTS | 2 |
| 40 | 60398104 | Gasket GTS | 2 |
| 41 | 60608500 | Gasket GTS | 2 |
| 42 | 61202900 | L.H.. covering GTS | 1 |
| 42 | 61202800 | R.H. covering GTS | 1 |
| 43 | 60325305 | Grill hingle GTS | 2 |
| 44 | 60372700 | Frame work windshield GTS | 1 |
| 45 | 60421500 | Handle roof GTS | 2 |
| 46 | 61203000 | Covering GTS | 1 |
| 47 | 60500500 | Rear bracket roof GTS | 2 |
| 48 | 60608300 | R.H. gutter GTS | 1 |
| 48 | 60608400 | L.H. gutter GTS | 1 |
| 49 | 60336302 | L.H. grill GTS | 1 |
| 49 | 60336203 | R.H. grill GTS | 1 |
| 50 | 60075009 | Block grill GTS | 2 |
| 51 | 60066404 | Ring nut grill GTS | 2 |
| 52 | 60395506 | Handle protection GTS | 2 |
| 53 | 60892600 | Grommet GTS | 4 |
| 54 | 20106001 | Grommet GTS | 2 |
| 55 | 60551400 | Grommet GTS | 2 |
| 56 | 60336807 | Front bracket roof GTS | 2 |
| 57 | 61024700 | Spoyler GTB | 1 |
| 57 | 61290200 | Spoyler GTS | 1 |
| 58 | 12574211 | Nut | 4 |
| 59 | 12643701 | Washer | 4 |
| 60 | 20043105 | Ornament "Disegno Pininfarina" | 1 |
| 61 | 60324506 | Clip | 2 |
