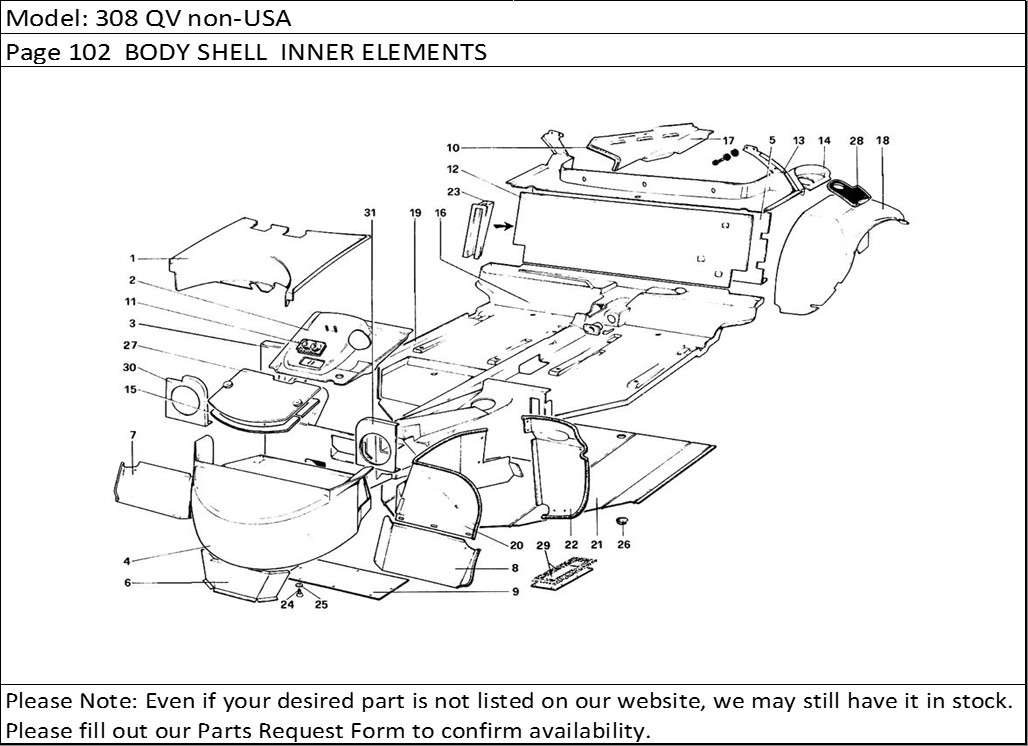

308 QV non-USA Page 102 BODY SHELL INNER ELEMENTS
Product Description
308 QV non-USA Page 102 BODY SHELL INNER ELEMENTS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 60351806 | Panel wheel compartment RHD | 1 |
| 1 | 60350501 | Panel wheel compartment LHD | 1 |
| 2 | 60191202 | Front additional panel RHD | 1 |
| 3 | 60044609 | Front panel GTB - LHDUp to car no. 52419 | 1 |
| 3 | 60048907 | Front panel GTB ? RHD Up to car no. 52420 | 1 |
| 3 | 61618000 | Front panel GTS ? LHDFrom car no. 52423 | 1 |
| 3 | 61617800 | Front panel GTS - RHDFrom car no. 52424 | 1 |
| 3 | 60327400 | Front panel GTS - RHDUp to car no. 52422 | 1 |
| 3 | 60327301 | Front panel GTS - LHD Up to car no. 52421 | 1 |
| 3 | 61617600 | Front panel GTB - RHDFrom car no. 52422 | 1 |
| 3 | 61618600 | Front panel GTB - LHDFrom car no. 52421 | 1 |
| 4 | 60552900 | Housing for wheel | 1 |
| 5 | 61194200 | Panel on engine comp. side GTS - LHD | 1 |
| 5 | 61194300 | Panel on engine comp. side GTS - RHD | 1 |
| 6 | 60351707 | Battery protection | 1 |
| 7 | 60298304 | R.H. front gravel guard - standard | 1 |
| 7 | 60307501 | R.H. front gravel guard - oversize | 1 |
| 8 | 60307600 | L.H. front gravel guard - oversize | 1 |
| 8 | 60298403 | L.H. front gravel guard - standard | 1 |
| 9 | 60208600 | Panel RHD | 1 |
| 9 | 60059706 | Panel LHD | 1 |
| 10 | 60251808 | Gasket | 2 |
| 11 | 60054905 | Fair - lead for A.C. pipes LHD | 1 |
| 11 | 60197704 | Fair - lead for A.C. pipes RHD | 1 |
| 12 | 61081000 | Panel GTS - RHD | 1 |
| 12 | 61193700 | Panel on passenger comp. side GTB | 1 |
| 12 | 60850800 | Panel GTS -LHD | 1 |
| 13 | 61010800 | Plane rear window GTB | 1 |
| 13 | 61128400 | Plane rear window GTS | 1 |
| 14 | 60342904 | Fuel filler chamber GTS | 1 |
| 14 | 60441201 | Fuel filler chamber GTB | 1 |
| 15 | 60031101 | Gasket | 1 |
| 16 | 40169005 | Bushing RHD | 1 |
| 16 | 60084704 | Bushing LHD | 1 |
| 17 | 60956900 | Inner covering R.H. fins | 1 |
| 17 | 60956800 | Inner covering L.H. fins | 1 |
| 18 | 60091402 | L.H. rear wheelhouse | 1 |
| 18 | 60091303 | R.H. rear wheelhouse | 1 |
| 19 | 60063302 | Resin flat bed GTB - RHD | 1 |
| 19 | 60327004 | Resin flat bed GTS - RHD | 1 |
| 19 | 60880700 | Resin flat bed GTB - LHD | 1 |
| 19 | 60880800 | Resin flat bed GTS - LHD | 1 |
| 20 | 61012900 | L.H. front wheelhouse | 1 |
| 20 | 61012800 | R.H. front wheelhouse | 1 |
| 21 | 60880900 | Under flat bed - LHD | 1 |
| 21 | 60270006 | Under flat bed - RHD | 1 |
| 22 | 60377009 | R.H. gravel guard GTS - RHD | 1 |
| 22 | 60308400 | L.H. gravel guard GTS - LHO | 1 |
| 22 | 60377108 | L.H. gravel guard GTS - RHD | 1 |
| 22 | 60312907 | L.H. gravel guard GTB - RHD | 1 |
| 22 | 60259702 | L.H. gravel guard GTB - LHD | 1 |
| 22 | 60308301 | R.H. gravel guard GTS - LHD | 1 |
| 22 | 60312808 | R.H. gravel guard GTB - RHD | 1 |
| 22 | 50259603 | R.H. gravel guard GTB - LHD | 1 |
| 23 | 60241908 | Protection for pipes GTB - RHD | 1 |
| 23 | 60093903 | Protection for pipes GTB - LHD | 1 |
| 24 | 20146601 | Screw | 6 |
| 25 | 12643701 | Washer | 6 |
| 26 | 40305203 | Plug under flat bed | 1 |
| 27 | 60279809 | Protection cover for battery | 1 |
| 28 | 60134202 | Gasket for filler | 1 |
| 29 | 60225000 | Cover ? RHD only | 1 |
| 30 | 61017100 | R.H. panel | 1 |
| 31 | 61017200 | L.H. panel | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
