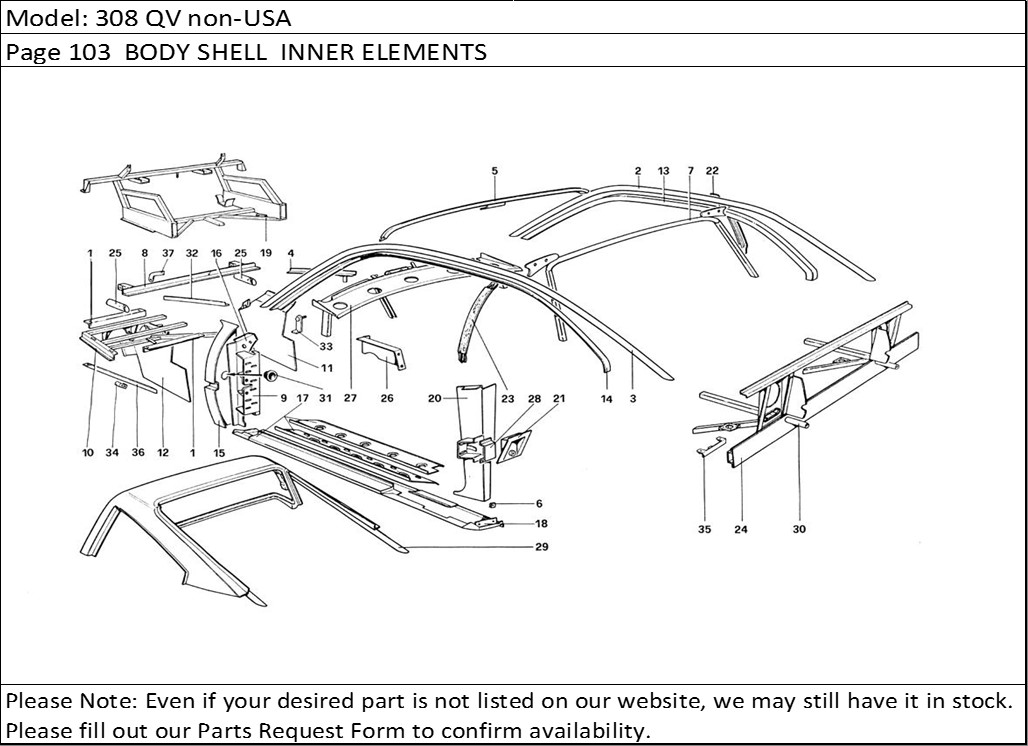

308 QV non-USA Page 103 BODY SHELL INNER ELEMENTS
Product Description
308 QV non-USA Page 103 BODY SHELL INNER ELEMENTS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| - | 61010500 | Roof frame assembly GTB | 1 |
| 1 | 60652200 | Bracket for headlamps | 4 |
| 3 | 61010100 | L.H. rail GTB | 1 |
| 4 | 60350204 | R.H. stiffening front bonnet RHD | 1 |
| 4 | 60350006 | R.H. stiffening front bonnet LHD | 1 |
| 5 | 60371309 | Front rib for roof GTB | 1 |
| 6 | 60361801 | Clip | 4 |
| 7 | 60296001 | Rear rib for roof | 1 |
| 8 | 60301504 | Front stiffening front bonnet | 1 |
| 9 | 60285202 | Post fixing hinge | 2 |
| 10 | 60651900 | L.H. front frame | 1 |
| 10 | 60651800 | R.H. front frame | 1 |
| 11 | 61181900 | R.H. shield panel radiator LHD | 1 |
| 11 | 61182100 | R.H. shield panel radiator RHD | 1 |
| 12 | 60348802 | R.H. shield panel radiator RHD | 1 |
| 12 | 60304201 | L.H. shield panel radiator LHD | 1 |
| 13 | 60260106 | Sheet R.H. rail GTB | 1 |
| 14 | 60260007 | Sheet L.H. rail GTB | 1 |
| 15 | 60252400 | Hinge post R.H. door | 1 |
| 15 | 60252509 | Hinge post L.H. door | 1 |
| 16 | 60397205 | Sheet for L.H. pillar GTS | 1 |
| 16 | 61009800 | Sheet for R.H. pillar GTB | 1 |
| 16 | 60397106 | Sheet for R.H. pillar GTS | 1 |
| 16 | 61009900 | Sheet for L.H. pillar GTB | 1 |
| 17 | 60303203 | Covering, R.H. door sill GTB | 1 |
| 17 | 60419504 | Covering, R.H. door sill GTS | 1 |
| 17 | 60303302 | Covering, L.H. door sill GTB | 1 |
| 17 | 60419603 | Covering, L.H. door sill GTS | 1 |
| 18 | 60003803 | Outer covering, R.H. door sill | 1 |
| 18 | 60003902 | Outer covering, L.H. door sill | 1 |
| 19 | 95406068 | Front frame | 1 |
| 20 | 60421203 | R.H. panel GTS | 1 |
| 20 | 60421302 | L.H. panel GTS | 1 |
| 20 | 60302304 | L.H. panel GTB | 1 |
| 20 | 60302403 | R.H. panel GTB | 1 |
| 21 | 60347705 | Support | 2 |
| 22 | 60260403 | R.H. post complete GTB | 1 |
| 23 | 60260502 | L.H. post complete GTB | 1 |
| 24 | 61192500 | Rear frame (with bracket 30) LHD | 1 |
| 24 | 61194500 | Rear frame (with bracket 30) RHD | 1 |
| 25 | 50118908 | Bracket for front bumber | 2 |
| 26 | 60193109 | Support RHD | 1 |
| 26 | 60106903 | Support LHD | 1 |
| 27 | 60351003 | Stiffening, under windshield LHD | 1 |
| 27 | 60351103 | Stiffening, under windshield RHD | 1 |
| 28 | 60302601 | Rear bracket for support lock striker | 2 |
| 29 | 61128800 | Roof assembly GTS | 1 |
| 30 | 60064508 | Bracket for rear bumper | 2 |
| 31 | 60284304 | Plug | 2 |
| 32 | 60350402 | L.H. stiffening front bonnet RHD | 1 |
| 32 | 60397908 | L.H. stiffening front bonnet LHD | 1 |
| 33 | 61189000 | Horns support - CH only | 1 |
| 33 | 61181300 | Horns support - CH excluded | 1 |
| 34 | 60289303 | Support front wheelhouse | 2 |
| 35 | 61176200 | Bracket fixing plate for module | 1 |
| 36 | 60064201 | Front support frame | 2 |
| 37 | 61181400 | Bracket fixing grill | 2 |
