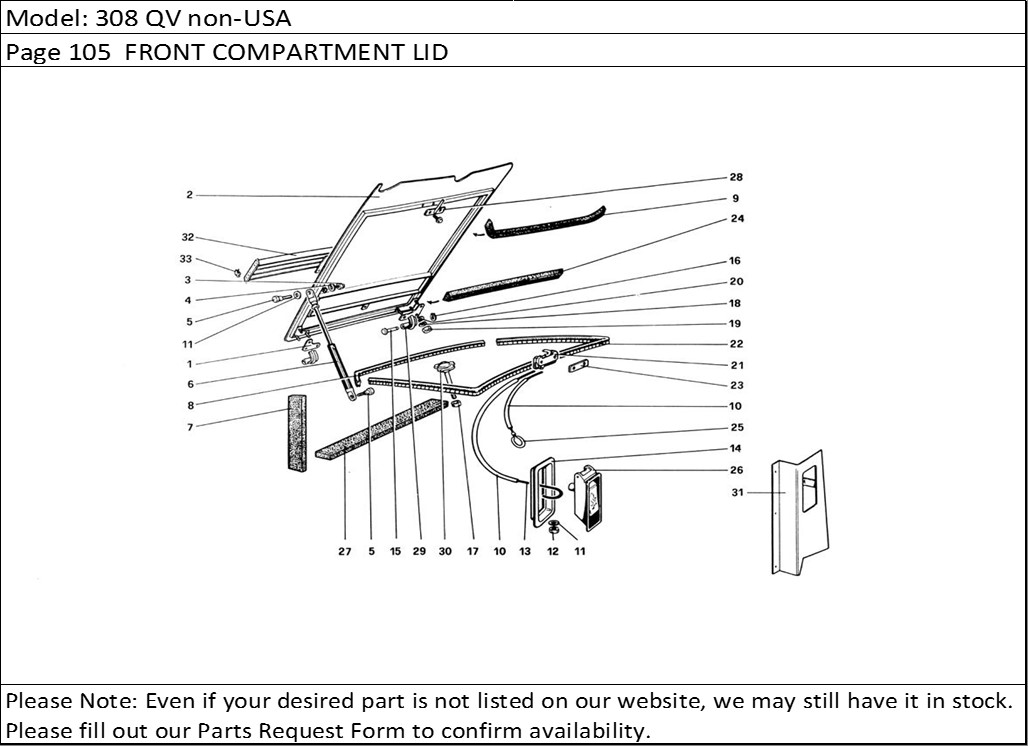

308 QV non-USA Page 105 FRONT COMPARTMENT LID
Product Description
308 QV non-USA Page 105 FRONT COMPARTMENT LID
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 60275401 | Hinge plate | 2 |
| 2 | 61109700 | Bonnet LHD | 1 |
| 3 | 12574111 | Nut | 1 |
| 4 | 12638101 | Washer | 1 |
| 5 | 40161903 | Pin | 2 |
| 6 | 60118007 | Support | 1 |
| 7 | 60250701 | Side gasket radiatorUp to exhaustion | 2 |
| 7 | 60773500 | Side gasket radiatorOn exhaustion no. 60250701 | 2 |
| 8 | 60428901 | Gasket | 1 |
| 9 | 60422904 | Gasket | 1 |
| 10 | 60126604 | Sheath | 2 |
| 11 | 12638101 | Washer | 2 |
| 12 | 15896411 | Nut | 1 |
| 12 | 61041500 | Insulation | 1 |
| 13 | 60126505 | Cable | 1 |
| 14 | 60765500 | Flange GTB | 1 |
| 15 | 60061504 | Pin | 2 |
| 16 | 60962400 | Seeger | 2 |
| 17 | 61609500 | SpacerOn exhaustion n. 60553000 | 1 |
| 17 | 60553000 | SpacerUp to exhaustion | 1 |
| 18 | 10516673 | Washer | 6 |
| 19 | 16100811 | Nut | 6 |
| 20 | 12646701 | Washer | 6 |
| 21 | 60277407 | Lock | 1 |
| 22 | 60388204 | Gasket | 1 |
| 23 | 60276508 | Place | 1 |
| 24 | 40150104 | Gasket | 1 |
| 25 | 60126703 | Safety cable | 1 |
| 26 | 61756700 | Handle bonnet | 1 |
| 27 | 60773400 | GasketOn exhaustion n. 40231 805 | 1 |
| 27 | 40231805 | GasketUp to exhaustion | 1 |
| 28 | 61090400 | Pin | 1 |
| 29 | 60275302 | Hing arm | 2 |
| 30 | 61609400R | Wind nutOn exhaustion n. 60276300 | 1 |
| 30 | 60276300 | Wind nutUp to exhaustion | 1 |
| 30 | 61609400 | Wind nutOn exhaustion n. 60276300 | 1 |
| 31 | 60640200 | Handle support GTS - LHD | 1 |
| 31 | 60640100 | Handle support GTS- RHD | 1 |
| 32 | 61109800 | GrillUp to exhaustion | 1 |
| 32 | 61672600 | GrillOn exhaustion n. 61109800 | 1 |
| 33 | 60679600 | Clip | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
