Home > 308 QV non-USA Page 107 DOORS

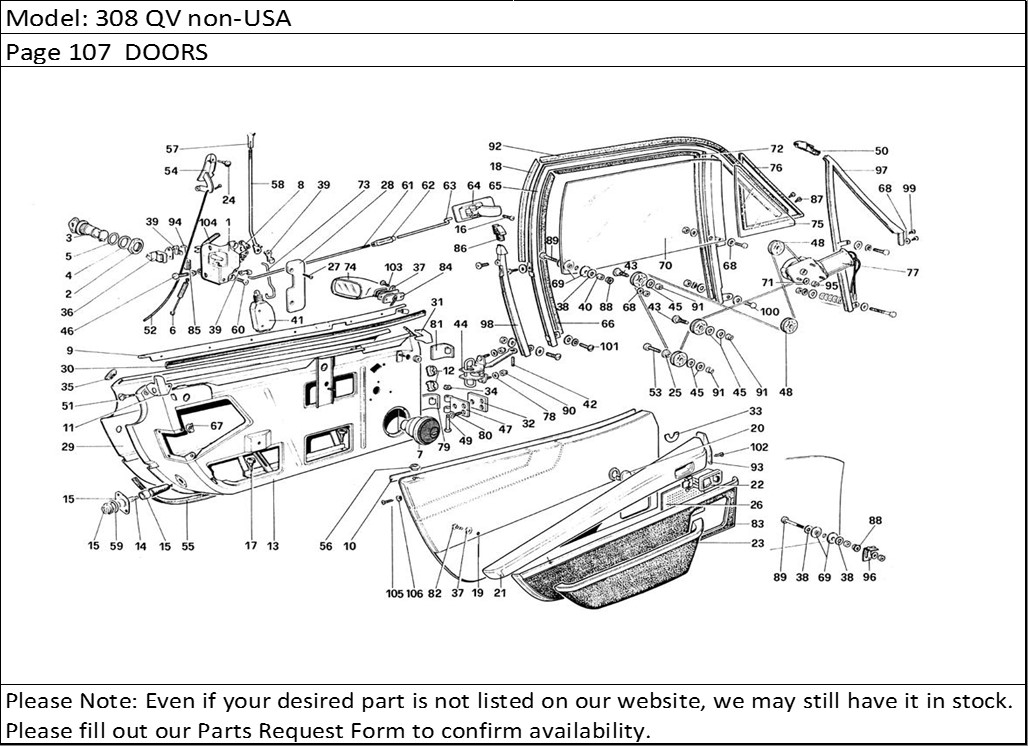

308 QV non-USA Page 107 DOORS

Product Description

308 QV non-USA Page 107 DOORS

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	20170809	Door lock, R.H.	1
1	20170908	Door lock, L.H.	1
3	20035705	Block, L.H. door lock	1
3	20035606	Block, R.H. door lock	1
4	20035804	Spacer	2
5	20181103	Gasket	2
6	60046000	Return spring, handle	2
7	61717800	Loud-speaker-On exhaustion 60870900	2
7	60870900	Loud - speaker - To exhaustion	2
7	60507900	Loud -speaker - Up to 31-10-83	2
8	60813500	Clip	2
9	60415106	R.H. moulding	1
9	61269700	Moulding L.H. armrestLHD from 110 83 RHD from 1-10-83	11
9	61141600	Moulding L.H. armrestLHD up to 30 6-83-RHO up to 30-9-8:	1
9	60415205	L.H. moulding	1
10	60136207	Inner gasket	2
11	60269305	Rear L.H. moulding, GTB	1
11	60602000	Rear L.H. moulding, GTS	1
11	60269206	Rear R.H. moulding, GTB	1
11	60601900	Rear R.H. moulding, GTS	1
12	40127409	Plug	3
13	61272700	L.H. door (*) GTS Up to 30 - 6 - 83	1
13	61200800	R.H. door (*)GTBUp to 31-10-83 RHD	1
13	61200900	L.H. door (*) GTB Up to 31-10-83 RHD	1
13	61443900	R. H. door (*) GTBFrom 1-1 1-83 RHD	1
13	61200400	R.H. door (*) GTBUp to 31-10-83 LHD	1
13	61272600	R.H. door (*) GTSUp to 30-6-83	1
13	61271600	R.H. door (*) GTS Up to 31-10-83	1
13	61415800	R.H. door (*) GTSFrom 1-1 1-83	1
13	61419600	R.H.door(*) GTB From 1-11-83 LHD	1
13	61419700	L.H. door (*) GTBFrom 1-1 1-83 LHD	1
13	61415900	L.H. door (*) GTSFrom 1-1 1-83	1
13	61200500	L.H. door (*)GTBUp to 31-10-83 LHD	1
13	61271700	L.H. door (*) GTSUp to 31-10-83	1
13	61444000	L.H. door (*) GTB From 1-1 1-83 RHD	1
14	101525	Lamp	2
15	60291200	Open- door marker light	2
16	15903902	Screw	2
17	40195703	Limit block for glass	4
18	60278405	Gasket GTB	2
19	60746700	L.H. covering	1
19	60746600	R.H. covering	1
19	61428500	L.H. covered panel From 1-11-83	1
19	60763800	R.H. covered panel Up to 31-1 0-83	1
19	60763900	L.H. covered panel Up to 31-10-83	1
19	61428400	R.H. covered panel Up to 1-11-83	1
20	30063100	Plug	2
21	61270700	Armrest L H. with coveringFrom 1-10 83 RHD	1
21	61055400	Armrest R.H. with coveringUp to 30-9-83 RHD	1
21	61270600	Armrest R.H. with coveringFrom 1-10-83 RHD	1
21	60067402	R.H. covering	1
21	61269500	Armrest L.H. with coveringFrom T-7-B3 LHD	1
21	60760300	Armrest L.H. with coveringUp to 30-9-83 RHD	1
21	61269400	Armrest R.H. with coveringFrom 1-7-83 LHD	1
21	61055200	Armrest L.H. with coveringUp to 30-6-83 LHD	1
21	60760700	Armrest R.H. with coveringUp to 30-6-83 LHD	1
21	60067501	L.H. covering	1
22	61111300	Control switch for outside mirror	1
23	60803900	Pocket, L.H. with covering	1
23	60803800	Pocket, R.H. with covering	1
23	60753000	Covering, R.H.	1
23	60753100	Covering, L.H.	1
24	61083900	Rubber GTS	2
24	20043300	Rubber GTB	2
25	60441607	Bushing	4
26	61173600	Moulding R.H. From 1-11-83	1
26	61430600	Moulding L.H. From 1-11-83	1
26	60745600	Moulding L.H.Up to 31-10-83	1
26	60745500	Moulding R.H.Up to 31-10-83	1
27	15908502	Screw Icr lock moulding	4
28	60304904	Moulding on L.H. lock	1
28	60304805	Moulding on R.H. lock	1
29	61201400	Left outer coveting GTB - LHD	1
29	61201700	Right outer covering GTB - RHD	1
29	61201800	Left outer covering GTB - RHD	1
29	61201900	Right outer covering GTS - RHD	1
29	61201300	Right outer covering GTB - LHD	1
29	61202000	Lelt outer covering GTS - RHD	1
29	61201500	Right outer covering GTS - LHD	1
29	61201600	Left outer covering GTS - LHD	1
30	60827600	Outsider gasket, L.H.	1
30	60827500	Outsider gasket, R.H.	1
31	60269008	Front R.H. moulding GTB	1
31	60602200	Front L.H. moulding GTS	1
31	60602100	Front R.H. moulding GTS	1
31	60269107	Front L.H. moulding GTB	1
32	60269404	Fixing plate for fixed hinge	4
33	60138807	R.H. moulding for inner handle	1
33	60133906	L.H. moulding for inner handle	1
34	11065775	Seeger ring	2
35	60567000	Gasket, handle seat	2
36	60606600	L.H. block	1
36	60606500	R.H. block	1
37	106849	Washer	6
38	12640601	Washer	8
39	40063208	Clip, lower safety rod	8
40	60441409	Spacer	4
41	61329500	Locking device, L.H. door	1
41	61329400	Locking device, R.H. door	1
42	60730200	Pin	2
43	60078805	Pin for upper pulleys	6
44	61260800	Tie rod	2
45	12644401	Washer	12
46	60088705	Special screw for cable	2
47	60251204	Fixed hinge	4
48	60398807	Pulley GTS	10
48	60056306	Pulley GTB	10
49	20074100	Pin for hinge	4
50	60265907	Upper L.H. terminal GTS	1
50	60265808	Upper R.H. terminal GTS	1
51	60273901	Pin	2
52	60116803	Cable for door handle	2
53	10902421	Pin for lower fixed pulleys GTS	4
53	14141410	Pin for lower fixed pulleys GTB	4
54	60271004	Outsider handle, R.H.	1
54	60271103	Outsider handle, L.H.	1
55	60159605	Lower gasket	2
56	40162307	Bushing for safety rod	2
57	20170403	Knob for safety rod	2
58	61384800	Safety rod, upper, L.H.	1
58	60803000	Safety rod, upper, R.H.	1
59	60591000	Gasket	2
60	20298303	Screw	8
61	40132706	Rear half rod	2
62	60088606	Sleeve	2
63	60305208	Front half rod	2
64	60035607	Door handle, inside	2
65	61443600	L.H. glassframe-GTB From 1-11-83	1
65	60263506	R.H.glassframe- GTB Up to 31-10-83	1
65	60263605	L.H. glass frame -GTB Up to 31-10-83	1
65	61443500	R.H.glassframe-GTB From 1-11-83	1
66	60302205	Channel rear glass GTB	2
66	60343308	Channel rear glass GTS	2
67	20037008	Clip, door lock	8
68	12643701	Washer	10
69	50086909	Bushing	8
70	60263902	Mobile glass, L.H. GTB	1
70	60162409	Mobile glass, R.H. GTS	1
70	60263803	Mobile glass, R.H. GTB	1
70	60162508	Mobile glass, L.H. GTS	1
71	12638101	Washer	6
72	60343407	Channel, front glass GTS	2
72	60302106	Channel, front glass GTB	2
73	61328500	Safety rod, lower L.H.	1
73	61328600	Safety rod, lower R.H.	1
74	61021900	R.H. rear mirror LHD	1
74	61021800	L.H. rear mirror LHD	1
74	61172700	L.H. rear mirror RHD	1
74	61172800	R.H. rear mirror RHD	1
75	60264405	Fixed glass, R.H.	1
75	60264504	Fixed glass, L.H.	1
76	60519100	Weatherstrip, fixed glass GTS	2
76	60322500	Weatherstrip, fixed glass GTB	2
77	60030509	Window regulator	2
78	60711900	Washer	4
79	50031608	Mobile hinge, lower	2
80	50206408	Screw	12
81	60265501	Mobile hinge, upper L.H. door	1
81	60265402	Mobile hinge, upper R.H. door	1
82	13274818	Screw for armrest	2
83	61433500	Lower covering, R.H. panel	1
83	61433600	Lower covering, L.H. panel	1
84	61022000	Bracket fixing rear mirror	2
85	40133902	Terminal for rod	2
86	60266103	L.H. terminal GTS	1
86	60266004	R.H. terminal GTS	1
87	20286704	Screw, fixing front frame GTB	4
88	13832101	Nut, glass to cable	4
89	60657800	Screw, glass to cable	4
90	12574111	Nut	4
91	12575411	Nut	10
92	60343100	Gasket GTS	2
92	60278504	Gasket GTB	2
93	61141500	Moulding R.H. armrestLHD up to 30 6-83-RHD up to 30-9-83	1
93	61269600	Moulding R.H. armrestLHD from 1 7-83 - RHD from 1-10-83	1
94	60709000	Rod	2
95	12577811	Nut	6
96	60441300	Bracket GTS	2
97	60292000	Front glass frame, R.H. GTS	1
97	60292109	Front glass frame, L.H. GTS	1
98	60292307	Rear glass frame, L.H. GTS	1
98	60292208	Rear glass frame, R.H. GTS	1
99	60815200	Screw, fixing front frame GTS	4
100	10902621	Screw	2
101	20030003	Screw	2
102	17685206	Screw	4
103	14304220	Screw	4
104	60566200	Gasket	2
105	15908806	Screw	2
106	12611606	Washer	10
