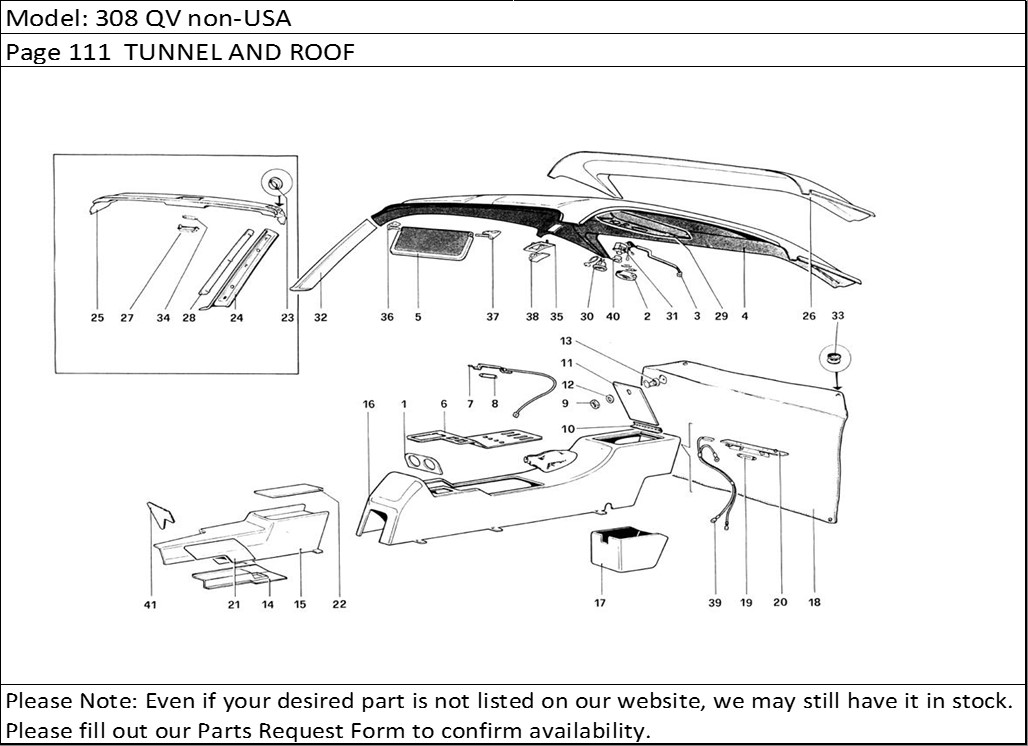

308 QV non-USA Page 111 TUNNEL AND ROOF
Product Description
308 QV non-USA Page 111 TUNNEL AND ROOF
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 60793400 | Plate with covering | 1 |
| 2 | 60811000 | Roof light GTB | 1 |
| 3 | 117131 | Wires for interior spotlight GTB | 1 |
| 4 | 60995800 | Covering GTB | 1 |
| 4 | 61113000 | Roof with covering GTB | 1 |
| 5 | 61003900 | Visor for driver GTB | 1 |
| 5 | 61004000 | Visor for passenger GTB | 1 |
| 5 | 60992900 | Visor for driver GTS | 1 |
| 5 | 60993000 | Visor for passenger GTS | 1 |
| 6 | 60754200 | Panel instruments with coveringLHD | 1 |
| 6 | 60809100 | Panel instruments with coveringRHD | 1 |
| 6 | 60808500 | Covering RHD | 1 |
| 6 | 60746400 | Covering LHD | 1 |
| 7 | 60040409 | Instruments light | 1 |
| 8 | 40143307 | Lamp | 1 |
| 9 | 60066404 | Ring nut GTB | 1 |
| 10 | 60075405 | Hinge lid GTB | 1 |
| 11 | 60755100 | Glove box lid GTB | 1 |
| 12 | 60124609 | Washer GTB | 1 |
| 13 | 60075009 | Lock for glove box GTB | 1 |
| 14 | 60881200 | Cover for accelerator padel LHD | 1 |
| 15 | 60808700 | Covering RHD | 1 |
| 15 | 60792400 | Covering LHD | 1 |
| 15 | 60881100 | Front tunnel with coveringLHD | 1 |
| 15 | 60809300 | Front tunnel with coveringRHD | 1 |
| 16 | 60809200 | Central tunnel with covering GTBRHD | 1 |
| 16 | 60810100 | Covering GTBRHD | 1 |
| 16 | 60796200 | Covering GTBLHD | 1 |
| 16 | 60812100 | Central tunnel with covering GTSRHD | 1 |
| 16 | 60812300 | Covering GTSRHD | 1 |
| 16 | 61263900 | Central tunnel with covering GTS LHD | 1 |
| 16 | 60793100 | Covering GTS LHD | 1 |
| 16 | 60795700 | Central tunnel with covering GTBLHD | 1 |
| 17 | 60076601 | Covering GTB | 1 |
| 17 | 60075200 | Glove box with covering GTB | 1 |
| 18 | 60418209 | Glove for sun roof GTS | 1 |
| 19 | 60126307 | Lamp GTB | 1 |
| 20 | 60068103 | Glove box lamp GTB | 1 |
| 21 | 60881400 | Tunnel guard - LHD | 1 |
| 21 | 60159902 | Tunnel guard - RHD | 1 |
| 22 | 60793200 | Plane glove box seatLHD | 1 |
| 22 | 60821400 | Plane glove box seatRHD | 1 |
| 23 | 60342607 | Bushing GTS | 2 |
| 24 | 60356805 | L.H. moulding with covering GTS | 1 |
| 24 | 60356706 | R.H. moulding with covering GTS | 1 |
| 25 | 61168400 | Moulding with covering GTS | 1 |
| 25 | 60354909 | Covering GTS | 1 |
| 26 | 61133800 | Covering GTS | 1 |
| 26 | 61134600 | Moulding with covering for roll-bar GTS | 1 |
| 27 | 60326709 | Roof light GTS | 1 |
| 28 | 60355906 | R.H. moulding with covering GTS | 1 |
| 28 | 60355807 | L.H. moulding with covering GTS | 1 |
| 29 | 60998300 | Moulding with covering for spot GTB | 1 |
| 29 | 60996600 | Covering GTB | 1 |
| 30 | 60811100 | Adjustable lamp GTB | 1 |
| 31 | 60810900 | Switch roof lamps GTB | 2 |
| 32 | 60154002 | Covering GTB | 2 |
| 32 | 61113400 | L.H. moulding GTB | 1 |
| 32 | 61113300 | R.H. moulding GTB | 1 |
| 33 | 60727200 | Knob for cover GTS | 4 |
| 34 | 50100205 | Lamp GTS | 1 |
| 35 | 61115200 | Moulding clothes-hook GTB | 2 |
| 36 | 61115000 | R.H. fixing visor pin | 2 |
| 37 | 61115100 | L.H. fixing visor pin | 2 |
| 38 | 61116000 | Clothes hook GTB | 2 |
| 39 | 117014 | Cables GTB | 1 |
| 40 | 60794100 | Bushing for switch GTB | 2 |
| 41 | 60511000 | ToeboardRHD | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
