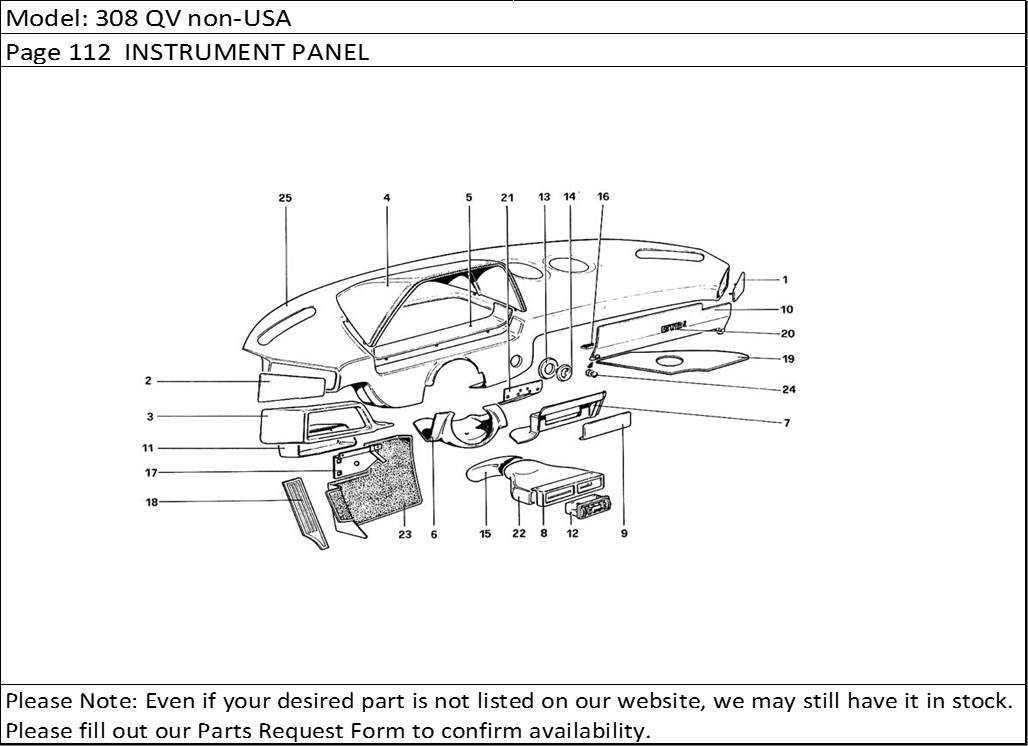

308 QV non-USA Page 112 INSTRUMENT PANEL
Product Description
308 QV non-USA Page 112 INSTRUMENT PANEL
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 60069408 | RH moulding with covering | 1 |
| 2 | 60069507 | LH moulding with covering | 1 |
| 3 | 60806800 | Moulding with coveringRHD | 1 |
| 3 | 60807000 | CoveringRHD | 1 |
| 3 | 60752300 | Moulding with coveringLHD | 1 |
| 4 | 60066909 | Dashboard visor with covering | 1 |
| 4 | 60066800 | Covering | 1 |
| 5 | 60069804 | Moulding with covering | 1 |
| 6 | 60092103 | Cover for steering column with covering | 1 |
| 7 | 61678200 | Radio board with coveringLHD - From car no 52189 | 1 |
| 7 | 60068707 | Radio board with coveringLHD - Up to car no. 52187 | 1 |
| 7 | 61679900 | Radio board with coveringRHD - From car no 52189 | 1 |
| 7 | 60194909 | Radio board with coveringRHD - Up to car no. 52187 | 1 |
| 8 | 60375409 | Conveyor A.C.LHD - up to 30.04.84 | 1 |
| 8 | 60375409 | Conveyor A.C.RHD | 1 |
| 8 | 61679000 | Conveyor A.C.LHD - From 01.05.84 | 1 |
| 9 | 60146206 | Radio board with covering | 1 |
| 10 | 61152000 | Lid with coveringRHD | 1 |
| 10 | 60078706 | Outside CoveringLHD | 1 |
| 10 | 61679700 | Lid GTSFrom 01.05.84 - LHD | 1 |
| 10 | 61678300 | Lid GTBFrom 01.05.84 - LHD | 1 |
| 10 | 61133700 | Lid GTBUp to 30.04.84 - LHD | 1 |
| 10 | 61136000 | Lid GTSUp to 30.04.84 - LHD | 1 |
| 10 | 61150500 | Lid with coveringRHD | 1 |
| 10 | 60807200 | Outside CoveringRHD | 1 |
| 11 | 60752500 | Glove box with coveringLHD | 1 |
| 11 | 60806900 | Glove box with coveringRHD | 1 |
| 12 | 60124302 | Air outlet A.C | 2 |
| 13 | 60164101 | Ring Nut | 1 |
| 14 | 60164001 | Moulding for ignition key opening | 1 |
| 15 | 60133204 | A.C. duct | 1 |
| 16 | 50101708 | Securing blockUp to 30.04.84 | 4 |
| 17 | 61179400 | Support for blocksRHD | 1 |
| 17 | 61106700 | Support for blocksLHD | 1 |
| 18 | 61352500 | ToeboardValid for GTB | 1 |
| 18 | 61361400 | ToeboardValid for GTS | 1 |
| 19 | 60143708 | LH Carpet | 1 |
| 19 | 60143609 | RH Carpet | 1 |
| 20 | 61136500 | GTS mask | 1 |
| 20 | 61133300 | GTB mask | 1 |
| 21 | 60094109 | Support for blocksLHD | 1 |
| 21 | 60196508 | Support for blocksRHD | 1 |
| 22 | 60375300 | AC ConveyorRHD | 1 |
| 22 | 60375201 | AC ConveyorLHD | 1 |
| 23 | 61352400 | Carpet under pedalsGTB - LHD | 1 |
| 23 | 61361300 | Carpet under pedalsGTS - LHD | 1 |
| 23 | 61365200 | Carpet under pedalsGTB - RHD | 1 |
| 23 | 61365700 | Carpet under pedalsGTS - RHD | 1 |
| 24 | 60727200 | Knob fixing lidFrom 01.05.84 | 2 |
| 25 | 60194404 | CoveringRHD | 1 |
| 25 | 61796400 | Panel with coveringLHD - From 01.02.85 | 1 |
| 25 | 61678100 | Panel with coveringLHD - From 01.05.84 | 1 |
| 25 | 61271000 | Panel with coveringRHD - From 01.10.83 | 1 |
| 25 | 61270400 | Panel with coveringLHD - From 01.07.83 | 1 |
| 25 | 61796600 | Panel with coveringRHD - From 01.02.85 | 1 |
| 25 | 60303500 | Panel with coveringLHD - up to 30.06.83 | 1 |
| 25 | 60194107 | Panel with coveringRHD - Up to 30.09.83 | 1 |
| 25 | 60068806 | CoveringLHD | 1 |
| 52 | 60998900 | Complete moulding for windshield | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
