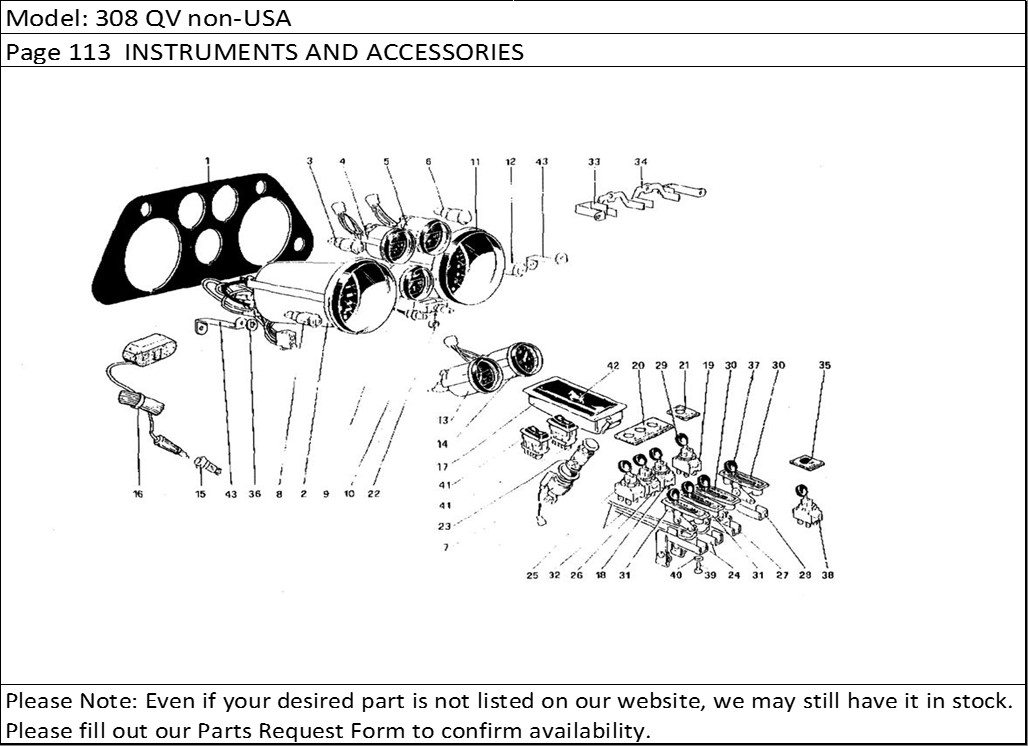

308 QV non-USA Page 113 INSTRUMENTS AND ACCESSORIES
Product Description
308 QV non-USA Page 113 INSTRUMENTS AND ACCESSORIES
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 60768200 | Instruments plate | 1 |
| 2 | 121469 | Speedometer On exhaustion 118604, LHD - ZA - NZ only RHD, CH excluded | 1 |
| 2 | 118604 | Speedometer Up to exhaustion, LHD - ZA - NZ only RHD, CH excluded | 1 |
| 2 | 121518 | Speedometer On exhaustion no. 118032 | 1 |
| 2 | 118032 | Speedometer CH only, up to exhaustion | 1 |
| 2 | 121470 | Milage counter RHDOn exhaustion 11616 | 1 |
| 2 | 118816 | Milage counter RDHUp to exhaustion | 1 |
| 3 | 40083701 | Electric fan warning light | 1 |
| 4 | 116958 | Fuel level gauge | 1 |
| 5 | 116955 | Water temperature gaugeRHD | 1 |
| 5 | 117120 | Water temperature gaugeLHD | 1 |
| 6 | 40083602 | Yellow warning light | 1 |
| 7 | 61107600 | Body for cigarette lighter | 1 |
| 8 | 60771400 | Red warning light lighter | 1 |
| 9 | 117122 | Oil pressure gaugeLHD | 1 |
| 9 | 116357 | Oil pressure gaugeRHD | 1 |
| 10 | 111099 | Rheostat for instruments lights | 1 |
| 11 | 117118 | Electronic rev. counterRHD | 1 |
| 11 | 118936 | Electronic rev. counterLHD | 1 |
| 12 | 60771300 | Generator warning light G | 1 |
| 13 | 117121 | Oil temperature gaugeLHD | 1 |
| 13 | 116956 | Oil temperature gaugeRHD | 1 |
| 14 | 113047 | Clock | 1 |
| 15 | 40179301 | Current socket | 1 |
| 16 | 40170202 | Aid lamp | 1 |
| 17 | 60781300 | Ash tray | 1 |
| 18 | 60063104 | Speed control switch windshield wiper | 1 |
| 19 | 40168007 | Aerial switchUp to exhaustion | 1 |
| 19 | 61272300 | Aerial switchOn exhaustion 40168007 | 1 |
| 20 | 60770300 | Plate switches | 1 |
| 21 | 60063203 | Label for thermic rear window | 1 |
| 22 | 40302903 | Spacer for rheostat | 1 |
| 23 | 61107500 | Cigerette lighter | 1 |
| 24 | 60258734 | Connection lever cock | 2 |
| 25 | 50322007 | Switch heating fansKnob excluded | 1 |
| 26 | 60053600 | Emergency switchKnob excluded | 1 |
| 27 | 40116905 | Connection leverLH defroster | 1 |
| 28 | 50070402 | Connection leverRH defroster | 1 |
| 29 | 61272500 | Knob for aerial switch | 1 |
| 30 | 60770900 | Lever, defroster | 2 |
| 31 | 60548200 | Lever, heating system valve | 2 |
| 32 | 60126206 | Sheaf for cable | 2 |
| 33 | 60077906 | LH upper bracket | 1 |
| 34 | 60077107 | RH upper bracket | 1 |
| 35 | 60712600 | Label for switch rear log | 1 |
| 36 | 60160101 | Rubber washer | 1 |
| 37 | 50017201 | KnobAriel switch excluded | 1 |
| 38 | 60050709 | Switch for rear log | 1 |
| 39 | 17671201 | Screw | 8 |
| 40 | 12038101 | Washer | 9 |
| 41 | 114633 | Window control switch | 2 |
| 42 | 60036100 | Horse | 1 |
| 43 | 60078003 | Lower bracket | 2 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
