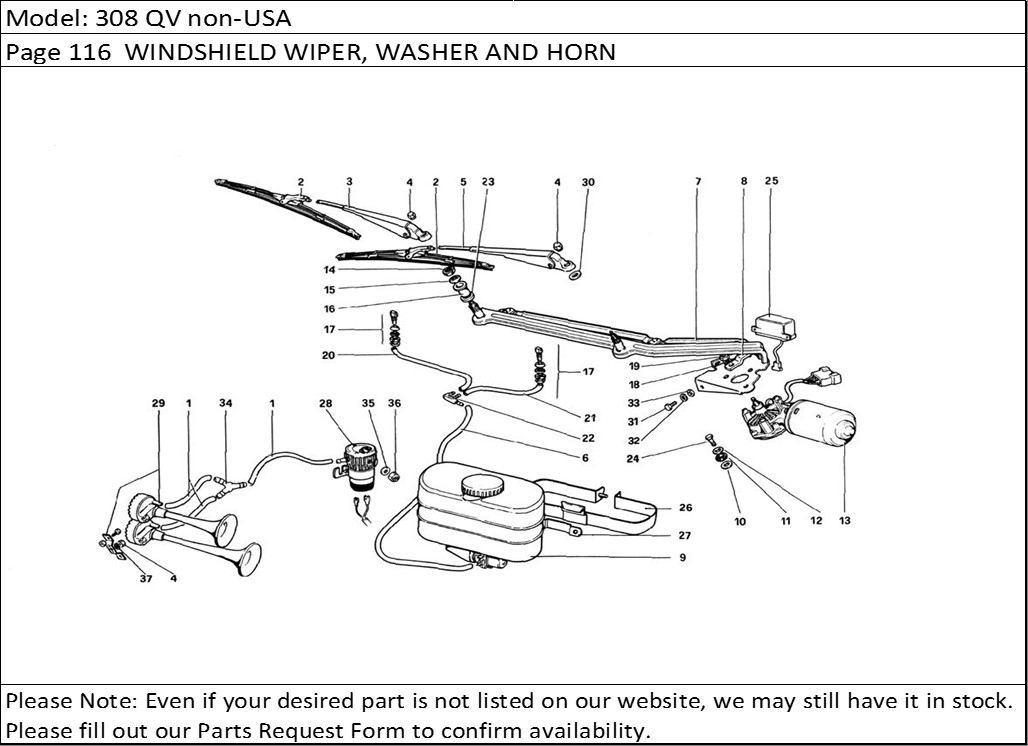

308 QV non-USA Page 116 WINDSHIELD WIPER, WASHER AND HORN
Product Description
308 QV non-USA Page 116 WINDSHIELD WIPER, WASHER AND HORN
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| - | 60004702 | Windshield wiper unit LHD | 1 |
| - | 60188307 | Windshiedl wiper unitRHD | 1 |
| 1 | 60884300 | Duct, horns to compressor | 1 |
| 2 | 108741 | Wiper brush | 2 |
| 3 | 110588 | R.H. wiper arm for RHD | 1 |
| 3 | 108740 | R.H. wiper arm for LHD | 1 |
| 4 | 16100811 | Nut | 3 |
| 5 | 108739 | L.H. wiper arm for LHD | 1 |
| 5 | 110589 | L.H. wiper arm for RHD | 1 |
| 6 | 60326402 | Duct, water reservoir to 3-way union | 1 |
| 7 | 60044500 | Windshield wiper leversLHD | 1 |
| 7 | 60188208 | Windshield wiper leversRHD | 1 |
| 8 | 60134004 | Link rod, 45 mm. | 1 |
| 9 | 60375706 | Water reservoir | 1 |
| 10 | 50208800 | Washer | 3 |
| 11 | 40222408 | Grommet | 3 |
| 12 | 40222705 | Washer | 3 |
| 13 | 60039609 | Windshield wiper motor (Marelli)On exhaustion use no. 50215607 | 1 |
| 13 | 61725400 | Windshield wiper motorOSLV | 1 |
| 14 | 60133907 | Ring nut | 2 |
| 15 | 108324 | Outer spacer | 2 |
| 16 | 108325 | Inner spacer | 2 |
| 17 | 60532900 | Nozzle and fixing parts | 2 |
| 18 | 10516673 | Washer | 1 |
| 19 | 16102311 | Nut | 1 |
| 20 | 60124708 | Duct, R.H. nozzle | 1 |
| 21 | 60124807 | Duct, L.H. nozzle | 1 |
| 22 | 50103100 | 3-way union | 1 |
| 23 | 60275609 | Washer | 2 |
| 24 | 10902321 | Screw | 3 |
| 25 | 40284309 | Intermittence, windshield wiper | 1 |
| 26 | 60399102 | Clamp, fixing windshield wiper bag | 1 |
| 27 | 60399201 | Bracket | 1 |
| 28 | 60342003 | CompressorOn exhaustion use no. 61447800 | 1 |
| 29 | 60842900 | Horns CH only | 1 |
| 29 | 60665500 | HornsCH excluded | 1 |
| 30 | 12642721 | Washer | 2 |
| 31 | 10902121 | Screw | 4 |
| 32 | 12605371 | Washer | 4 |
| 33 | 12643701 | Washer | 3 |
| 34 | 60741100 | 3 - way union horns - compressor | 1 |
| 35 | 10519601 | Washer | 2 |
| 36 | 16104111 | Nut | 2 |
| 37 | 10615679 | Washer | 1 |
