308 QV non-USA Page 117 HEATING SYSTEM
Product Description
308 QV non-USA Page 117 HEATING SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

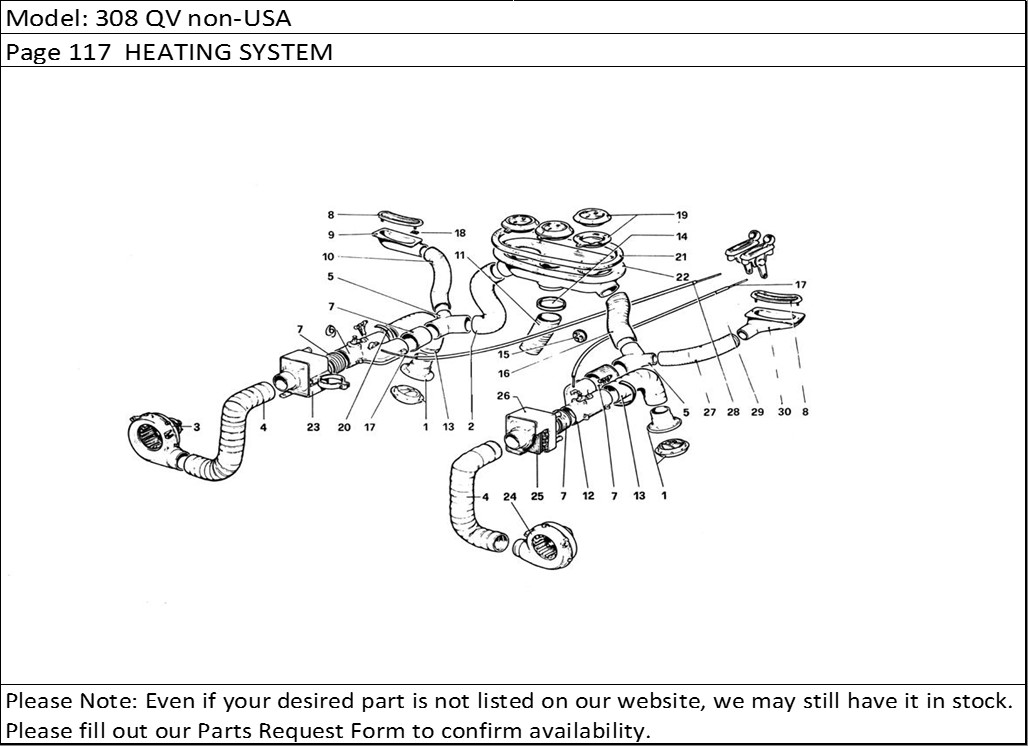

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 60054400 | Air outlet lower | 2 |
| 2 | 60123700 | Air duct | 1 |
| 4 | 60034808 | Air duct | 2 |
| 5 | 60153608 | 3 -way union | 2 |
| 6 | 60135001 | R.H. switch | 1 |
| 7 | 60124500 | Air duct ? 80 | 4 |
| 8 | 60041401 | Air outlet side | 2 |
| 9 | 60055407 | Conveyor for RH outlet LHD | 1 |
| 9 | 60198405 | Conveyor for RH outlet RHD | 1 |
| 10 | 60123809 | Air duct ? 60 | 1 |
| 11 | 60124005 | A.C. duct | 1 |
| 12 | 60138100 | L.H. switch | 1 |
| 13 | 60034907 | Air duct | 2 |
| 14 | 20143202 | Plug | 1 |
| 15 | 60714200 | Fair lead | 1 |
| 16 | 60035003 | Air duct | 1 |
| 17 | 40138802 | Cable defroster control | 2 |
| 18 | 60048501 | Clip | 8 |
| 19 | 60054301 | Air outlet | 3 |
| 20 | 10291490 | Clamp | 2 |
| 21 | 50091503 | Gasket | 1 |
| 22 | 20142709 | Air diffuser | 1 |
| 23 | 60151305 | RH heater (LHD)Up to 31 - 10 - 84 | 1 |
| 23 | 60361409 | RH heater (RHD)Up to 31 - 10 - 85 | 1 |
| 23 | 61721700 | RH heaterDal 1 - 11 - 84 | 1 |
| 24 | 60658700 | LH electric fan | 1 |
| 25 | 60151909 | Wire gauze inside heater | 2 |
| 26 | 60208907 | LH heater | 1 |
| 27 | 60123908 | Air duct ? 60 | 1 |
| 28 | 60125901 | Cable sheath RH defroster | 1 |
| 29 | 60126000 | Cable sheath LH defroster | 1 |
| 30 | 60055506 | Conveyor for LH outletLHD | 1 |
| 30 | 60055407 | Conveyor LHRHD | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
