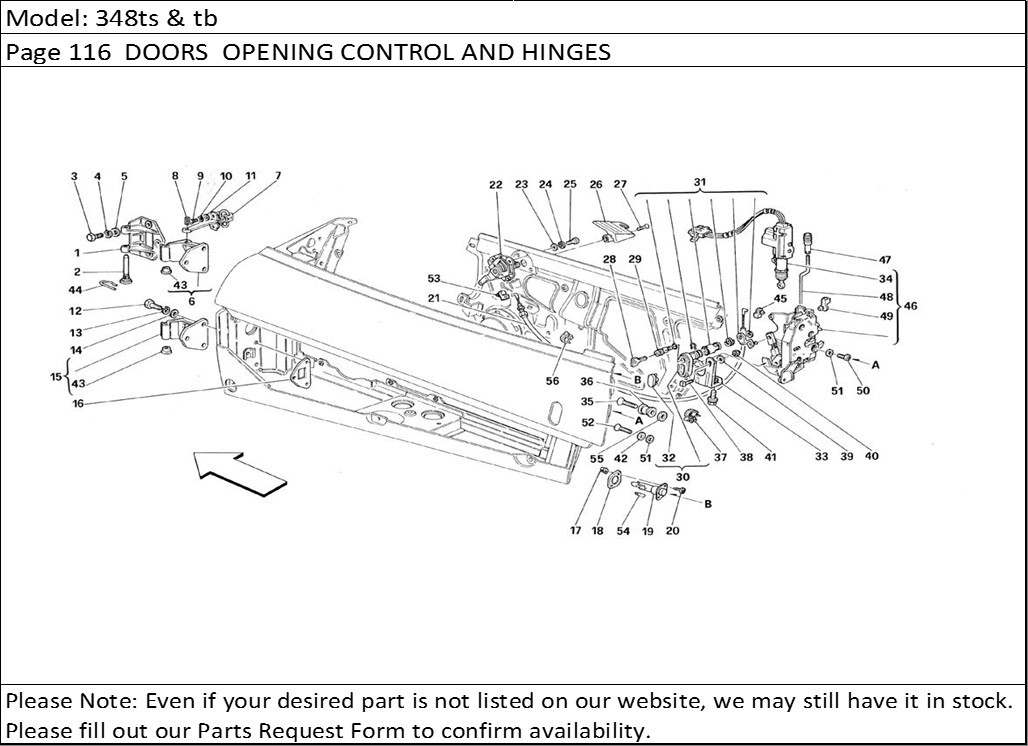

348ts & tb Page 116 DOORS OPENING CONTROL AND HINGES
Product Description
348ts & tb Page 116 DOORS OPENING CONTROL AND HINGES
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 62063600 | FIXED HINGE | 4 |
| 2 | 62054100 | PIN | 4 |
| 3 | 16135921 | SCREW | 12 |
| 4 | 127496 | WASHER | 12 |
| 5 | 10519624 | WASHER | 12 |
| 6 | 62063500 | UPPER MOBILE HINGE | 2 |
| 7 | 62055400 | TIE ROD FOR DOOR STOP | 2 |
| 8 | 60730200 | PIN | 2 |
| 9 | 16134321 | SCREW | 4 |
| 10 | 127493 | WASHER | 4 |
| 11 | 12638101 | WASHER | 4 |
| 12 | 16135921 | SCREW | 12 |
| 13 | 127496 | WASHER | 12 |
| 14 | 10519624 | WASHER | 12 |
| 15 | 62172600 | LOWER MOBILE HINGE | 2 |
| 16 | 62101100 | PLATE FOR MOVABLE HINGE | 4 |
| 17 | 14115580 | CLOCK | 4 |
| 18 | 140576 | GASKET | 2 |
| 19 | 60788100 | OPENING DOOR LAMP | 2 |
| 20 | 15901470 | SCREW | 4 |
| 21 | 62110500 | DOOR OPENING CABLE | 2 |
| 22 | 62584400 | LH. INNER DEVICE FOR DOOR OPENING | 1 |
| 22 | 62171600 | R.H. INNER DEVICE FOR DOOR OPENING | 1 |
| 23 | 60711900 | WASHER | 6 |
| 24 | 149951 | WASHER | 6 |
| 25 | 14071911 | SCREW | 6 |
| 26 | 62158500 | LH. INNER HANDLE FOR DOOR OPENING | 1 |
| 26 | 62158400 | R.H. INNER HANDLE FOR DOOR OPENING | 1 |
| 27 | 13309211 | SCREW | 2 |
| 28 | 95401152 | BLANK KEY | 1 |
| 29 | - | BLOCK FOR DOORS LOCKNot as spare part With complete antitheft device 1 34063 and 1 38052 See Table 36 Part. 15 | 2 |
| 30 | 62108710 | BODY COMPLETE WITH R.H. DOOR OPENING PUSH BUTTON | 1 |
| 30 | 62108810 | BODY COMPLETE WITH LH. DOOR OPENING PUSH BUTTON | 1 |
| 31 | 70000655 | KIT FOR LH. PUSHBUTTON | 1 |
| 31 | 70000654 | KIT FOR R.H. PUSHBUTTON | 1 |
| 32 | 62584200 | DOOR OPENING PUSH BUTTON | 2 |
| 33 | 62171000 | BRACKET FOR PUSH BUTTON FASTENINGNot for USA. CDN, AUS and SA | 2 |
| 33 | 62194500 | BRACKET FOR PUSH BUTTON FASTENINGValid for USA. CDN, AUS and SA | 2 |
| 34 | 62832300 | DOORS LOCKING/RELEASING ACTUATOR | 1 |
| 35 | 62858700 | SCREW | 2 |
| 36 | 63364100 | STRIKER | 2 |
| 37 | 61130600 | CLIP | 8 |
| 38 | 62171200 | SCREW | 4 |
| 39 | 12646601 | WASHER | 4 |
| 40 | 12574211 | NUT | 4 |
| 41 | 13836371 | SCREW | 4 |
| 42 | 12647777 | WASHER | 2 |
| 43 | 62825300 | BUSHING | 8 |
| 44 | 62116700 | CLIP | 4 |
| 45 | 40063208 | CABLE RETAIN CLIP | 2 |
| 46 | 62109400 | LH. DOOR LOCK | 1 |
| 46 | 62109300 | R.H. DOOR LOCK | 1 |
| 47 | 62800900 | KNOB FOR SAFETY ROD | 2 |
| 48 | 62109200 | SAFETY LOCK ROD FOR LH. DOOR | 1 |
| 48 | 62109100 | SAFETY LOCK ROD FOR R.H. DOOR | 1 |
| 49 | 63280600 | ROD CLIP | 2 |
| 50 | 62941000 | SCREW | 6 |
| 51 | 63314400 | WASHER | 8 |
| 52 | 62940900 | SCREW | 2 |
| 53 | 63291200 | CABLE RETAIN CLIP | 2 |
| 54 | 101525 | 12V-3WBULB | 2 |
| 55 | 63285300 | WASHER | 2 |
| 56 | 14569480 | CLIP | 4 |
