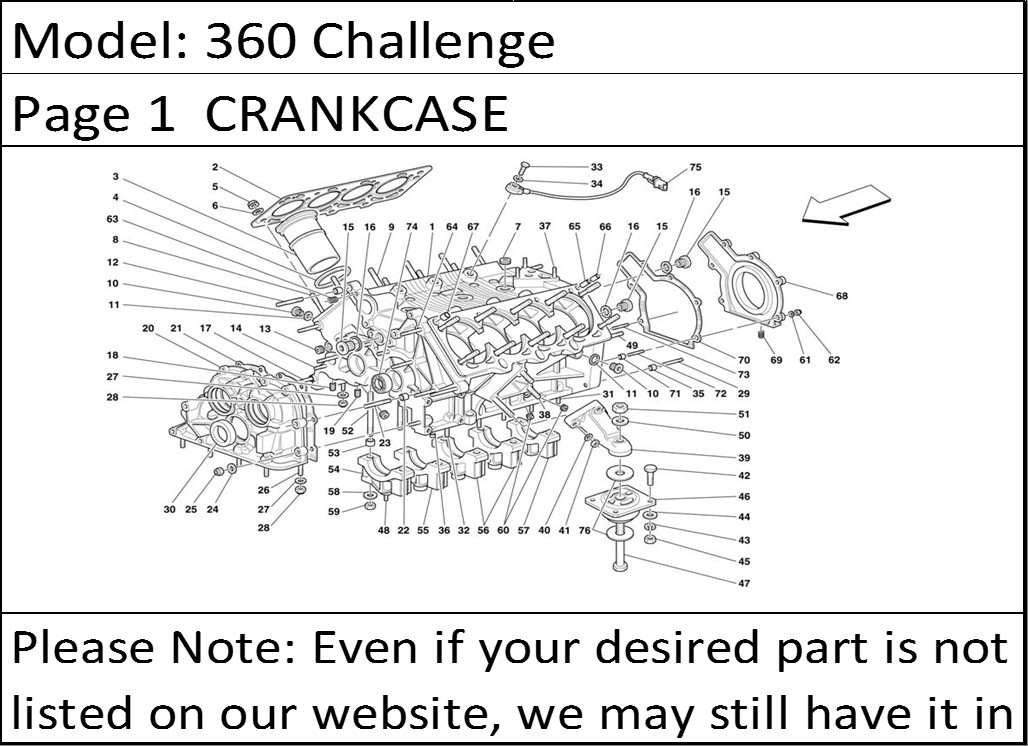

360 Challenge Page 1 CRANKCASE
Product Description
360 Challenge Page 1 CRANKCASE
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| - | 180656 | COMPLETE CRANKCASE | 1 |
| 1 | 173885 | CRANKCASE -Not as spare part -With the complete crankcase | 1 |
| 2 | 174853 | GASKET | 2 |
| 3 | 136875 | CYLINDERS LINER | 8 |
| 4 | 136258 | GASKET | 8 |
| 5 | 148093 | NUT | 20 |
| 6 | 151117 | WASHER -Crankcase central side | 12 |
| 6 | 176208 | WASHER -Crankcase front and rear side | 8 |
| 7 | 14325540 | THREADED PLUG | 3 |
| 8 | 176148 | STUD -Crankcase front and rear side | 8 |
| 9 | 148311 | STUD -Crankcase central side | 12 |
| 10 | 150731 | WATER OUTLET PLUG | 2 |
| 11 | 10280060 | GASKET | 2 |
| 12 | 13544024 | STUD | 2 |
| 13 | 14325140 | THREADED PLUG | 1 |
| 14 | 13543424 | STUD | 5 |
| 15 | 10275011 | THREADED PLUG | 3 |
| 16 | 10263460 | GASKET | 3 |
| 17 | 13544024 | STUD | 1 |
| 18 | 13525870 | THREADED INSERT | 3 |
| 19 | 13525770 | THREADED INSERT | 1 |
| 20 | 169754 | FRONT COVER -Not as spare part -With the complete crankcase | 1 |
| 21 | 153921 | GASKET | 1 |
| 22 | 100041 | DOWEL | 2 |
| 23 | 13543624 | STUD | 1 |
| 24 | 12601374 | WASHER | 9 |
| 25 | 101139 | NUT | 9 |
| 26 | 13543524 | STUD | 6 |
| 27 | 12604474 | WASHER | 18 |
| 28 | 101139 | NUT | 18 |
| 29 | 13547034 | STUD | 4 |
| 30 | 163985 | GASKET | 1 |
| 31 | 13543524 | STUD | 8 |
| 32 | 13543624 | STUD | 4 |
| 33 | 16043834 | SCREW | 4 |
| 34 | 11198074 | WASHER | 4 |
| 35 | 165351 | CENTERING DOWEL | 2 |
| 36 | 102725 | DOWEL | 2 |
| 37 | 13543524 | STUD | 3 |
| 38 | 13547124 | STUD -Right side support | 2 |
| 38 | 13546624 | STUD | 4 |
| 39 | 175156 | ENGINE FIXING SUPPORT | 2 |
| 40 | 11190574 | WASHER | 6 |
| 41 | 133988 | NUT | 6 |
| 42 | 15970634 | SCREW | 8 |
| 43 | 127497 | WASHER | 8 |
| 44 | 14496624 | WASHER | 8 |
| 45 | 133988 | NUT | 8 |
| 46 | 181347 | FLEXIBLE PAD | 2 |
| 47 | 15864234 | SCREW | 2 |
| 48 | 13516624 | STUD | 4 |
| 49 | 13547234 | STUD | 2 |
| 50 | 12601774 | WASHER | 2 |
| 51 | 176573 | NUT | 2 |
| 52 | 180263 | STUD | 10 |
| 53 | 125317 | CENTERING DOWEL | 10 |
| 54 | 152158 | FRONT HAT -Not as spare part -With the complete crankcase | 1 |
| 55 | 152159 | FRONT INTERMEDIATE HAT -Not as spare part -With the complete crankcase | 1 |
| 56 | 152098 | INTERMEDIATE CENTRAL AND REAR HAT -Not as spare part -With the complete crankcase | 2 |
| 57 | 152099 | REAR HAT -Not as spare part -With the complete crankcase | 1 |
| 58 | 103842 | WASHER | 10 |
| 59 | 6103841 | NUT | 10 |
| 60 | 164400 | THREADED PLUG | 2 |
| 61 | 12620474 | WASHER | 6 |
| 62 | 15896214 | NUT | 6 |
| 63 | 13525870 | THREADED INSERT | 4 |
| 64 | 13544024 | STUD | 2 |
| 65 | 156862 | NONRETURN VALVE | 2 |
| 66 | 175644 | REAR DOWEL | 2 |
| 67 | 173479 | FRONT DOWEL | 2 |
| 68 | 170527 | REAR COVER -Not as spare part -With the complete crankcase | 1 |
| 69 | 13525570 | THREADED INSERT | 2 |
| 70 | 170529 | GASKET | 1 |
| 71 | 103038 | DOWEL | 2 |
| 72 | 13541124 | STUD | 2 |
| 73 | 13540824 | STUD | 4 |
| 74 | 171177 | BEARING | 2 |
| 75 | 177672 | SENSOR FOR FIRING | 2 |
| 76 | 182925 | WASHER | 4 |
