360 Challenge Page 8 PNEUMATICS ACTUATOR SYSTEM
Product Description
360 Challenge Page 8 PNEUMATICS ACTUATOR SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

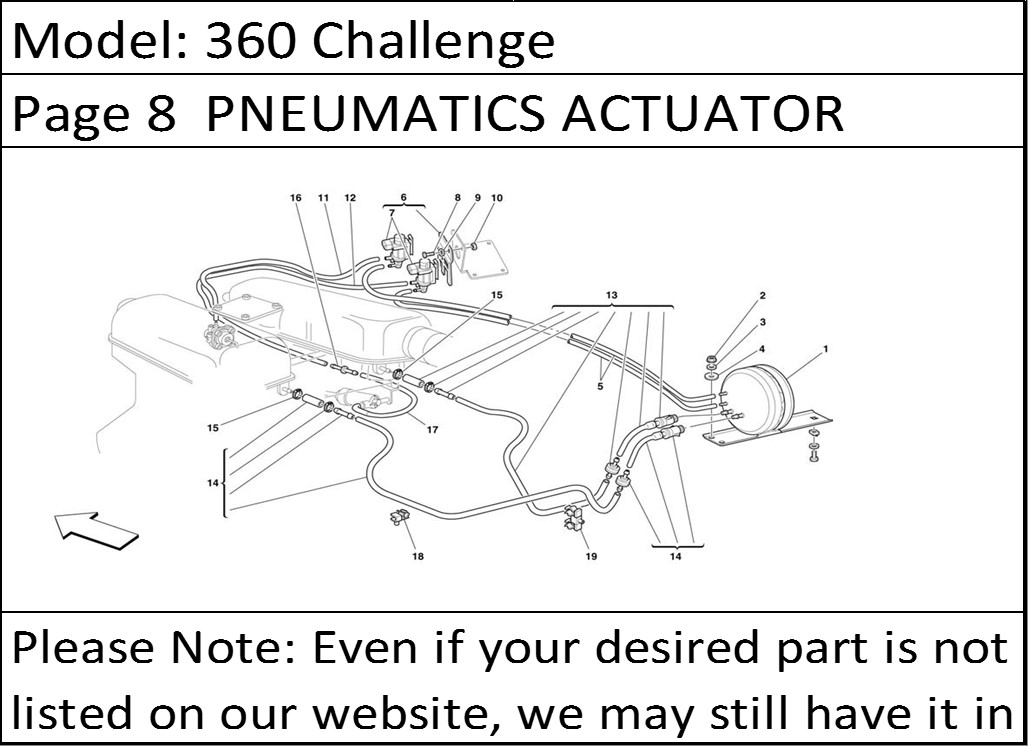

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 182824 | DEPRESSION ACCUMULATION TANK | 1 |
| 2 | 14059211 | NUT | 2 |
| 3 | 12601274 | WASHER | 2 |
| 4 | 12639724 | WASHER | 2 |
| 5 | 122760 | PIPE FROM TANK TO SOLENOID VALVE | 2 |
| 6 | 159176 | SMALL PLATE WITH SOLENOID VALVE | 1 |
| 7 | 159177 | SOLENOID VALVE | 2 |
| 8 | 10977624 | SCREW | 2 |
| 9 | 12604174 | WASHER | 2 |
| 10 | 15896470 | NUT | 2 |
| 11 | 169692 | PIPE FROM SOLENOID VALVE TO PNEUMATIC CAPSULE | 1 |
| 12 | 115665 | PIPE FROM SOLENOID VALVE TO UNION | 1 |
| 13 | 178421 | COMPLETE R.H. DEPRESSION PIPE | 1 |
| 14 | 178420 | COMPLETE L.H. DEPRESSION PIPE | 1 |
| 15 | 13434670 | SCREW COLLAR | 2 |
| 16 | 178491 | UNION | 1 |
| 17 | 168248 | RUBBER HOSE | 1 |
| 18 | 180160 | L.H. CLIP | 1 |
| 19 | 180161 | R.H. CLIP | 1 |
