360 Challenge Page 10 FUEL TANKS
Product Description
360 Challenge Page 10 FUEL TANKS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

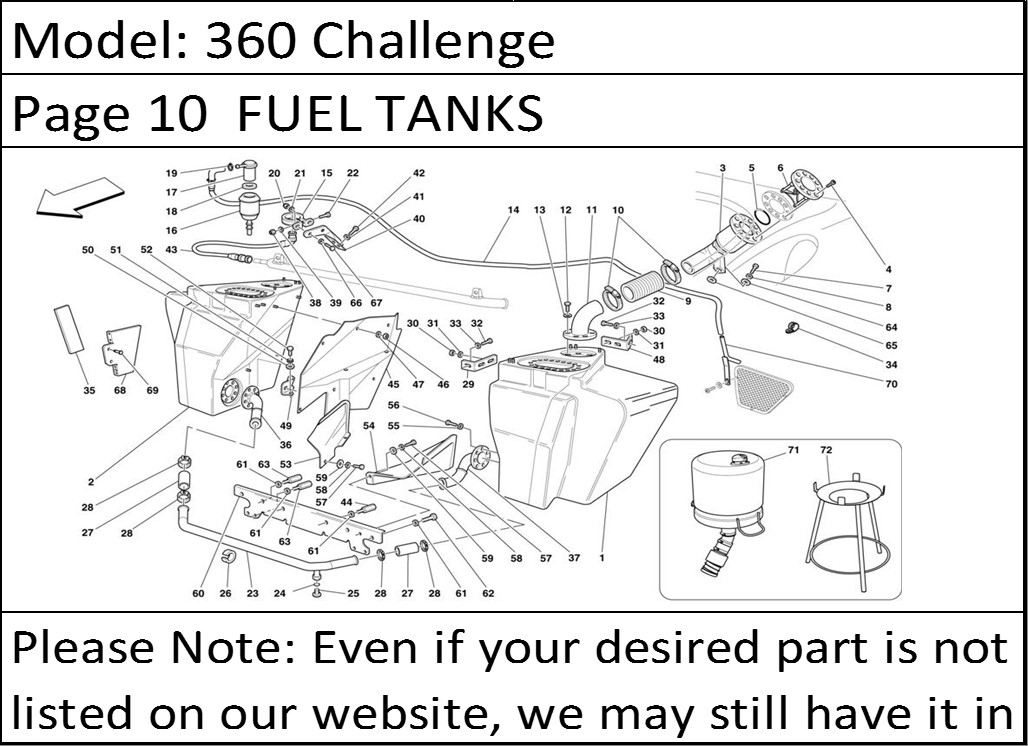

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 184735 | COMPLETE L.H. FUEL TANK CONTAINER | 1 |
| 2 | 184736 | COMPLETE R.H. FUEL TANK CONTAINER | 1 |
| 3 | 181494 | R.H.UNION | 1 |
| 3 | 181495 | L.H. UNION | 1 |
| 4 | 14440734 | SCREW | 18 |
| 5 | 183487 | OR-RING | 2 |
| 6 | 182506 | CHALLENGE FUEL PLUG | 2 |
| 7 | 10902424 | SCREW | 2 |
| 8 | 127494 | WASHER | 2 |
| 9 | 182911 | CONNECTION SLEEVE | 2 |
| 10 | 13000890 | SCREW COLLAR | 4 |
| 11 | 182902 | L.H. INLET TUBE | 1 |
| 11 | 182901 | R.H. INLET TUBE | 1 |
| 12 | 10902024 | SCREW | 16 |
| 13 | 12601274 | WASHER | 16 |
| 14 | 183402 | VENT PIPE | 1 |
| 15 | 176393 | BRACKET WITH SHEATH | 1 |
| 16 | 175967 | MULTIFUNTIONAL VALVE CONTAINER | 1 |
| 17 | 180030 | MULTIFUNTIONAL VALVE | 1 |
| 18 | 195049 | GASKET | 1 |
| 19 | 13432070 | SCREW COLLAR | 1 |
| 20 | 10720124 | NUT | 2 |
| 21 | 12644424 | WASHER | 2 |
| 22 | 10902834 | SCREW | 1 |
| 23 | 181695 | TANKS CONNECTION PIPE | 1 |
| 24 | 123622 | GASKET | 1 |
| 25 | 148045 | THREADED PLUG | 1 |
| 26 | 177437 | RUBBER THICKNESS | 6 |
| 27 | 114277 | RUBBER HOSE | 2 |
| 28 | 168220 | SCREW COLLAR | 4 |
| 29 | 65987000 | LH FRONT BRACKET | 1 |
| 29 | 65986900 | RH FRONT BRACKET | 1 |
| 30 | 102948 | NUT | 8 |
| 31 | 14496429 | WASHER | 8 |
| 32 | 10902424 | SCREW | 4 |
| 33 | 14496429 | WASHER | 4 |
| 34 | 10441590 | BRACKET WITH SHEATH | 1 |
| 35 | 159147 | RUBBER THICKNESS | 8 |
| 36 | 182906 | R.H. PIPE | 1 |
| 37 | 182907 | L.H. PIPE | 1 |
| 38 | 102741 | NUT | 1 |
| 39 | 12639724 | WASHER | 1 |
| 40 | 183399 | SUPPORTING BRACKET | 1 |
| 41 | 12644424 | WASHER | 2 |
| 42 | 10902224 | SCREW | 2 |
| 43 | 180373 | PIPE FROM MULTIFUNTIONAL VALVE TO DISAREATOR | 1 |
| 44 | 179242 | STUD | 1 |
| 45 | 182519 | RH FRONT PANEL | 1 |
| 45 | 182520 | LH FRONT PANEL | 1 |
| 46 | 169180 | NUT | 20 |
| 47 | 12638177 | WASHER | 20 |
| 48 | 65987200 | L.H. REAR BRACKET | 1 |
| 48 | 65987100 | RH REAR BRACKET | 1 |
| 49 | 183622 | LOWER BRACKET FOR R.H. TANK FIXING | 1 |
| 49 | 183623 | LOWER BRACKET FOR L.H. TANK FIXING | 1 |
| 50 | 14499324 | WASHER | 2 |
| 51 | 12605371 | WASHER | 2 |
| 52 | 10902424 | SCREW | 2 |
| 53 | 182521 | LOWER R.H. ANTI-HEAT SHIELD | 1 |
| 54 | 182522 | LOWER L.H. ANTI-HEAT SHIELD | 1 |
| 55 | 12601274 | WASHER | 16 |
| 56 | 10902024 | SCREW | 16 |
| 57 | 10902424 | SCREW | 4 |
| 58 | 12605371 | WASHER | 4 |
| 59 | 14499324 | WASHER | 4 |
| 60 | 176993 | PROTECTION PLATE | 1 |
| 61 | 13550221 | WASHER | 10 |
| 62 | 10902324 | SCREW | 7 |
| 63 | 178772 | STUD | 2 |
| 64 | 12643724 | WASHER | 2 |
| 65 | 12643724 | WASHER -Possible fitting | 4 |
| 66 | 127494 | WASHER | 2 |
| 67 | 10902024 | SCREW | 2 |
| 68 | 182623 | L.H. FUEL TANK PROTECTION PLATE | 1 |
| 68 | 182624 | R.H. FUEL TANK PROTECTION PLATE | 1 |
| 69 | 14644090 | RIVET | 12 |
| 70 | 184512 | VENT | 1 |
| 71 | 183914 | TANKS FILLING KIT | 1 |
| 72 | 183915 | TANK SUPPORT | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
