360 Challenge Page 16 LUBRICATION SYSTEM AND BLOWBY SYSTEM
Product Description
360 Challenge Page 16 LUBRICATION SYSTEM AND BLOWBY SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

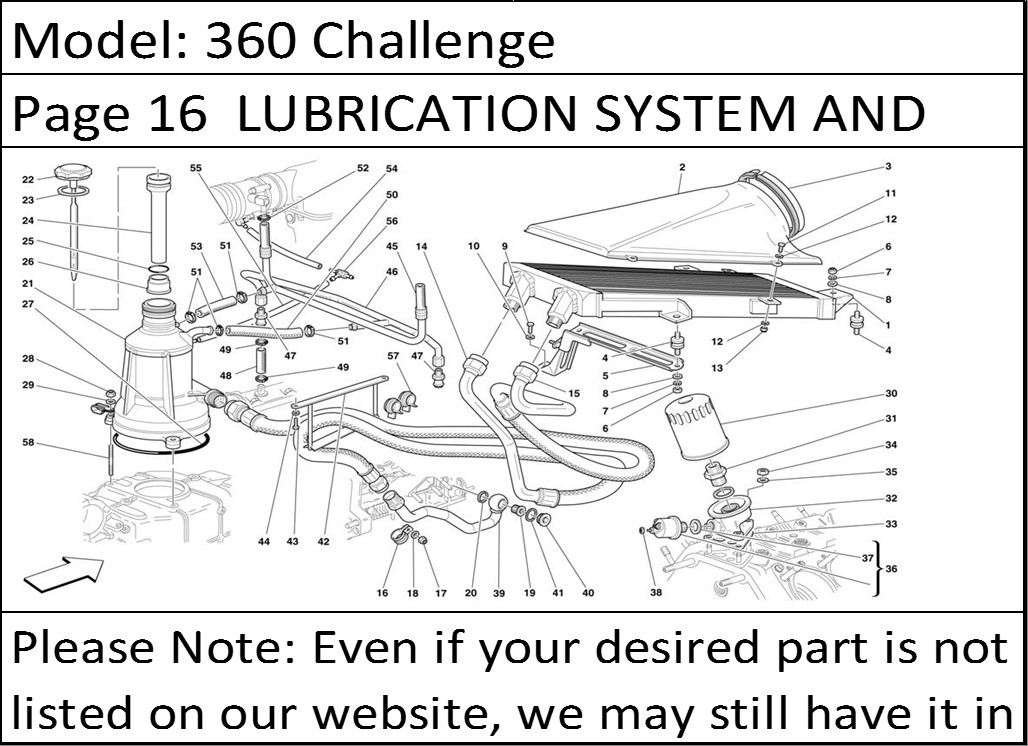

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 181449 | OIL RADIATOR | 1 |
| 2 | 181471 | AIR INLET CONVEYOR | 1 |
| 3 | 180555 | GASKET | 1 |
| 4 | 102947 | PAD | 4 |
| 5 | 181451 | REAR RADIATOR SUPPORTING BRACKET | 1 |
| 5 | 182515 | FRONT RADIATOR SUPPORTING BRACKET | 1 |
| 6 | 15896214 | NUT | 8 |
| 7 | 127494 | WASHER | 8 |
| 8 | 12644424 | WASHER | 8 |
| 9 | 10902424 | SCREW | 2 |
| 10 | 14496424 | WASHER | 2 |
| 11 | 10977824 | SCREW | 3 |
| 12 | 12637824 | WASHER | 6 |
| 13 | 113647 | NUT | 3 |
| 14 | 182816 | HOSE FROM ENGINE HOSE TO RADIATOR | 1 |
| 15 | 182817 | HOSE FROM RADIATOR TO DISAREATOR | 1 |
| 16 | 10441990 | BRACKET WITH SHEATH | 1 |
| 17 | 134041 | NUT | 1 |
| 18 | 127494 | WASHER | 1 |
| 19 | 122319 | UNION | 1 |
| 20 | 10264660 | GASKET | 1 |
| 21 | 181970 | COMPLETE OIL DISAREATOR | 1 |
| 22 | 183096 | TANK PLUG | 1 |
| 23 | 180585 | GASKET | 1 |
| 24 | 181964 | SHIELD FOR OIL LEVEL ROD | 1 |
| 25 | 182184 | O.R. GASKET | 2 |
| 26 | 182185 | END | 1 |
| 27 | 176388 | O.R. GASKET | 1 |
| 28 | 101139 | NUT | 3 |
| 29 | 12601374 | WASHER | 3 |
| 30 | 197654 | OIL FILTER CARTRIDGE | 1 |
| 31 | 173929 | THREADED UNION | 1 |
| 32 | 173633 | OIL FILTER BASE-PLATE | 1 |
| 33 | 188052 | OIL FILTER BASE GASKET | 1 |
| 34 | 101139 | NUT | 3 |
| 35 | 12601374 | WASHER | 3 |
| 36 | 135940 | OIL PRESSURE TRANSMITTER | 1 |
| 37 | 10259960 | GASKET | 1 |
| 38 | 62790300 | NUT | 2 |
| 39 | 178199 | HOSE FROM ENGINE TO RADIATOR HOSE | 1 |
| 40 | 122318 | THREADED PLUG | 1 |
| 41 | 183044 | GASKET | 1 |
| 42 | 183655 | OIL HOSE RETAINING BRACKET | 1 |
| 43 | 10902124 | SCREW | 2 |
| 44 | 12601274 | WASHER | 2 |
| 45 | 180242 | BUTTERFLY CONNECTION PIPE | 1 |
| 46 | 173968 | HEADS CONNECTION VENT PIPE | 1 |
| 47 | 170448 | VALVE | 2 |
| 48 | 175746 | RUBBER HOSE | 2 |
| 49 | 178053 | CLAMP | 4 |
| 50 | 175745 | RUBBER HOSE | 1 |
| 51 | 178053 | CLAMP | 4 |
| 52 | 178051 | CLAMP | 2 |
| 53 | 175744 | RUBBER HOSE | 1 |
| 54 | 126342 | RUBBER HOSE | 2 |
| 55 | 137904 | RUBBER HOSE | 1 |
| 56 | 161816 | 3-WAY UNION | 1 |
| 57 | 160013 | FLEXIBLE CLIP | 2 |
| 58 | 13517024 | STUD | 3 |
