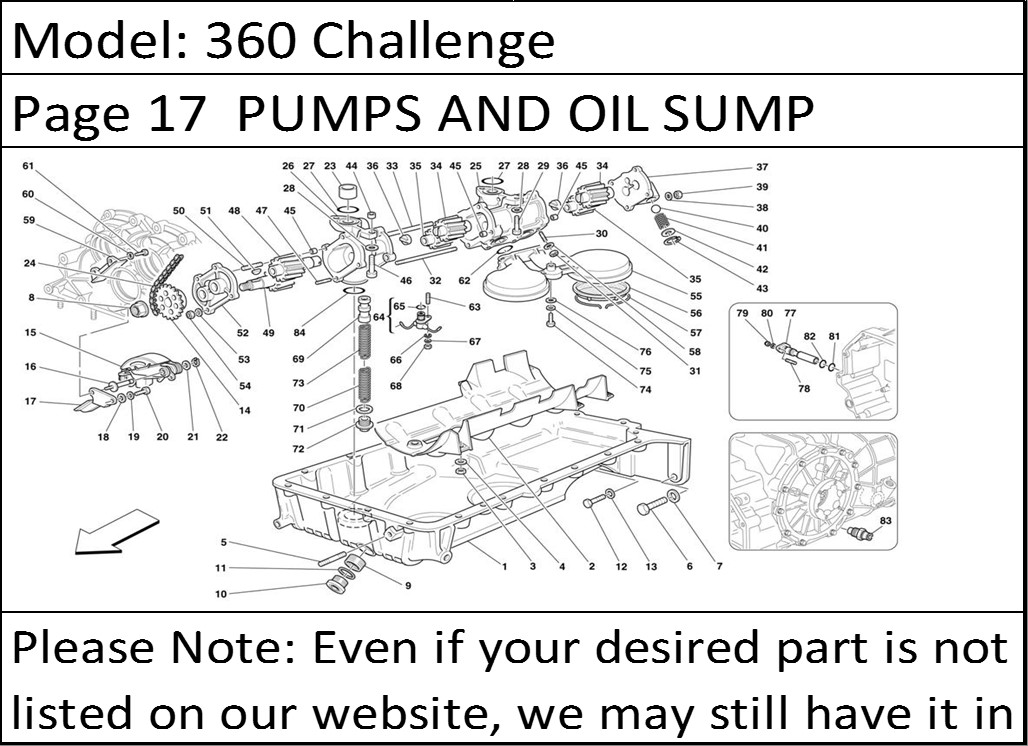

360 Challenge Page 17 PUMPS AND OIL SUMP
Product Description
360 Challenge Page 17 PUMPS AND OIL SUMP
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| - | 181819 | COMPLETE OIL SUMP | 1 |
| - | 185130 | DELIVERY PUMP BODY WITH STUD BOLTS | 1 |
| - | 185129 | RECOVERY PUMP BODY WITH STUD BOLTS | 1 |
| 1 | 181819 | OIL SUMP -Not as spare part -With the complete oil sump | 1 |
| 2 | 173623 | ANTI-SHAKING OIL PANEL | 1 |
| 3 | 177778 | NUT | 6 |
| 4 | 10519624 | WASHER | 6 |
| 5 | 13516524 | STUD | 2 |
| 6 | 11307021 | SCREW | 2 |
| 7 | 11190574 | WASHER | 2 |
| 8 | 132876 | NUT | 1 |
| 9 | 112254 | THREADED INSERT | 1 |
| 10 | 178959 | OIL OUTLET PLUG | 1 |
| 11 | 10261860 | GASKET | 1 |
| 12 | 14306424 | SCREW | 2 |
| 13 | 11198074 | WASHER | 2 |
| 14 | 132462 | DRIVEN GEAR | 1 |
| 15 | 185577 | CHAIN TIGHTENER | 1 |
| 16 | 169594 | STUD | 1 |
| 17 | 179938 | STOP PLATE | 1 |
| 18 | 12646601 | WASHER | 1 |
| 19 | 12601274 | WASHER | 1 |
| 20 | 10902224 | SCREW | 1 |
| 21 | 171960 | WASHER | 1 |
| 22 | 11065474 | FLEXIBLE RING | 1 |
| 23 | 145326 | BUSHING | 1 |
| 24 | 133089 | CHAIN | 1 |
| 25 | 185129 | RECOVERY PUMP BODY -Not as spare part -With the assembly 185129 | 1 |
| 26 | 185130 | DELIVERY PUMP BODY -Not as spare part -With the assembly 185130 | 1 |
| 27 | 133939 | O.R. GASKET | 2 |
| 28 | 11198074 | WASHER | 4 |
| 29 | 14306424 | SCREW | 3 |
| 30 | 13540824 | STUD | 4 |
| 31 | 132877 | NUT | 4 |
| 32 | 133842 | STUD | 2 |
| 33 | 133843 | STUD | 2 |
| 34 | 132458 | DRIVING GEAR | 2 |
| 35 | 132460 | DRIVEN GEAR | 2 |
| 36 | 109309 | COUPLING | 2 |
| 37 | 132436 | RECOVERY PUMP COVER | 1 |
| 38 | 11197771 | WASHER | 4 |
| 39 | 134041 | NUT | 4 |
| 40 | 121306 | BALL | 1 |
| 41 | 109980 | SPRING | 1 |
| 42 | 132772 | SPACER | 1 |
| 43 | 11057876 | SEEGER RING | 1 |
| 44 | 102704 | DOWEL | 1 |
| 45 | 102725 | DOWEL | 5 |
| 46 | 14306524 | SCREW | 1 |
| 47 | 13540824 | STUD | 2 |
| 48 | 181862 | DRIVEN GEAR | 1 |
| 49 | 132454 | DRIVING GEAR | 1 |
| 50 | 13541024 | STUD | 2 |
| 51 | 10205820 | DISC KEY | 1 |
| 52 | 132434 | FRONT COVER | 1 |
| 53 | 11197771 | WASHER | 4 |
| 54 | 134041 | NUT | 4 |
| 55 | 176222 | RECOVERY SUCTION PIPE | 1 |
| 56 | 122429 | FILTER | 2 |
| 57 | 103944 | RING | 2 |
| 58 | 12604274 | WASHER | 4 |
| 59 | 136039 | FIXED TENSION | 1 |
| 60 | 12601274 | WASHER | 2 |
| 61 | 10902424 | SCREW | 2 |
| 62 | 133938 | O.R. GASKET | 2 |
| 63 | 11000824 | STUD | 4 |
| 64 | 179069 | COMPLETE MULTIPLE UNION | 4 |
| 65 | 137192 | O.R. GASKET | 4 |
| 66 | 11199274 | WASHER | 4 |
| 67 | 10519378 | WASHER | 4 |
| 68 | 15896470 | NUT | 4 |
| 69 | 129324 | REGISTER | 1 |
| 70 | 177908 | OUTER SPRING | 1 |
| 71 | 10263360 | GASKET | 1 |
| 72 | 177423 | OIL PRESSURE VALVE CAP | 1 |
| 73 | 177909 | INNER SPRING | 1 |
| 74 | 179222 | SCREW | 1 |
| 75 | 127494 | WASHER | 1 |
| 76 | 12644424 | WASHER | 1 |
| 77 | 177130 | GEARBOX OIL SUCTION FAN | 1 |
| 78 | 11500224 | STUD | 2 |
| 79 | 102948 | NUT | 2 |
| 80 | 12604274 | WASHER | 2 |
| 81 | 177549 | O.R. GASKET | 1 |
| 82 | 177550 | O.R. GASKET | 1 |
| 83 | 104628 | GEARBOX THERMISTOR | 1 |
| 84 | 104535 | O.R. GASKET | 2 |
