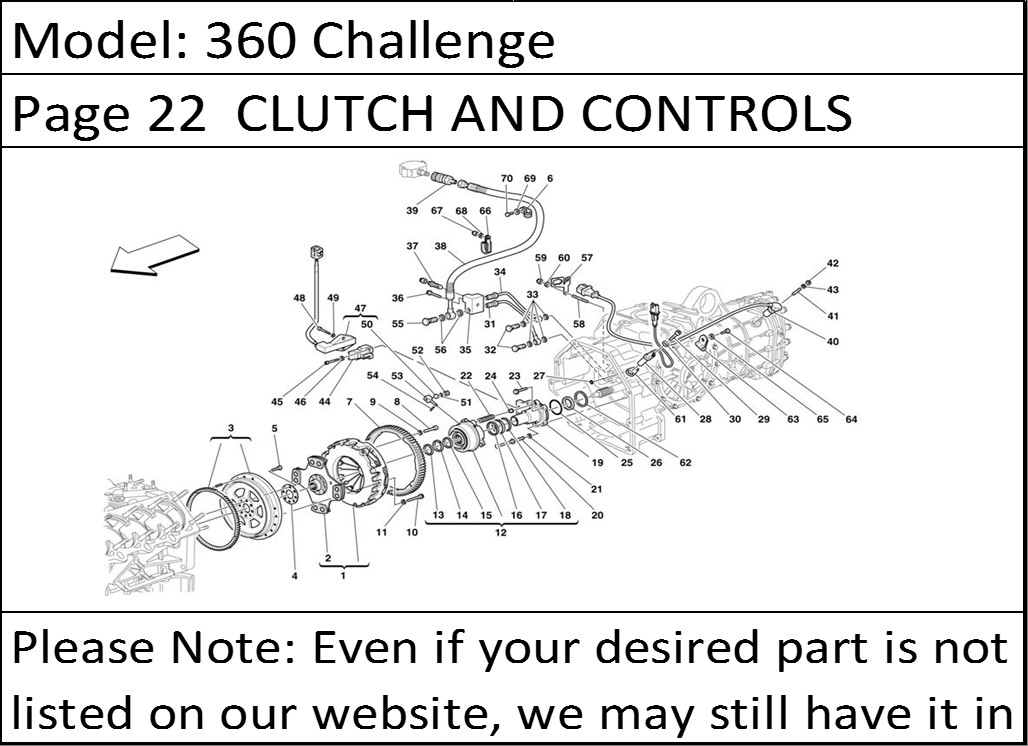

360 Challenge Page 22 CLUTCH AND CONTROLS
Product Description
360 Challenge Page 22 CLUTCH AND CONTROLS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 178042 | COMPLETE CLUTCH | 1 |
| 2 | 181315 | CLUTCH DISC | 1 |
| 3 | 181596 | COMPLETE ENGINE FLYWHEEL | 1 |
| 4 | 103876 | FLYWHEEL FIXING WASHER | 1 |
| 5 | 103875 | SCREW | 8 |
| 6 | 121834 | BRACKET WITH SHEATH | 1 |
| 7 | 176917 | RING GEAR | 1 |
| 8 | 14305424 | SCREW | 3 |
| 9 | 127494 | WASHER | 3 |
| 10 | 178739 | SCREW | 15 |
| 11 | 11194379 | WASHER | 15 |
| 12 | 178331 | COMPLETE THRUST BEARING | 1 |
| 13 | 181837 | SCRAPER RING | 1 |
| 14 | 170416 | RING | 1 |
| 15 | 181838 | SEAL RING | 1 |
| 16 | 181828 | SEAL RING | 1 |
| 17 | 154507 | RING | 1 |
| 18 | 181836 | SCRAPER RING | 1 |
| 19 | CRF360/430 | BEARING SUPPORT FLANGE | 1 |
| 20 | 205396 | STUD FOR END OF STROKE | 2 |
| 21 | 127496 | WASHER | 2 |
| 22 | 155207 | PRELOAD SPRING | 2 |
| 23 | 13839224 | SCREW | 2 |
| 24 | 155206 | SPACER | 2 |
| 25 | 136140 | O.R. GASKET | 1 |
| 26 | 172363 | SEAL RING | 1 |
| 27 | 121813 | O.R. GASKET | 2 |
| 28 | 182194 | ANGOLAR SPEED SENSOR -Valid after stock exhaustion of 164937 | 2 |
| 29 | 14305724 | SCREW | 2 |
| 30 | 12601274 | WASHER | 2 |
| 31 | 180183 | CLUTCH CONTROL TUBE | 1 |
| 32 | 11903811 | UNION | 2 |
| 33 | 10284460 | GASKET | 4 |
| 34 | 180184 | BLEEDER SYSTEM PIPE | 1 |
| 35 | 235706 | BLOCK | 1 |
| 36 | 16286324 | SCREW | 1 |
| 37 | 121699 | BLEEDER SCREW | 1 |
| 38 | 239429 | COMPLETE CLUTCH HOSE | 1 |
| 39 | 70001184 | FEMALE COUPLING | 1 |
| 40 | 168729 | ELECTRO-MAGNETIC SENSOR | 1 |
| 41 | 11500124 | STUD | 1 |
| 42 | 10720124 | NUT | 1 |
| 43 | 12604274 | WASHER | 1 |
| 44 | 201282 | SUPPORT | 1 |
| 45 | 14358524 | SCREW | 2 |
| 46 | 10519378 | WASHER | 2 |
| 47 | 178060 | COMPLETE SENSOR KIT | 1 |
| 48 | 14303324 | SCREW | 2 |
| 49 | 10519224 | WASHER | 2 |
| 50 | 178060 | MAGNET | 1 |
| 51 | 165658 | O.R. GASKET | 1 |
| 52 | 167802 | PLUG | 1 |
| 53 | 165567 | PIN | 1 |
| 54 | 14158570 | PIN | 1 |
| 55 | 171454 | UNION | 1 |
| 56 | 10261060 | GASKET | 2 |
| 57 | 185230 | SENSOR FIXING BRACKET | 1 |
| 58 | 13540724 | STUD | 1 |
| 59 | 102741 | NUT | 1 |
| 60 | 106850 | WASHER | 1 |
| 61 | 182896 | THICKNESS | 2 |
| 62 | 173360 | SPACER -Possible fitting | 2 |
| 63 | 10440990 | BRACKET WITH SHEATH | 1 |
| 64 | 10977724 | SCREW | 1 |
| 65 | 12637824 | WASHER | 1 |
| 66 | 139512 | BRACKET WITH SHEATH | 1 |
| 67 | 102741 | NUT | 1 |
| 68 | 14496424 | WASHER | 1 |
| 69 | 14496424 | WASHER | 1 |
| 70 | 10979424 | SCREW | 1 |
