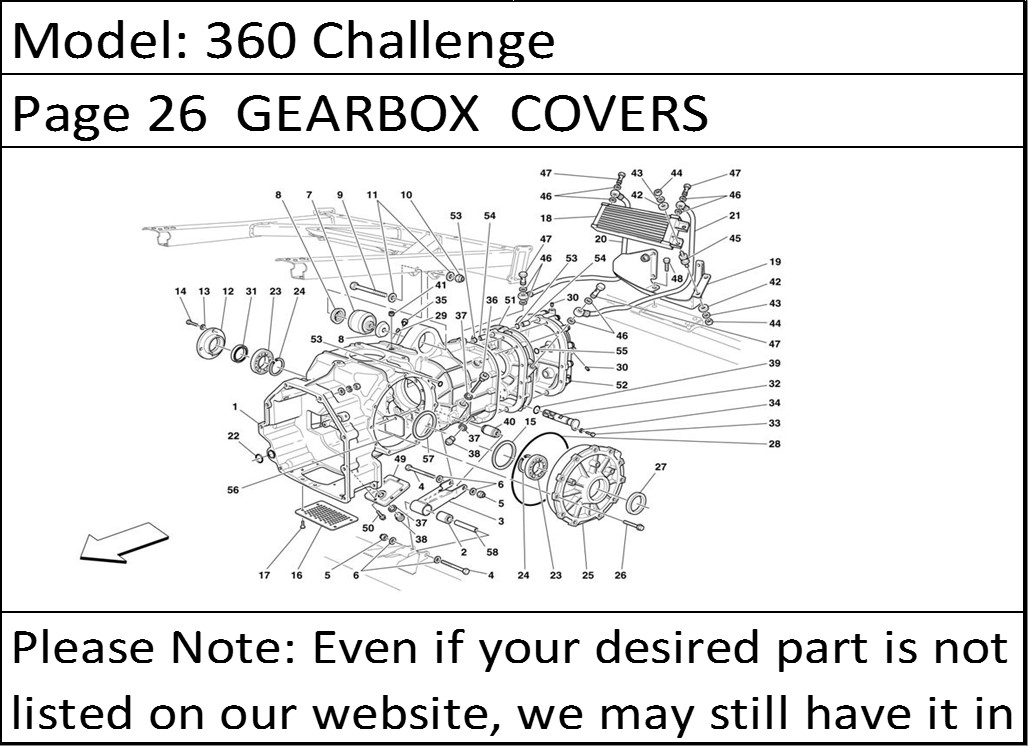

360 Challenge Page 26 GEARBOX COVERS
Product Description
360 Challenge Page 26 GEARBOX COVERS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 184775 | COMPLETE TRANSMISSION | 1 |
| 2 | 181755 | PAD | 1 |
| 3 | 174458 | SMALL LINK | 1 |
| 4 | 15541234 | SCREW | 2 |
| 5 | 148020 | NUT | 2 |
| 6 | 14496724 | WASHER | 4 |
| 7 | 186698 | RESILIENT BUSHING | 1 |
| 8 | 179559 | RETAINING WASHER | 2 |
| 9 | 11117134 | SCREW | 1 |
| 10 | 106004 | NUT | 1 |
| 11 | 14496824 | WASHER | 2 |
| 12 | 183981 | R.H. FLANGE FOR SHAFT | 1 |
| 13 | 11194377 | WASHER | 4 |
| 14 | 10902224 | SCREW | 4 |
| 15 | 185026 | RING -Thickness mm. 6,8 | 1 |
| 15 | 185027 | RING -Thickness mm. 6,4 -Possible fitting | 1 |
| 15 | 185028 | RING -Thickness mm. 6,0 -Possible fitting | 1 |
| 16 | 171701 | PROTECTION DRILLET PLATE | 1 |
| 17 | 111189 | SCREW | 4 |
| 18 | 181489 | OIL RADIATOR | 1 |
| 19 | 181426 | RADIATOR SUPPORT | 1 |
| 20 | 182915 | OIL DELIVERY TUBE | 1 |
| 21 | 182916 | OIL RETURN TUBE | 1 |
| 22 | 123236 | O.R. GASKET | 1 |
| 23 | 184995 | BALL BEARING | 2 |
| 24 | 184994 | FLEXIBLE RING | 2 |
| 25 | 171117 | DIFFERENTIAL COVER | 1 |
| 26 | 16287321 | SCREW | 11 |
| 27 | 181617 | L.H. OIL RING | 1 |
| 28 | 14468781 | GASKET | 1 |
| 29 | 14326050 | THREADED PLUG | 1 |
| 30 | 182106 | THREADED PLUG | 2 |
| 31 | 181618 | R.H. OIL RING | 1 |
| 32 | 182100 | GEAR BOX OIL FILTER | 1 |
| 33 | 182101 | SCREW | 1 |
| 34 | 182102 | WASHER | 1 |
| 35 | 182118 | OIL VENT | 1 |
| 36 | 182117 | OIL LEVEL ROD | 1 |
| 37 | 10263460 | GASKET | 3 |
| 38 | 183962 | PLUG | 2 |
| 39 | 182119 | O.R. GASKET | 1 |
| 40 | 183490 | PAD | 1 |
| 41 | 14324911 | PLUG | 1 |
| 42 | 12643724 | WASHER | 6 |
| 43 | 127494 | WASHER | 6 |
| 44 | 15896214 | NUT | 6 |
| 45 | 142202 | PAD | 3 |
| 46 | 145192 | GASKET | 8 |
| 47 | 153419 | UNION | 4 |
| 48 | 10902424 | SCREW | 4 |
| 49 | 171045 | LOWER COVER | 1 |
| 50 | 16286121 | SCREW | 6 |
| 51 | 173611 | PLATE | 1 |
| 52 | 181246 | REAR COVER | 1 |
| 53 | 14456981 | GASKET | 4 |
| 54 | 150957 | CENTERING BUSHING | 4 |
| 55 | 137192 | GASKET | 2 |
| 56 | 183986 | PLATE | 1 |
| 57 | 185034 | RING -Thickness mm. 2,60 -Possible fitting | 1 |
| 57 | 185029 | RING -Thickness mm. 3,30 | 1 |
| 57 | 185033 | RING -Thickness mm. 2,95 -Possible fitting | 1 |
| 58 | 181761 | SPACER | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
