360 Challenge Page 28 LAY SHAFT GEARS
Product Description
360 Challenge Page 28 LAY SHAFT GEARS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

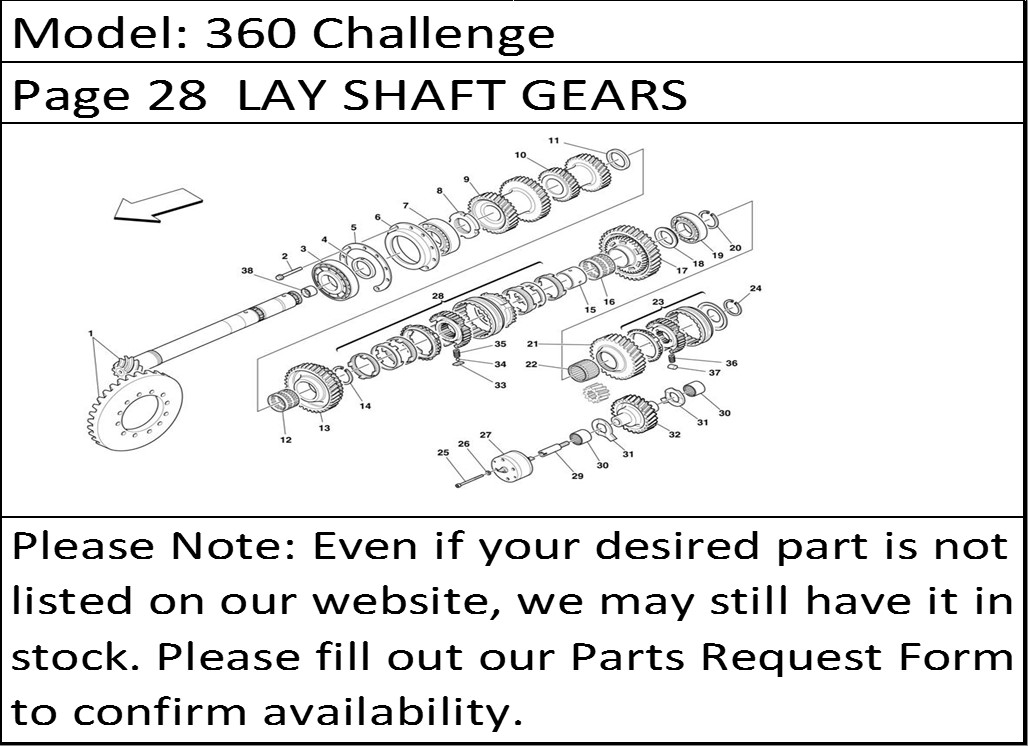

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 185169 | COMPETE BEVEL SET | 1 |
| 2 | 16287731 | SCREW | 9 |
| 3 | 185022 | ROLLER BEARING | 1 |
| 4 | 185045 | REGISTER RING -Thickness mm. 7,10 | 1 |
| 4 | 185047 | REGISTER RING -Thickness mm. 6,60 -Possible fitting | 1 |
| 4 | 185046 | REGISTER RING -Thickness mm. 6,85 -Possible fitting | 1 |
| 5 | 185042 | REGISTER RING -Thickness mm. 2,8 | 1 |
| 5 | 185043 | REGISTER RING -Thickness mm. 2,5 -Possible fitting | 1 |
| 5 | 185044 | REGISTER RING -Thickness mm. 2,2 -Possible fitting | 1 |
| 6 | 185020 | BEARING SUPPORT | 1 |
| 7 | 185021 | ROLLER BEARING | 1 |
| 8 | 185019 | RING NUT | 1 |
| 9 | 185018 | 3rd AND 4th DRIVEN GEAR | 1 |
| 10 | 185017 | 5th AND 6th DRIVEN GEAR | 1 |
| 11 | 185038 | RING -Thickness mm. 3,95 -Possible fitting | 1 |
| 11 | 183974 | RING -Thickness mm. 4,30 | 1 |
| 11 | 185039 | RING -Thickness mm. 3,60 -Possible fitting | 1 |
| 12 | 184014 | ROLLER CAGE | 1 |
| 13 | 183946 | PINION FOR 2nd GEAR | 1 |
| 14 | 185036 | FLEXIBLE RING -Thickness mm. 1,85 -Possible fitting | 1 |
| 14 | 185037 | FLEXIBLE RING -Thickness mm. 1,60 -Possible fitting | 1 |
| 14 | 183976 | FLEXIBLE RING -Thickness mm. 2,10 | 1 |
| 15 | 183971 | BUSHING | 1 |
| 16 | 184016 | ROLLER CAGE | 1 |
| 17 | 183945 | PINION FOR 1st GEAR | 1 |
| 18 | 185041 | RING -Thickness mm. 4,60 -Possible fitting | 1 |
| 18 | 185040 | RING -Thickness mm. 4,85 -Possible fitting | 1 |
| 18 | 183972 | RING -Thickness mm. 5,10 | 1 |
| 19 | 184020 | ROLLER BEARING | 1 |
| 20 | 184042 | FLEXIBLE RING | 1 |
| 21 | 183944 | REVERSE GEAR | 1 |
| 22 | 184018 | ROLLER CAGE | 1 |
| 23 | 185167 | REVERSE GEAR COMPLETE SYNCHRONIZER | 1 |
| 24 | 184041 | FLEXIBLE RING | 1 |
| 25 | 14303624 | SCREW | 4 |
| 26 | 10571379 | WASHER | 4 |
| 27 | 185049 | BEARBOX OIL PUMP | 1 |
| 28 | 185164 | 1st AND 2nd GEAR COMPLETE SYNCHRONIZER | 1 |
| 29 | 185050 | PIN | 1 |
| 30 | 184017 | ROLLER CASING | 2 |
| 31 | 183975 | RING | 2 |
| 32 | 183969 | IDLE GEAR FOR REVERSE | 1 |
| 33 | 184991 | PAD FOR SYNCHRONIZER | 3 |
| 34 | 184997 | BALL | 3 |
| 35 | 188320 | SPRING FOR BALL | 3 |
| 36 | 185015 | SPRING | 3 |
| 37 | 185016 | ROLL | 3 |
| 38 | 185170 | BUSHING | 1 |
