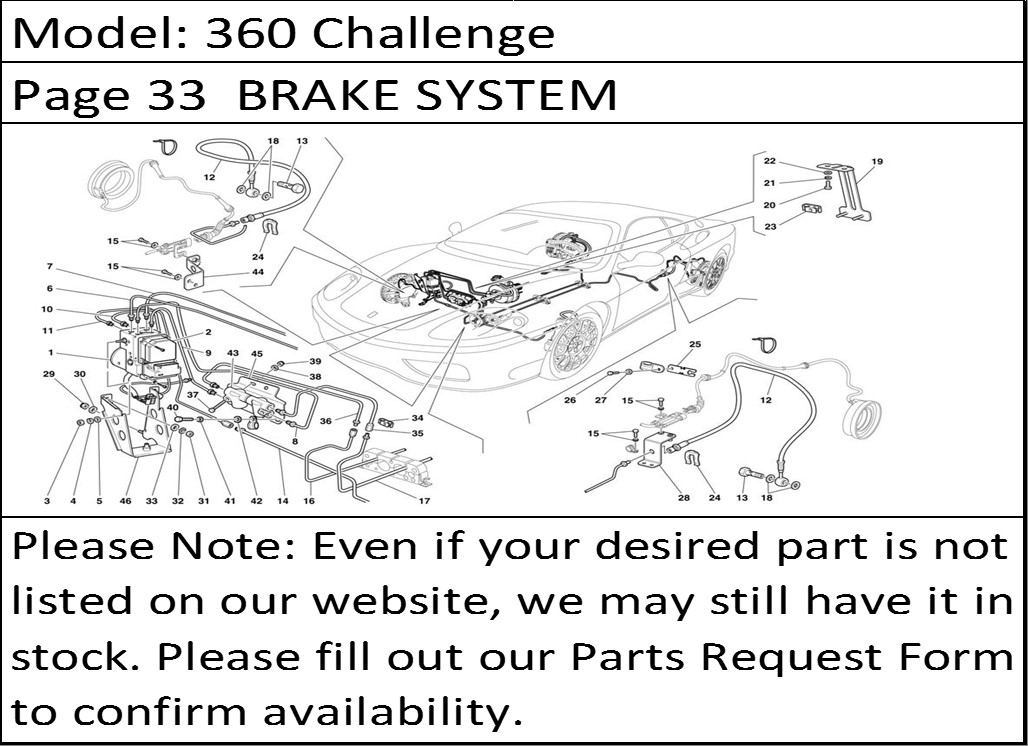

360 Challenge Page 33 BRAKE SYSTEM
Product Description
360 Challenge Page 33 BRAKE SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 168828 | ABS/ASR HYDRAULIC CONTROL STATION | 1 |
| 2 | 185147 | ABS/ASR/EBD ELECTRONIC CONTROL STATION | 1 |
| 3 | 16100814 | NUT | 2 |
| 4 | 127496 | WASHER | 2 |
| 5 | 12638524 | WASHER | 2 |
| 6 | 178427 | BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION | 1 |
| 7 | 178426 | BRAKE PIPE FROM REAR PUMP TO CONTROL STATION | 1 |
| 8 | 182919 | PIPE FROM CONTROL STATION TO L.H. BRAKING REGULATOR | 1 |
| 9 | 182917 | PIPE FROM CONTROL STATION TO R.H. BRAKING REGULATOR | 1 |
| 10 | 178463 | PIPE FROM CONTROL STATION TO INTERMEDIATE PIPE | 1 |
| 11 | 164308 | PIPE FROM CONTROL STATION TO R.H. FRONT BRAKE PIPE | 1 |
| 12 | 183100 | BRAKES HOSE | 4 |
| 13 | 113670 | UNION | 4 |
| 14 | 164309 | INTERMEDIATE PIPE | 1 |
| 15 | 11625724 | SCREW WITH WASHER | 8 |
| 16 | 180361 | PIPE TO R.H. REAR HOSE | 1 |
| 17 | 180362 | PIPE TO L.H. REAR HOSE | 1 |
| 18 | 10260160 | GASKET | 8 |
| 19 | 177945 | BRAKES PIPES FIXING BRACKET | 1 |
| 20 | 10902424 | SCREW | 2 |
| 21 | 127494 | WASHER | 2 |
| 22 | 14488624 | WASHER | 2 |
| 23 | 169476 | CLIP | 2 |
| 24 | 116374 | CLIP | 8 |
| 25 | 179236 | SUPPORT FOR CABLE | 2 |
| 26 | 10902024 | SCREW | 2 |
| 27 | 12605371 | WASHER | 2 |
| 28 | 178939 | SUPPORT | 2 |
| 29 | 101139 | NUT | 1 |
| 30 | 12638524 | WASHER | 1 |
| 31 | 16100814 | NUT | 2 |
| 32 | 127496 | WASHER | 2 |
| 33 | 12638524 | WASHER | 2 |
| 34 | 169476 | CLIP | 4 |
| 35 | 182920 | PIPE FROM BRAKING REGULATOR TO L.H. REAR JOINT | 1 |
| 36 | 182918 | PIPE FROM BRAKING REGULATOR TO R.H. REAR JOINT | 1 |
| 37 | 16044224 | SCREW | 2 |
| 38 | 14496524 | WASHER | 2 |
| 39 | 101139 | NUT | 2 |
| 40 | 10902424 | SCREW | 3 |
| 41 | 127494 | WASHER | 3 |
| 42 | 12643724 | WASHER | 3 |
| 43 | 172979 | BRAKING REGULATOR | 2 |
| 44 | 179237 | R.H. SUPPORT | 1 |
| 44 | 179096 | L.H. SUPPORT | 1 |
| 45 | 182549 | BRACKET FOR BRAKING REGULATOR SUPPORTING | 1 |
| 46 | 179412 | CONTROL STATION SUPPORTING BRACKET | 1 |
