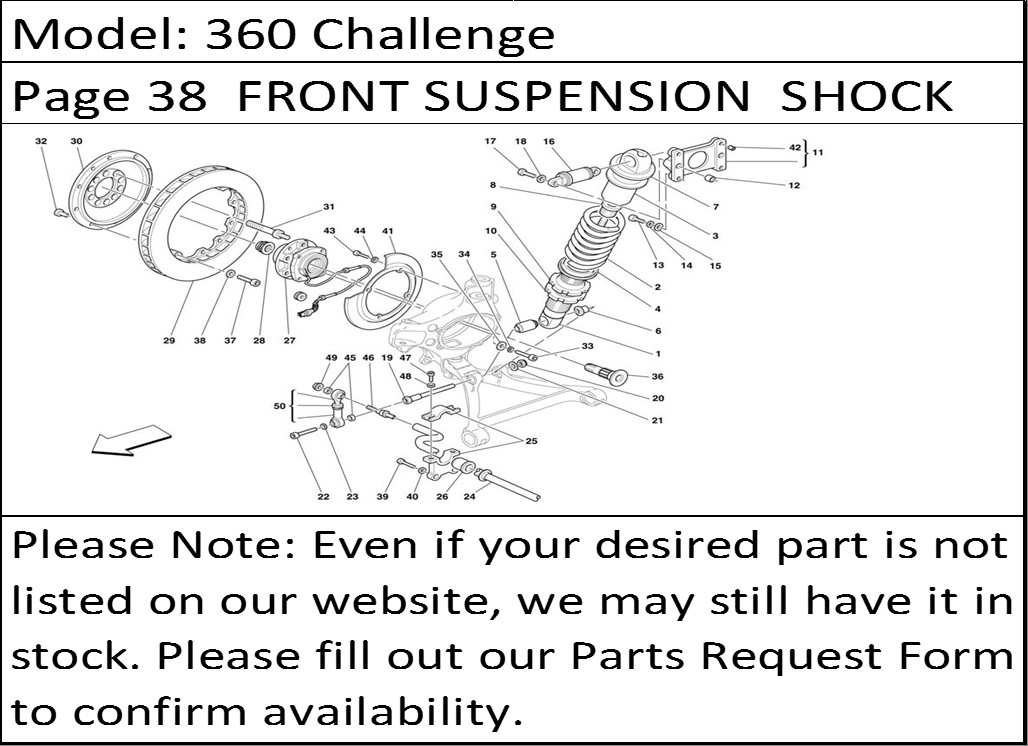

360 Challenge Page 38 FRONT SUSPENSION SHOCK ABSORBER AND BRAKE DISC
Product Description
360 Challenge Page 38 FRONT SUSPENSION SHOCK ABSORBER AND BRAKE DISC
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 181400 | FRONT SHOCK ABSORBER | 2 |
| 2 | 181419 | SPRING 0,0551 mm/Kg -As an alternative | 2 |
| 2 | 181420 | SPRING 0,0463 mm/Kg | 2 |
| 3 | 181409 | UPPER SPACER | 2 |
| 4 | 181408 | LOWER SPACER | 2 |
| 5 | 157630 | BALL JOINT | 2 |
| 6 | 177661 | SPACER | 2 |
| 7 | 174727 | SPRING RETAINING UPPER SPACER | 2 |
| 8 | 181404 | SHOCK ABSORBER PAD | 2 |
| 9 | 181410 | SPACER | 2 |
| 10 | 181412 | RING NUT | 2 |
| 11 | 174729 | SHOCK ABSORBER CONNECTION SUPPORT | 2 |
| 12 | 100013 | CENTERING DOWEL | 4 |
| 13 | 14306774 | SCREW | 8 |
| 14 | 127496 | WASHER | 8 |
| 15 | 14496524 | WASHER | 8 |
| 16 | 181346 | FLANBLOC | 2 |
| 17 | 11306934 | SCREW | 4 |
| 18 | 160092 | WASHER | 4 |
| 19 | 177660 | SCREW | 2 |
| 20 | 148020 | NUT | 2 |
| 21 | 12646921 | WASHER | 2 |
| 22 | 14307821 | SCREW | 2 |
| 23 | 160092 | WASHER | 2 |
| 24 | 179776 | FRONT ANTI-ROLL BAR -Diameter 21 mm -As an alternative | 1 |
| 24 | 170715 | FRONT ANTI-ROLL BAR -Diameter 19 mm | 1 |
| 25 | 181467 | ANTI-ROLL BAR SUPPORT | 2 |
| 26 | 181468 | BAR BUFFER -Diameter 19 mm | 2 |
| 26 | 181469 | BAR BUFFER -Diameter 21 mm -As an alternative | 2 |
| 27 | 179070 | HUB COMPLETE BEARING | 2 |
| 28 | 167259 | NUT | 2 |
| 29 | 182887 | L.H. FRONT BRAKE DISC | 1 |
| 29 | 181546 | R.H. FRONT BRAKE DISC | 1 |
| 30 | 183238 | FIXING DISC CLUTCH | 2 |
| 31 | 178043 | STUD | 10 |
| 32 | 183240 | BUSHING | 20 |
| 33 | 180591 | SCREW | 8 |
| 34 | 160092 | WASHER | 8 |
| 35 | 10732414 | WASHER | 8 |
| 36 | 180542 | BEARING FIXING PIN | 2 |
| 37 | 183239 | SCREW | 20 |
| 38 | 183241 | WASHER | 20 |
| 39 | 16043424 | SCREW | 4 |
| 40 | 178341 | WASHER | 4 |
| 41 | 181444 | RING FOR L.H. DISC COOLING | 1 |
| 41 | 181443 | RING FOR R.H. DISC COOLING | 1 |
| 42 | 13526170 | THREADED INSERT | 4 |
| 43 | 14304021 | SCREW | 8 |
| 44 | 12601174 | WASHER | 8 |
| 45 | 169092 | SPACER | 4 |
| 46 | 182505 | PIN | 2 |
| 47 | 14302821 | SCREW | 4 |
| 48 | 107618 | WASHER | 4 |
| 49 | 133216 | NUT | 2 |
| 50 | 182526 | COMPLETE SMALL LINK | 2 |
