360 Challenge Page 103 CENTRAL SIDE ELEMENTS AND PLATES
Product Description
360 Challenge Page 103 CENTRAL SIDE ELEMENTS AND PLATES
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

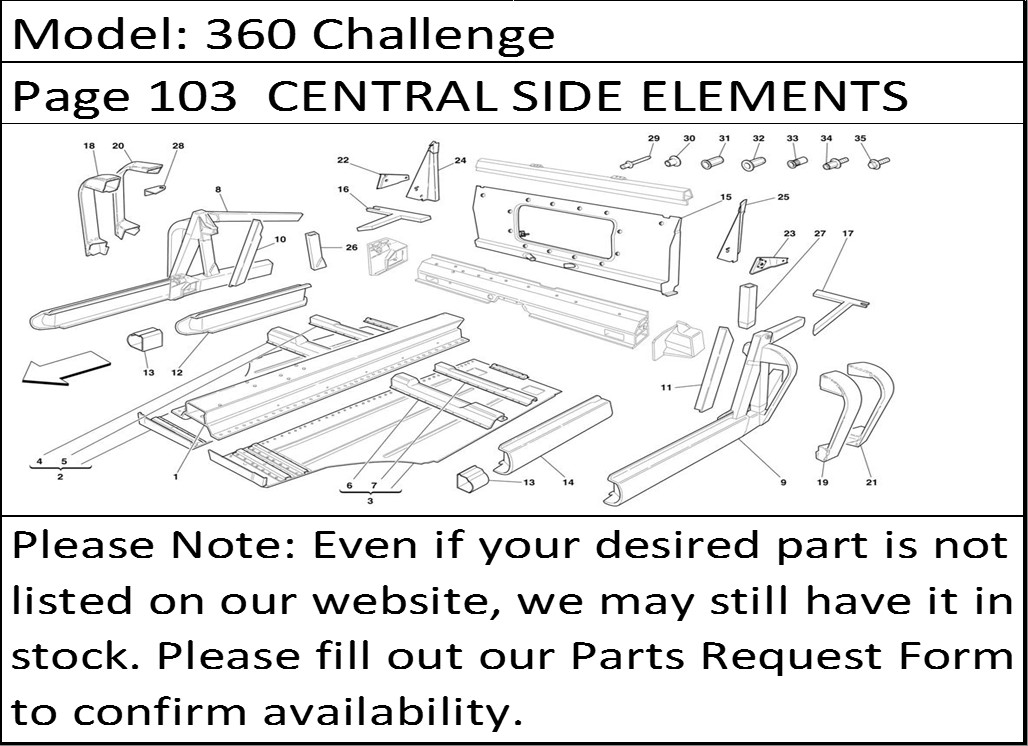

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 65942800 | COMPLETE TUNNEL | 1 |
| 2 | 65942600 | COMPLETE R.H. LATERAL HALF FLOOR | 1 |
| 3 | 66278600 | COMPLETE L.H. LATERAL HALF FLOOR | 1 |
| 4 | 166250 | R.H. FRONT CROSS MEMBER | 1 |
| 5 | 166251 | R.H. REAR CROSS MEMBER | 1 |
| 6 | 166150 | L.H. FRONT CROSS MEMBER | 1 |
| 7 | 185110 | L.H. REAR CROSS MEMBER | 1 |
| 8 | 65940900 | R.H. LATERAL REAR CROSSMEMBAR | 1 |
| 9 | 65941000 | L.H. LATERAL REAR CROSSMEMBAR | 1 |
| 10 | 166232 | R.H. REINFORCEMENT FRAME | 1 |
| 11 | 166132 | L.H. REINFORCEMENT FRAME | 1 |
| 12 | 65942400 | R.H. CROSSMEMBER | 1 |
| 13 | 181981 | CORE FOR REPAIR | |
| 14 | 65942500 | L.H. CROSSMEMBER | 1 |
| 15 | 166343 | COMPLETE REAR SHIELD | 1 |
| 16 | 64811000 | R.H. REAR FIXING FRAME | 1 |
| 17 | 64811100 | L.H. REAR FIXING FRAME | 1 |
| 18 | 65153400 | R.H. FRONT SIDE MOLDING | 1 |
| 19 | 65153500 | L.H. FRONT SIDE MOLDING | 1 |
| 20 | 65998100 | R.H. REAR SIDE MOLDING | 1 |
| 21 | 65998200 | L.H. REAR SIDE MOLDING | 1 |
| 22 | 64803900 | R.H. REWINDER FIXING REINFORCEMENT | 1 |
| 23 | 64804000 | L.H. REWINDER FIXING REINFORCEMENT | 1 |
| 24 | 64803500 | R.H. LATERAL MOLDING | 1 |
| 25 | 64803600 | L.H. LATERAL MOLDING | 1 |
| 26 | 66051200 | COMPLETE R.H. REAR PANEL | 1 |
| 27 | 66051100 | COMPLETE L.H. REAR PANEL | 1 |
| 28 | 177542 | BRACKET FOR OIL RADIATOR | 1 |
| 29 | 66292200 | STANDARD HEAD RIVET | |
| 29 | 66292300 | HALF REPOTTED HEAD RIVET | |
| 30 | 65133800 | RIVET L. 6,4 mm | |
| 31 | 15624411 | ESAGONAL RIVET M6 | |
| 31 | 15624511 | ESAGONAL RIVET M8 | |
| 31 | 15624311 | ESAGONAL RIVET M5 | |
| 31 | 15624211 | ESAGONAL RIVET M4 | |
| 31 | 15180411 | BLIND ESAGONAL RIVET | |
| 32 | 65151200 | RIVET M6 | |
| 33 | 65135000 | RIVET M8 | |
| 33 | 166101 | RIVET M4 | |
| 33 | 65930400 | RIVET M6 | |
| 33 | 65319800 | RIVET M8 BLIND | |
| 34 | 65065400 | STUD ESAGONAL HEAD M6 | |
| 35 | 13836971 | SCREW | |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
