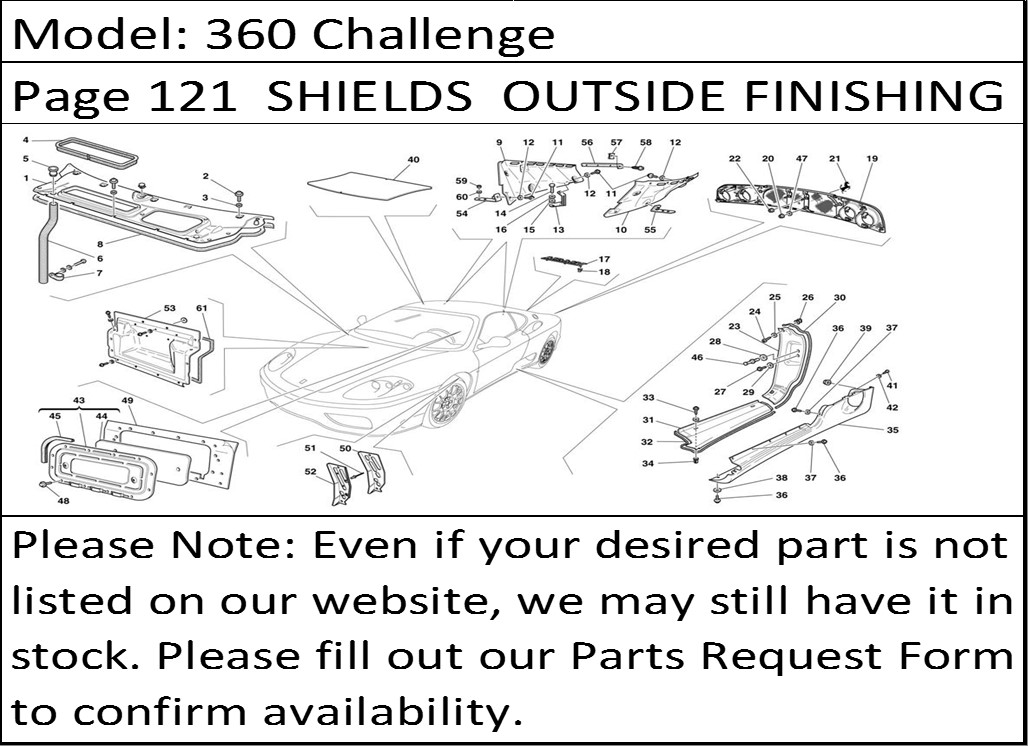

360 Challenge Page 121 SHIELDS OUTSIDE FINISHING
Product Description
360 Challenge Page 121 SHIELDS OUTSIDE FINISHING
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 65544100 | WINDSHIELD PLATE | 1 |
| 2 | 64830600 | SCREW | 9 |
| 3 | 65545900 | WASHER | 10 |
| 4 | 65750900 | GASKET | 1 |
| 5 | 65004900 | WATER EXHAUST TUBE | 2 |
| 6 | 65992600 | WATER EXHAUST TUBE | 2 |
| 7 | 10442190 | BRACKET WITH SHEATH | 2 |
| 8 | 65841800 | GASKET | 1 |
| 9 | 65889600 | R.H. PANEL | 1 |
| 10 | 65889700 | L.H. PANEL | 1 |
| 11 | 168133 | SCREW | 16 |
| 12 | 12624178 | WASHER | 16 |
| 13 | 65978700 | R.H. FIXING BRACKET | 1 |
| 13 | 65978800 | L.H. FIXING BRACKET | 1 |
| 14 | 16043624 | R.H. SIDE SCREW | 2 |
| 14 | 10902474 | L.H. SIDE SCREW | 2 |
| 15 | 12601274 | L.H. SIDE WASHER | 2 |
| 15 | 12638524 | R.H. SIDE WASHER | 2 |
| 16 | 11220079 | R.H. SIDE WASHER | 2 |
| 17 | 61025000 | FERRARI MARK | 1 |
| 18 | 60324506 | SAFETY CLIP | 2 |
| 19 | 65985900 | COMPLETE REAR SIDE COVERING | 1 |
| 20 | 14059211 | NUT | 12 |
| 21 | 64865600 | CAVALLINO RAMPANTE | 1 |
| 22 | 14084011 | NUT | 2 |
| 23 | 64858811 | R.H. STRIP COVER | 1 |
| 23 | 65536511 | L.H. STRIP COVER | 1 |
| 24 | 15688175 | SCREW | 4 |
| 25 | 12637878 | WASHER | 4 |
| 26 | 14201980 | BLOCK | 4 |
| 27 | 62940900 | SCREW | 2 |
| 28 | 63314400 | WASHER | 2 |
| 29 | 12647777 | WASHER | 2 |
| 30 | 64859000 | RUBBER PROFILE | 2 |
| 31 | 64018500 | R.H. KICK PLATE | 1 |
| 31 | 64018700 | L.H. KICK PLATE | 1 |
| 32 | 65858500 | RUBBER PROFILE | 2 |
| 33 | 15688875 | SCREW | 4 |
| 34 | 14115480 | BLOCK | 4 |
| 35 | 66099510 | L.H. UNDERDOOR COVERING | 1 |
| 35 | 66099410 | R.H. UNDERDOOR COVERING | 1 |
| 36 | 64830600 | SCREW | 30 |
| 37 | 12643778 | WASHER | 12 |
| 38 | 12640677 | WASHER | 18 |
| 39 | 13046114 | NUT | 10 |
| 40 | 63246711 | UPHOLSTERY | 1 |
| 41 | 15688075 | SCREW | 4 |
| 42 | 14496277 | WASHER | 4 |
| 43 | 65524600 | COMPLETE ENGINE INSPECTION PANEL | 1 |
| 44 | 65524500 | INSULATION | 1 |
| 45 | 65387300 | GASKET | 1 |
| 46 | 65305800 | STRIKER | 2 |
| 47 | 119365 | WASHER | 4 |
| 48 | 16297024 | SCREW | 12 |
| 49 | 65524300 | MOTOR COMPARTMENT REAR SIDE INSULATION | 1 |
| 50 | 65628900 | SLAB FOOT REST | 1 |
| 51 | 14642291 | RIVET | 5 |
| 52 | 65524100 | FOOT REST | 1 |
| 53 | 66127700 | TRUNK COMPARTMENT REAR PANEL | 1 |
| 54 | 181431 | FRONT SUPPORT | 2 |
| 55 | 181433 | REAR SUPPORT | 2 |
| 56 | 65979500 | R.H. PLATE | 1 |
| 56 | 65979600 | L.H. PLATE | 1 |
| 57 | 14370571 | CLIP | 8 |
| 58 | 15689675 | SCREW | 8 |
| 59 | 169180 | NUT | 8 |
| 60 | 12638177 | WASHER | 8 |
| 61 | 65998500 | GASKET | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
