365GT 2+2 Page 1 CRANKCASE
Product Description

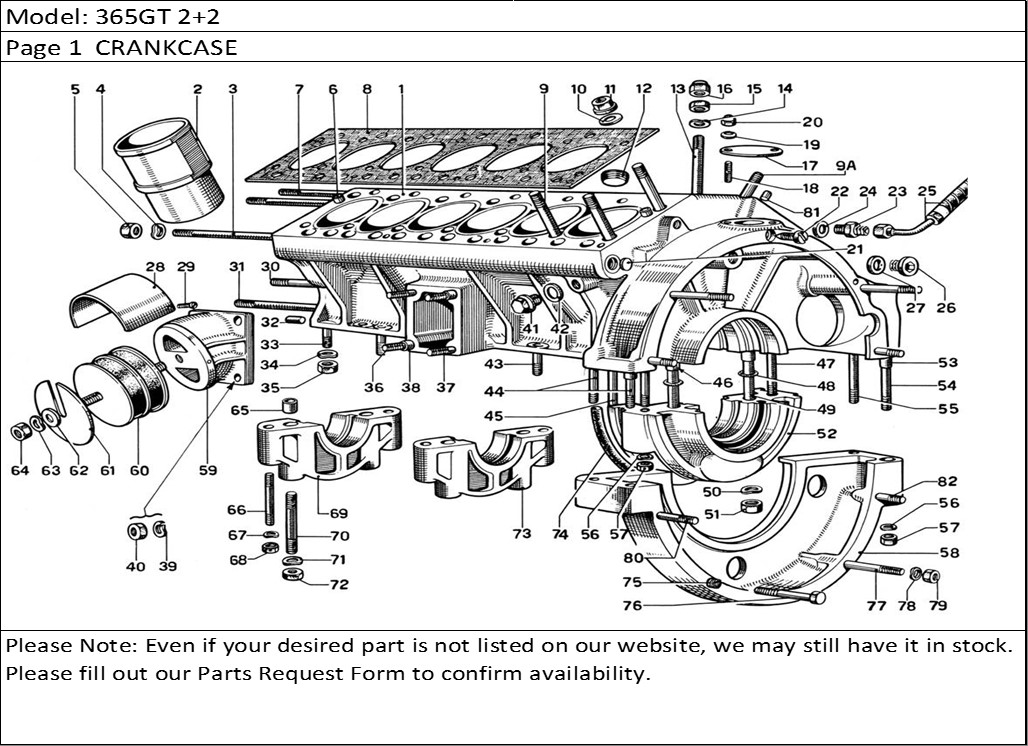

365GT 2+2 Page 1 CRANKCASE
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 100507 | Basamento | 1 |
| 2 | 100560 | 1 maggiorazione | 12 |
| 2 | 100560 | Canna cilindro (0 normale) | 12 |
| 2 | 100560 | 2 maggiorazione | 12 |
| 3 | P2 | THREADED STUD | 2 |
| 4 | REO 8 | Washer | 6 |
| 5 | 8 x 1 UNI | Nut | 6 |
| 6 | 94615 | CENTERING DOWEL | 3 |
| 7 | P2 | THREADED STUD | 1 |
| 8 | 100504 | Gasket or Seal | 2 |
| 9 | 100506 | Stud | 1 |
| 9 | 100505 | Stud | 27 |
| 10 | 95242 | Washer | 28 |
| 11 | 95241 | Nut | 28 |
| 12 | 95124 | Tappo conico | 3 |
| 13 | 95171 | Stud | 6 |
| 14 | REO 10 | Washer | 6 |
| 15 | 10x1,25UN1 | Nut | 1 |
| 16 | 110 x 1,25 | Nut | 5 |
| 17 | 10788 | Coperchietto ispezione | 1 |
| 18 | P1 | THREADED STUD | 2 |
| 19 | RC 6 | Washer | 2 |
| 20 | 106 MA | Nut | 2 |
| 21 | T e 20 | Expansion Plug | 4 |
| 22 | 10787 | Indice fasatura . | 1 |
| 23 | 93444 | UNION | 1 |
| 24 | 94385 | Gasket or Seal | 1 |
| 25 | 240042 | Complessivo tubo olio | 1 |
| 26 | 94858 | Plug | 2 |
| 27 | 94191 | GASKET | 2 |
| 28 | 100513 | Lamiera protezione tampone | 2 |
| 29 | 4P x 9,5 T | Screw | 4 |
| 30 | P2 | THREADED STUD | 1 |
| 31 | P2 | THREADED STUD | 1 |
| 32 | 94617 | Grano di centraggio . | 1 |
| 33 | P2 | Stud | 2 |
| 34 | REO 8 | Washer | 14 |
| 35 | 8x1UNI5588 | Nut | 14 |
| 36 | 95173 | Stud | 4 |
| 37 | 95174 | Stud | 4 |
| 38 | 95006 | CENTERING DOWEL | 4 |
| 39 | REG 10 | Washer | 8 |
| 40 | 10x1,25UN1 | Nut | 8 |
| 41 | 16 TF 1 | Tappo scarico acqua | 2 |
| 42 | 16 TR 2 | GASKET | 2 |
| 43 | P2 | Stud | 10 |
| 44 | P2 | Stud | 2 |
| 45 | P2 | Long Threaded Stud | 2 |
| 45 | - | pa al basamento | 2 |
| 46 | 94379 | CENTERING DOWEL | 2 |
| 47 | P6 | Stud | 2 |
| 48 | 114 | Seal | 4 |
| 49 | 95167 | Stud | 2 |
| 50 | REO 12 | Washer | 2 |
| 51 | 12 x 1,25 | Nut | 2 |
| 52 | 100211 | Support | 1 |
| 53 | SGC1 | Centering Dowel | 2 |
| 54 | P2 | THREADED STUD | 1 |
| 55 | 94850 | Stud | 1 |
| 56 | REO 8 | Washer | 6 |
| 57 | 8 x 1 UNI | Nut | 6 |
| 58 | 100318 | Flangia attacco frizione | 1 |
| 59 | 100383 | Zampa sostegno basamento | 2 |
| 60 | 10983 | Tampone sospensione motore | 2 |
| 61 | 100339 | Spessore per tampone | 4 |
| 62 | 93300 | WASHER | 2 |
| 63 | REG 10 | Washer | 2 |
| 64 | 10x1,25UN1 | Nut | 2 |
| 65 | 94379 | CENTERING DOWEL | 12 |
| 66 | P6 | Stud | 12 |
| 67 | REO 8 | Washer | 12 |
| 68 | 8 x1 uNl55 | Nut | 12 |
| 69 | 100028 | Support | 1 |
| 70 | 95166 | Stud | 12 |
| 71 | REO 12 | Washer | 12 |
| 72 | 12x1,25UN1 | Nut | 12 |
| 73 | 100027 | Support | 5 |
| 74 | 100026 | Guarnizioni gomma | 1 |
| 75 | BBF2 | Bussola filettata | 1 |
| 76 | 8 x 50 UNI | Bolt | 1 |
| 77 | P 2 | THREADED STUD | 3 |
| 78 | REO 8 | Ronde!la | 8 |
| 79 | 8 x 1 UNI5 | Nut | 8 |
| 80 | P 2 | THREADED STUD | 1 |
| 81 | 95079 | Grano per testa destra . | 1 |
| 82 | P 2 | Stud | 3 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
