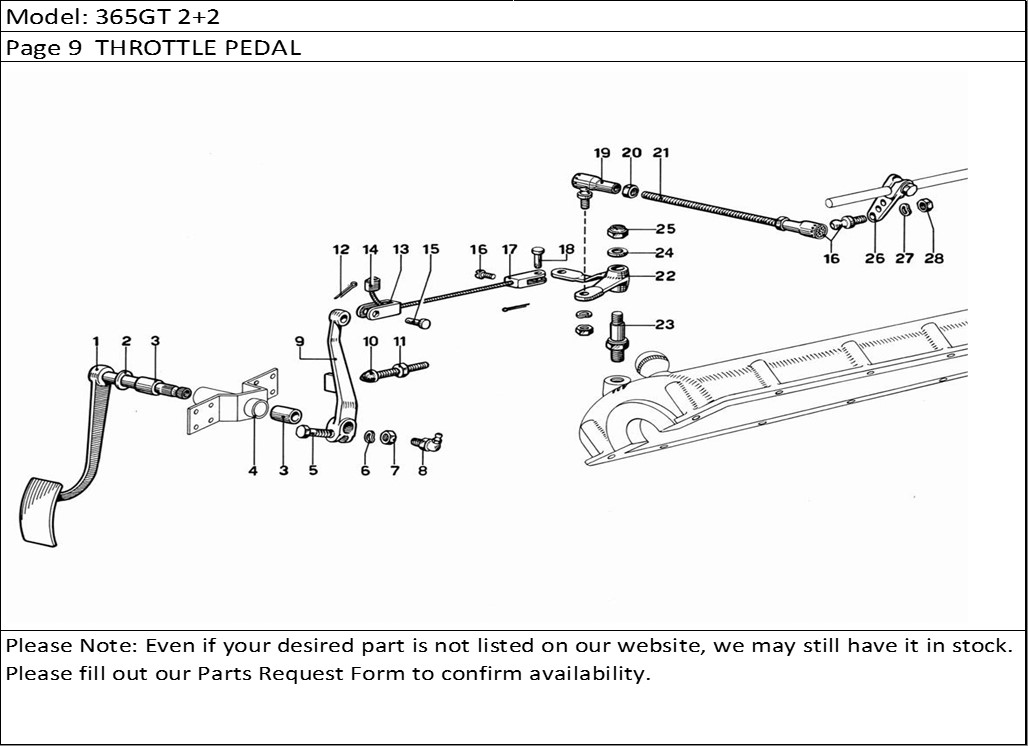

365GT 2+2 Page 9 THROTTLE PEDAL
Product Description
365GT 2+2 Page 9 THROTTLE PEDAL
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 19584 | Complessivo comando acceleratore | 1 |
| 1 | 19589 | Complessivo pedale | 1 |
| 2 | 12R2 | Washer | 1 |
| 3 | 18575 | CENTERING DOWEL | 2 |
| 4 | 19583 | Complessivo supporto | 1 |
| 5 | 6x25UNI573 | Bolt | 1 |
| 6 | REG6 | Washer | 1 |
| 7 | 6x1 UNI | Nut | 1 |
| 8 | F 8 fig. 3 | Ingrassatore | 1 |
| 9 | 180643 | Assieme leva esterna | 1 |
| 10 | 660344 | Screw | 1 |
| 11 | 8x1,25 UNI | Nut | 1 |
| 12 | C1 | Split Pin | 2 |
| 13 | 180546 | FORK | 1 |
| 14 | 180646 | Assieme cavo e manicotto . | 1 |
| 15 | 180547 | Pivot | 1 |
| 16 | 3VR4x8 | Screw | 1 |
| 17 | 18898 | FORK | 1 |
| 18 | 18902 | Pivot | 1 |
| 19 | 71801 | Giunto sferico completo | 2 |
| 20 | 6x1 UNI | Nut | 2 |
| 21 | 180636 | Tie Rod | 1 |
| 22 | 180635 | LEVER | 1 |
| 23 | 180634 | Pivot | 1 |
| 24 | REO10 | Washer | 1 |
| 25 | 108 MB | Nut | 1 |
| 26 | 180777 | LEVER | 1 |
| 27 | REG 6 | Washer | 2 |
| 28 | 6x1 UNI | Nut | 2 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
