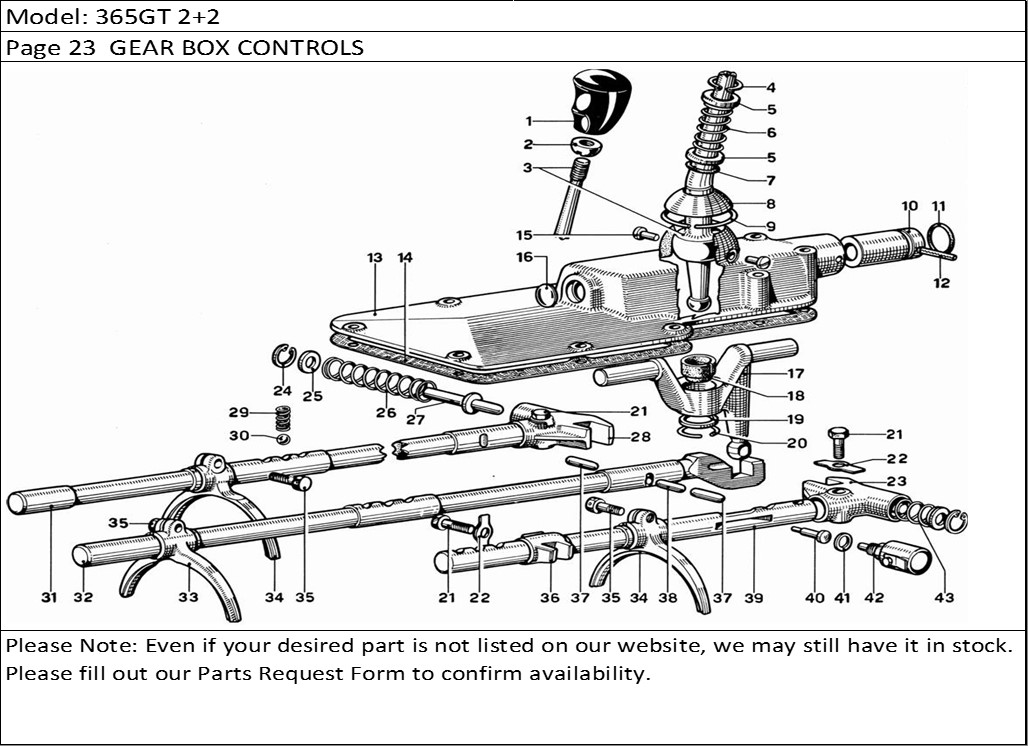

365GT 2+2 Page 23 GEAR BOX CONTROLS
Product Description
365GT 2+2 Page 23 GEAR BOX CONTROLS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 522433 | Pomello leva cambio | 1 |
| 2 | 53203 | Locknut | 1 |
| 3 | 520908 | LEVER | 1 |
| 4 | AA 14 e | Seeger Ring | 1 |
| 5 | 55457 | Astuccio per molla | 2 |
| 6 | 55455 | Spring | 1 |
| 7 | 117 | Ring | 1 |
| 8 | 55456 | Calotta mobile | 1 |
| 9 | 55473 | Seeger Ring | 1 |
| 10 | 521247 | Bush | 1 |
| 11 | 521492 | Sealing Ring | 1 |
| 12 | S. 3,5X35 | Pin | 1 |
| 13 | 521217 | Support | 1 |
| 14 | 521315 | GASKET | 1 |
| 15 | 55472 | Pivot | 2 |
| 16 | TE 18 | Expansion Plug | 1 |
| 17 | 521214 | Selettore marce | 1 |
| 18 | 521754 | Sede sferica | 1 |
| 19 | 521493 | Spacer | 1 |
| 20 | 521492 | I Anello elastico | 1 |
| 21 | 95176 | Bolt | 3 |
| 22 | 94854 | I Piastrine di sicurezza | 3 |
| 23 | 520830 | SELECTOR FORK 5? and reverse | 1 |
| 24 | AA 16 i | Seeger Ring | 2 |
| 25 | 520833 | Pastiglia | 2 |
| 26 | 520834 | Spring | 1 |
| 27 | 520832 | Pivot | 2 |
| 28 | 520831 | SELECTOR FORK 1? and 2? speed | 2 |
| 29 | 521256 | Spring | 3 |
| 30 | 93309 | Sfera da 5/16-RIV-90-142-010 | 1 |
| 31 | 522674 | Asta 1? e 2 velocit? | 1 |
| 32 | 522675 | Asta 3 e 4 velocit? | 1 |
| 33 | 521308 | FORK 3 and 4 speed | 1 |
| 34 | 521307 | FORK 1a 2 -5 and reverse. | 2 |
| 35 | 95180 | Bolt | 3 |
| 36 | 520828 | FORK | 1 |
| 37 | 53125 | Rullini arresto aste | 2 |
| 38 | 53126 | Rullino arresto aste | 1 |
| 39 | 522676 | Asta 5? velocit? e R.M. | 1 |
| 40 | 521250 | Pivot | 1 |
| 41 | 10GR2 | GASKET | 1 |
| 42 | 55488 | Interruttore per R.M. | 1 |
| 43 | 521069 | Spring | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
