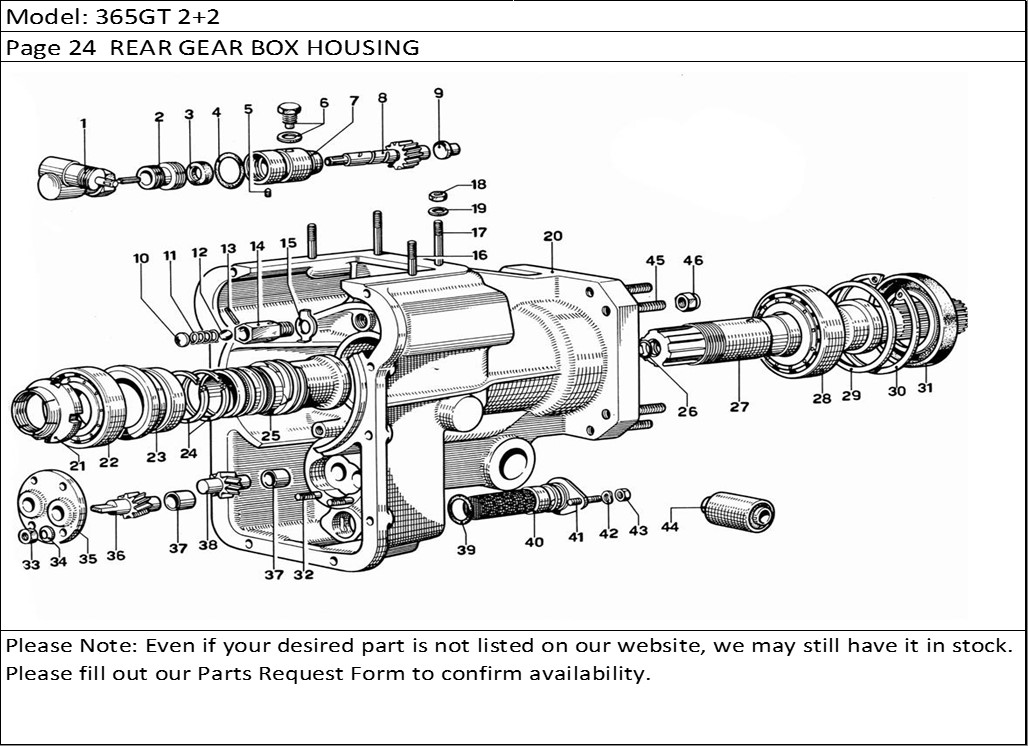

365GT 2+2 Page 24 REAR GEAR BOX HOUSING
Product Description
365GT 2+2 Page 24 REAR GEAR BOX HOUSING
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | R 1/1 50. | Rinvio ad angolo per conta Km. con gomme 200 x 15 V.R.X. | 1 |
| 2 | 520707 | Union | 1 |
| 3 | 10x19x7 | Seal | 1 |
| 4 | 4075 | Sealing Ring | 1 |
| 5 | 94942 | Grano filettato | 1 |
| 6 | 520709 | Bolt | 1 |
| 7 | 520849 | Corpo rinvio | 1 |
| 8 | 521329 | Pignone rapp. 8/34 | 1 |
| 9 | 520708 | Bottone reggispinta | 1 |
| 10 | 94770 | Washer | 1 |
| 11 | 55786 | Spring | 1 |
| 12 | 90.142.011 | Sfera 11/32 per valvola | 1 |
| 13 | 2 x 16 | Pin | 1 |
| 14 | 55785 | Corpo valvola | 1 |
| 15 | 93248 | PLATE | 1 |
| 16 | P1 | THREADED STUD | 1 |
| 17 | P1 | THREADED STUD | 2 |
| 18 | 6x1UNI5588 | Nut | 2 |
| 19 | REO 6 | Washer | 4 |
| 20 | 522664 | Carter posteriore | 4 |
| 21 | 522508 | Locking Ring Nut | 1 |
| 22 | 3 A 32 | Cuscinetto a sfere | 1 |
| 23 | 522665 | CENTERING DOWEL | 1 |
| 24 | 520803 | Seal | 2 |
| 25 | 522668 | I Vite senza fine | 1 |
| 26 | 112 | I Anello tenuta olio | 1 |
| 27 | 522667 | Albero uscita cambio | 1 |
| 28 | 0.20833333 | Cuscinetto a sfere | 1 |
| 29 | 522666 | I Distanziale | 1 |
| 30 | AA80 i | Seal | 1 |
| 31 | 5080 | Seal | 1 |
| 32 | Pi | THREADED STUD | 4 |
| 33 | 5x0,8UNI 5 | Nut | 4 |
| 34 | RC5 | Washer | 4 |
| 35 | 55342 | Cover | 1 |
| 36 | 55459 | DRIVING GEAR | 1 |
| 37 | 52453 | Bush | 2 |
| 38 | 52452 | DRIVEN GEAR | 1 |
| 39 | 4075 | Sealing Ring | 1 |
| 40 | 521224 | Complessivo filtro olio | 1 |
| 41 | P1 | THREADED STUD | 2 |
| 42 | REO 5 | Washer | 2 |
| 43 | 5x0,8UNI 5 | Nut | 2 |
| 44 | 88.114.241 | Silentbloc per tirante | 1 |
| 45 | 95287 | THREADED STUD | 8 |
| 46 | 10 X 1,25 | Nut | 8 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
