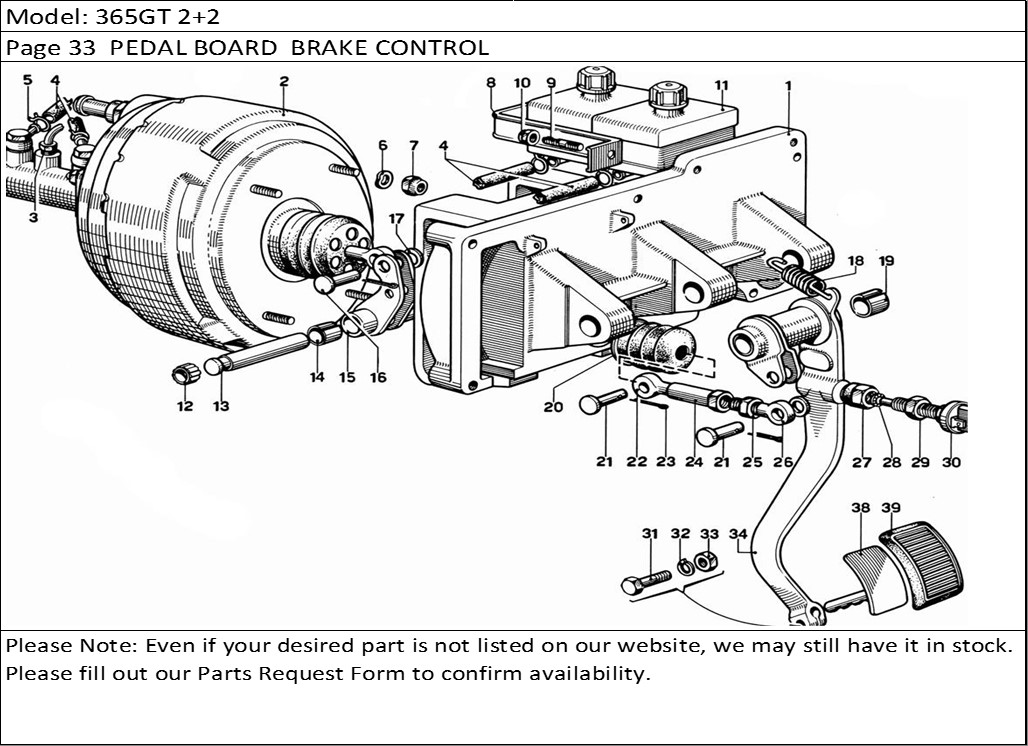

365GT 2+2 Page 33 PEDAL BOARD BRAKE CONTROL
Product Description
365GT 2+2 Page 33 PEDAL BOARD BRAKE CONTROL
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 1362 | Complessivo pedaliera | 1 |
| 1 | 660680 | Support | 1 |
| 2 | tipo MAST | Brake Servo Bonaldi in tandem | 1 |
| 3 | 680449 | Tubetto dalla pompa allapparecchio controllo pres sione freni Ant | 1 |
| 4 | 660197 | Tubo gomma dal serbatoioalia pompa | 2 |
| 5 | 94951 | Fascetta stringitubo | 4 |
| 6 | 12001 | Washer | 4 |
| 7 | 8X1.25108M | Nut | 4 |
| 8 | 660687 | Fascetta per serbatio olio | 1 |
| 9 | P1 | THREADED STUD | 2 |
| 10 | 106 MA | Nut | 2 |
| 11 | 660442 | Serbatoio olio per freni | 2 |
| 12 | BNI2X7 | Ring | 1 |
| 13 | 660333 | Pivot | 1 |
| 14 | 660347 | Bush | 2 |
| 15 | 660544 | Complessivo leva rinvio | 1 |
| 16 | 660574 | Pivot | 1 |
| 17 | 10R2 | Washer | 3 |
| 18 | 660343 | Spring | 1 |
| 19 | MB 1820 DU | Bush | 2 |
| 20 | 660340 | Soffietto parapolvere | 1 |
| 21 | 660169 | Pivot | 2 |
| 22 | 660575 | Tie Rod | 1 |
| 23 | C1 | Split Pin | 3 |
| 24 | 660395 | Manicotto per registro | 1 |
| 25 | 95285 | Controdado per manicotto | 1 |
| 26 | 660167 | Tie Rod | 1 |
| 27 | 660573 | Nut | 1 |
| 28 | 660525 | WASHER | 1 |
| 29 | 660524 | Nut | 1 |
| 30 | 660522 | Interruttore luci arresto | 1 |
| 31 | 95192 | Bolt | 2 |
| 32 | REG 8 | Washer | 2 |
| 33 | 8x1 UNI558 | Nut | 2 |
| 34 | 660636 | Assieme leva freno | 1 |
| 38 | 660734 | Assieme pedale freno | 1 |
| 39 | 660469 | Copertura pedale | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
