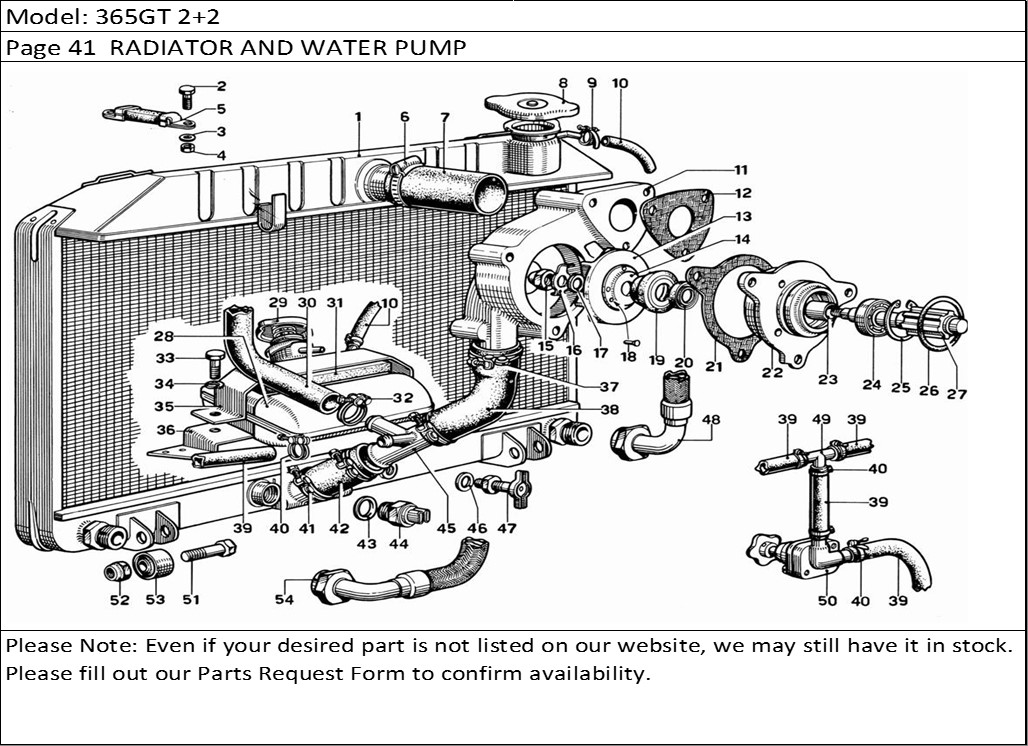

365GT 2+2 Page 41 RADIATOR AND WATER PUMP
Product Description
365GT 2+2 Page 41 RADIATOR AND WATER PUMP
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 800181 | Radiatore acqua | 1 |
| 2 | 6x1x16 UNI | Bolt | 4 |
| 3 | REG 6 | Washer | 4 |
| 4 | sxiuNl 558 | Nut | 4 |
| 5 | 20240 | Tie Rod | 2 |
| 6 | 95027 | Fascetta 212/S 38x54 | 2 |
| 7 | 95053 | Manicotto gomma | 1 |
| 8 | 252841 | Tappo per radiatore | 1 |
| 9 | 94938 | Fascetta a nastro | 2 |
| 10 | PRESS 07 | Tubo gomma dal radiatore alla nourice | 1 |
| 11 | 26679 | Corpo pompa acqua | 1 |
| 12 | 26715 | GASKET | 1 |
| 13 | 26681 | Girante pompa acqua | 1 |
| 14 | 26702 | Distanziale per girante | 1 |
| 15 | 92896 | Cap Nut | 1 |
| 15 | 26701 | Assieme girante | 1 |
| 16 | 92363 | PLATE | 1 |
| 17 | 93798 | Washer | 1 |
| 18 | R12 | Chiodo per distanziale | 1 |
| 19 | B 25343 | Seal | 1 |
| 20 | 1927/6 | Seal | 1 |
| 21 | 26617 | GASKET | 1 |
| 22 | 26680 | Flangia | 1 |
| 23 | 26683 | Spacer | 1 |
| 24 | 93457 | Cuscinetto a sfere | 1 |
| 25 | J 37 x 1,5 | Seeger Ring | 1 |
| 26 | 156 | Sealing Ring | 1 |
| 27 | 26682 | Alberino pompa | 1 |
| 28 | 252733 | Nourice per radiatore | 1 |
| 29 | 252733/A | Tappo per nourice | 1 |
| 30 | 26694 | Tubo per by-pass | 1 |
| 31 | 252733/D | Gomma soffice | 1 |
| 32 | TWO C2526 | Jubilee Clip | 2 |
| 33 | 8x30UNI574 | Bolt | 2 |
| 34 | REG 8 | Washer | 2 |
| 35 | 252733/C | Bracket / Support | 1 |
| 36 | 800138 | Bracket / Support | 1 |
| 37 | TIPO C45=4 | Jubilee Clip | 1 |
| 38 | 26693 | Tubo entrata acqua | 1 |
| 39 | SAFTA CAL | Tubo gomma per riscalda mento | 1 |
| 40 | TWO 1920 | Jubilee Clip | 4 |
| 41 | TWO C3941 | Jubilee Clip | 3 |
| 42 | 95053 | Manicotto uscita acqua | 1 |
| 43 | 94706 | GASKET | 1 |
| 44 | 65.8029.99 | Termocontatto 84-75 | 1 |
| 45 | 26692 | Canotto con raccordi | 1 |
| 46 | 252840/A | GASKET | 1 |
| 47 | 252840 | Rubinetto | 1 |
| 48 | 240265 | Complessivo tubo dallo scambiatore al filtro olio | 1 |
| 49 | 680025 | UNION 3-way | 1 |
| 50 | 400112 04 | Rubinetto sul tubo del riscaldamento | 1 |
| 51 | iaxso UNI5 | Bolt | 2 |
| 52 | 214 MB | Nut | 2 |
| 53 | 94678 | Silentbloc | 2 |
| 54 | 240368 | Complessivo tubo olio dal motore allo scambiatore | 1 |
| 54 | 800193 | Targhetta autoadesiva (con valvola termostati) | 1 |
| 54 | 800194 | Targhetta autoadesiva (senza valvola termostatica) | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
